Stock Adequate！Ready to ship
- 8 10/100/1000Mbps RJ45 ports
- With four PoE ports, transfers data and power on one single cable
- Working with IEEE 802.3af compliant PDs, expands home and office network
- Requires no configuration and installation
- 802.1p/DSCP QoS enable smooth latency-sensitive traffic
- PoE power up to 15.4W for each PoE port
- PoE power up to 55W for all PoE outputs
8x 10/100/1000Mbps RJ45, PoE, 16Gbps, 8K Mac Address, 53W, Grey
What This Product Does

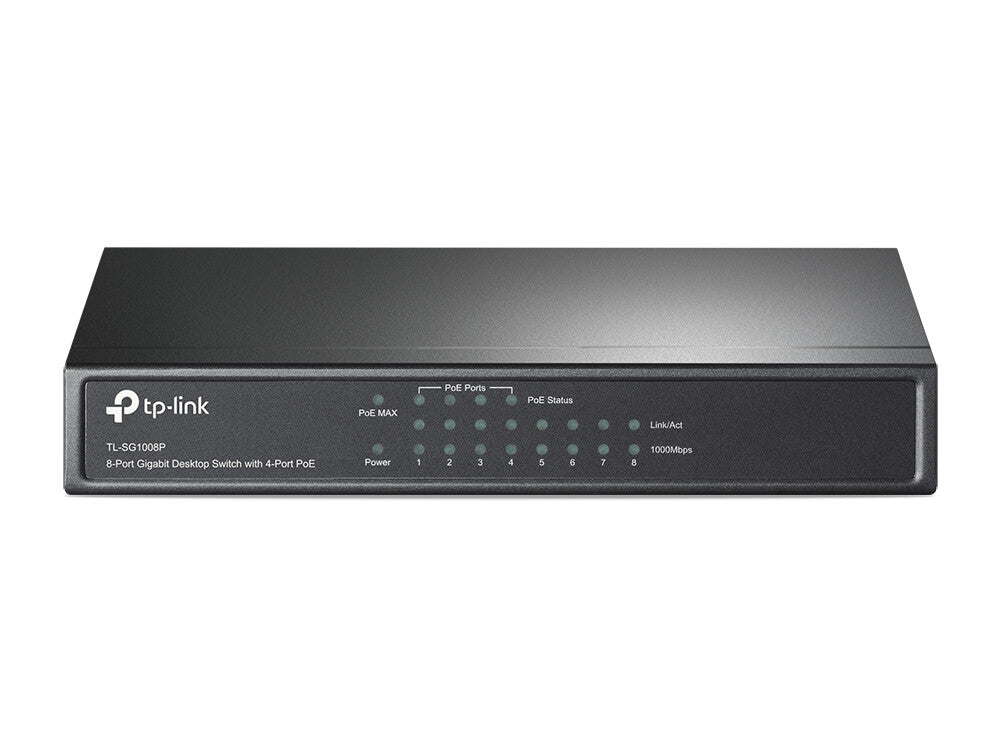

8-Port Gigabit Desktop Switch with 4-Port PoE provides the seamless network connection. It integrates 1000Mbps Gigabit Ethernet and 10/100Mbps Fast Ethernet network capabilities.
How This Product Works
4 of the 8 Auto-Negotiation RJ45 ports (port-1 to port-4) of the switch support Power over Ethernet (PoE) function. These PoE ports can automatically detect and supply power with those IEEE 802.3af compliant Powered Devices (PDs). In this situation, the electrical power is transmitted along with data in one single cable allowing you to expand your network where there are no power lines or outlets, where you wish to fix devices such as APs, IP Cameras or IP Phones, etc.
Overload Arrangement
TL-SG1008P has the priority function which will help protect the system when the system power is overloaded. If all PoE PDs power consumption is >= 53W, a priority will be arranged among the PoE ports, then the system will cut off the power of the lowest-priority port.
Port Priority Function
Priority (port-1>port-2>port-3>port-4): This function will help protect the system if the system power becomes overloaded. For example, Port 1, 2 and 4 are using 15.4w (maximum power per port is 15.4W), the system power is 46.2w in total (PoE max LED is red ). If there is an additional PD inserted to Port 3 with 10w then the system will cut off Port 4 to protect the system, this means Port 1, 2 will use 15.4w, and Port3 will use 10w, and no power will be supplied to Port 4.
Easy To Use
TL-SG1008P is easy to install and use. It requires no configuration and installation. With desktop design, outstanding performance and quality, the TP-LINK TL-SG1008P 8-Port Gigabit Desktop Switch with 4-Port PoE is a great selection for expanding your home or office network.
| Management features |
|---|
| Switch type |
Unmanaged |
| Ports & interfaces |
|---|
| Basic switching RJ-45 Ethernet ports quantity |
8 |
| Basic switching RJ-45 Ethernet ports type |
Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity |
8 |
| Fiber optic connector |
LuxCis |
| Compatible memory cards |
MMC Mobile |
| Power connector |
DC-in jack |
| Network |
|---|
| Networking standards |
IEEE 802.11j |
| 10G support |
No |
| Copper ethernet cabling technology |
100BASE-T |
| Cable types supported |
Cat6a |
| Full duplex |
Yes |
| Ethernet LAN data rates |
1000 Mbit/s |
| Auto MDI/MDI-X |
Yes |
| Flow control support |
Yes |
| Virtual LAN features |
IP subnet–based VLAN |
| VLAN mapping type |
2:2 VLAN Mapping |
| Optical fiber |
|---|
| Fiber ethernet cabling technology |
40GBASE-LR4 |
| Data transmission |
|---|
| MAC address table |
4800 entries |
| Switching capacity |
16 Gbit/s |
| Store-and-forward |
Yes |
| Security |
|---|
| DHCP features |
DHCPv6 client |
| MAC address entries |
Blackhole MAC address entries |
| Queue scheduling algorithms |
SP |
| Authentication type |
HWTACACS |
| Authentication |
Auto VLAN |
| Security algorithms |
HTTPS |
| Protocols |
|---|
| Routing protocols |
IP |
| IPv4 & IPv6 features |
IPv6 Telnet |
| Design |
|---|
| Rack mounting |
No |
| Product colour |
Hazelnut |
| Housing material |
Polymer |
| LED indicators |
Error |
| Airflow direction |
Back-to-front airflow |
| Power |
|---|
| Power supply included |
Yes |
| Number of power supply units |
1 |
| DC input voltage |
48 V |
| Input current |
1.25 A |
| Power consumption (typical) |
53 W |
| Power over Ethernet (PoE) |
|---|
| Power over Ethernet (PoE) |
Yes |
| Power over Ethernet (PoE) type supported |
Active PoE |
| Power over Ethernet (PoE) ports quantity |
4 |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
-40 - 70 °C |
| Operating relative humidity (H-H) |
10 - 90% |
| Storage relative humidity (H-H) |
5 - 90% |
| Weight & dimensions |
|---|
| Width |
171 mm |
| Depth |
98 mm |
| Height |
27 mm |
| Packaging content |
|---|
| Cables included |
AC |
| User guide |
Yes |
| Packaging data |
|---|
| Package type |
Box |
| Sustainability |
|---|
| Sustainability certificates |
ENERGY STAR |
| Certificates |
|---|
| Certification |
CE, FCC, RoHS |
| Logistics data |
|---|
| Harmonized System (HS) code |
85176990 |
