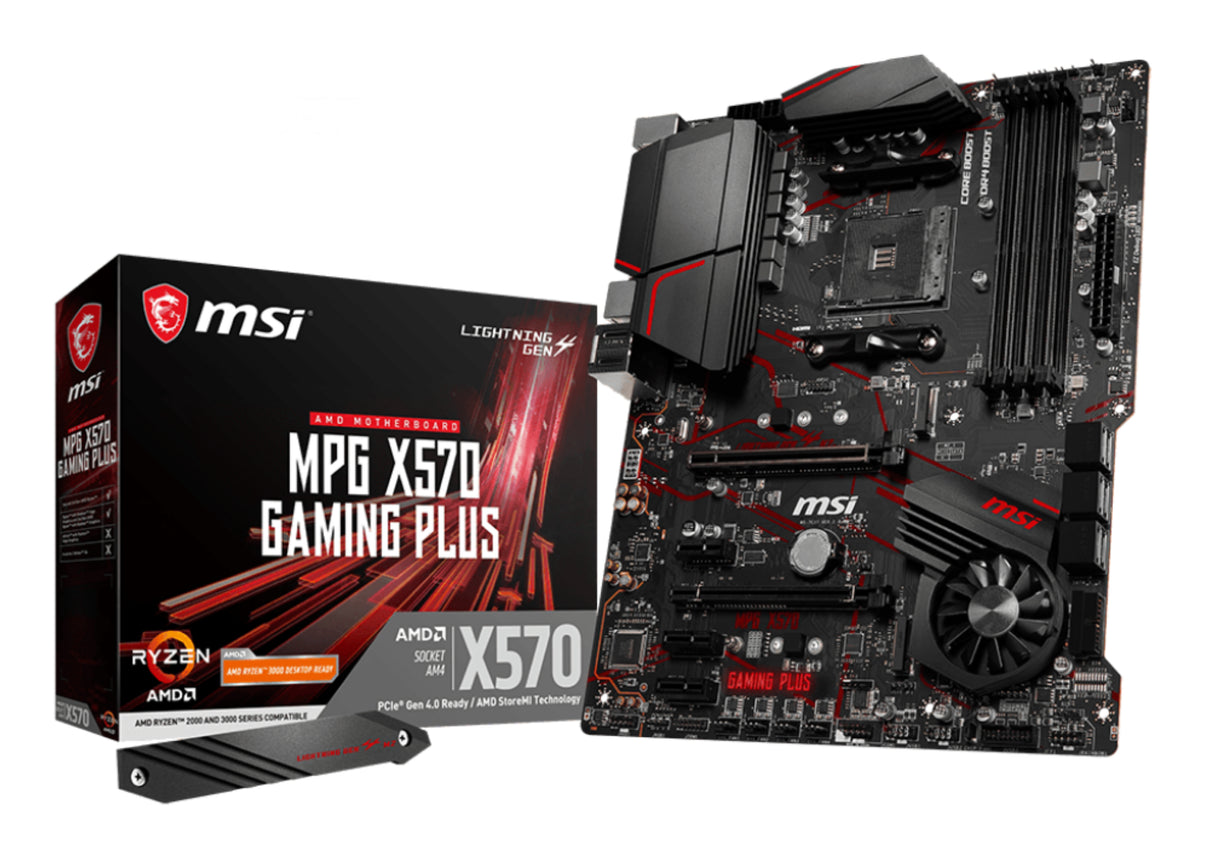

MSI MPG X570 Gaming Plus AMD X570 Socket AM4 ATX

• Supports Supports 2nd and 3rd Gen AMD Ryzen™ / Ryzen™ with Radeon™ Vega Graphics Desktop Processors for AM4 socket
• Supports DDR4 Memory
• Lightning Fast Game experience: PCIe 4.0, Lightning Gen4 x4 M.2 with M.2 Shield Frozr accessory, StoreMI, AMD Turbo USB 3.2 GEN2
• Frozr Heatsink Design: Designed with the patented fan and double ball bearings to provide the best performance for enthusiast gamers and prosumers
• Set Core Power Free: Extended Heatsink Design, Core Boost, Digital PWM IC, 8+4 pin CPU power connector, Game Boost, DDR4 Boost
• MYSTIC LIGHT: 16.8 million colors / 29 effects controlled in one click. MYSTIC LIGHT EXTENSION supports both RGB and RAINBOW LED strip
• AUDIO BOOST 4: Reward your ears with studio grade sound quality for the most immersive gaming experience
• Dragon Center: A brand new software which integrates all MSI tools like GAME MODE, VOICE BOOST, LIVE UPDATE with user friendly user interface

---

MPG X570 Gaming Plus, AMD X570, AM4, 4x DDR4, PCIe 4.0/3.0 x16, PCIe 3.0 x1, HDMI, USB 3.2, LAN, S/PDIF, ATX, 304x243 mm

---

Satisfying gamers with what they really need, MPG X570 GAMING PLUS is equipped with Extended Heatsink Design, Frozr Heatsink Design, Core boost, Lightning Gen4 M.2, M.2 Shield Frozr accessory, Turbo USB and MSI latest Dragon Center

Frozr Heatsink Design
Designed with the patented fan and double ball bearings to provide best performance for enthusiast gamers and prosumers.

Core Boost
With premium layout and fully digital power design to support more cores and provide better performance.

Extended Heatsink Design
MSI extended PWM and enhanced circuit design ensures even high-end processors to run in full speed.

Lightning Gen4 solution
The latest Gen4 PCI-E and M.2 solution with up to 64GB/s bandwidth for maximum transfer speed.

M.2 Shield FROZR
M.2 thermal accessory. Keeps M.2 SSDs safe while preventing throttling, making them run faster.

DDR4 Boost
Advanced technology to deliver pure data signals for the best gaming performance and stability.

Audio Boost 4
Isolated audio with a high quality audio processor for the most immersive gaming experience.

Flash BIOS Button
Simply use a USB key to flash any BIOS within seconds, without installing a CPU, memory or graphics card.

---

Processor
Maximum number of SMP processors	1
Compatible processor series	AMD Ryzen 2000 Series, AMD Ryzen 3000 Series
Processor socket	Socket AM4
Processor manufacturer	AMD

Memory
Unbuffered memory	Yes
Maximum internal memory	128 GB
Supported memory clock speeds	1866,2133,2400,2666 MHz
ECC сompatibility	ECC & Non-ECC
Memory channels	Dual-channel
Memory slots type	DIMM
Number of memory slots	4
Supported memory types	DDR4-SDRAM

Storage controllers
RAID levels	0, 1, 10
Supported storage drive interfaces	SATA III

Graphics
Maximum resolution	4096 x 2160 pixels
Parallel processing technology support	2-Way CrossFireX

Internal I/O
RGB LED pin header	Yes
Serial port headers	1
TPM connector	Yes
12V power connector	Yes
Chassis intrusion connector	Yes
Number of chassis fan connectors	4
CPU fan connector	Yes
ATX Power connector (24-pin)	Yes
Front panel connector	Yes
Front panel audio connector	Yes
Number of SATA III connectors	6
USB 3.2 Gen 1 (3.1 Gen 1) connectors	2
USB 2.0 connectors	2

Rear panel I/O ports
Digital audio optical out	1
S/PDIF out port	Yes
HDMI version	1.4
HDMI ports quantity	1
PS/2 ports quantity	1
Ethernet LAN (RJ-45) ports	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	3
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 2.0 ports quantity	2

Network
Wi-Fi	No
LAN controller	Realtek RTL8111H
Ethernet interface type	Gigabit Ethernet
Ethernet LAN	Yes

Features
Windows operating systems supported	Windows 10 Education x64, Windows 10 Enterprise x64, Windows 10 Home x64, Windows 10 Pro x64, Windows 10 x64
Number of mounting holes	9
Audio output channels	7.1 channels
Audio chip	Realtek ALC1220
Motherboard chipset	AMD X570
Motherboard chipset family	AMD
Motherboard form factor	ATX
Component for	PC

Expansion slots
Number of M.2 (M) slots	2
PCI Express x1 (Gen 3.x) slots	3

BIOS
Clear CMOS jumper	Yes

Packaging data
Package weight	1.48 kg
Package height	66 mm
Package depth	270 mm
Package width	348 mm

Logistics data
Harmonized System (HS) code	84733020

Weight & dimensions
Depth	243 mm
Width	304 mm

Packaging content
Drivers included	Yes
Cables included	SATA

Other features
Quick installation guide	Yes

---
