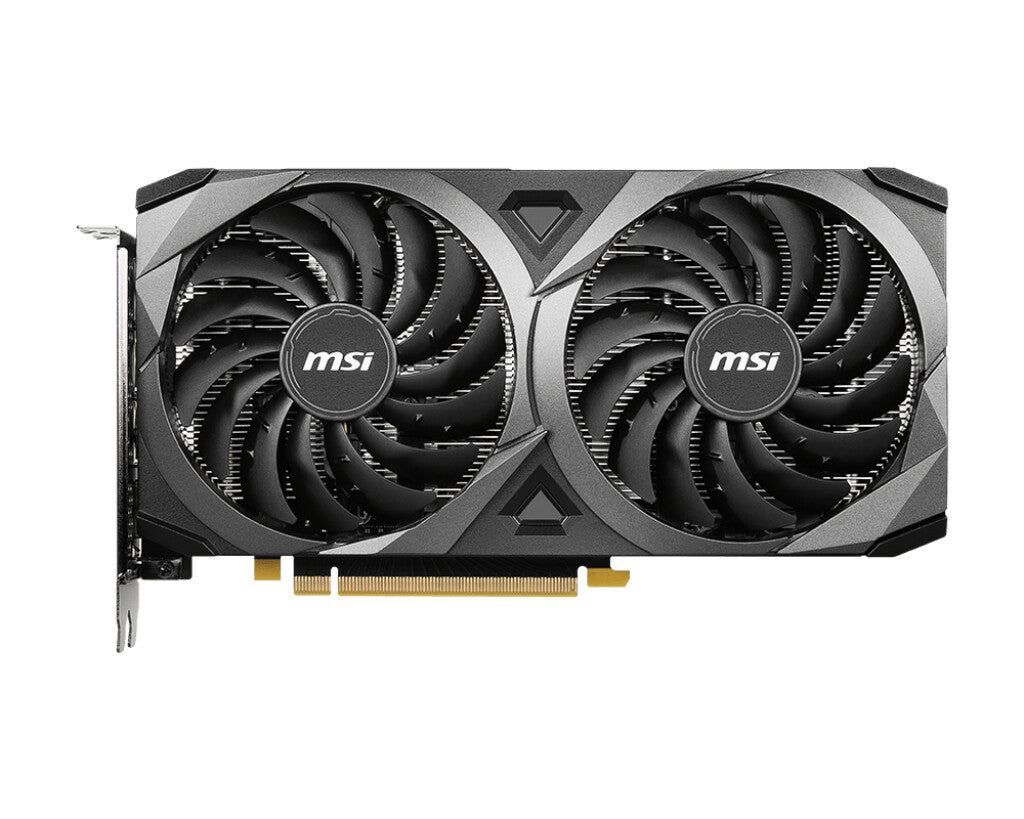

MSI VENTUS GeForce RTX 3060 2X 8G OC NVIDIA 8 GB GDDR6

• NVIDIA GeForce RTX 3060 8 GB GDDR6
• 7680 x 4320 pixels 128 bit PCI Express x4
• HDMI ports quantity: 1 DisplayPorts quantity: 3
• DirectX version: 12 Ultimate OpenGL version: 4.6
• 170 W 1x 8-pin

---

NVIDIA GeForce RTX 3060, 8GB GDDR6, 128 bit, PCI Express x4, 1 x HDMI (2.1), 3 x DP (1.4a), CUDA, DirectX 12 Ultimate, OpenGL 4.6, VR, 170W

---

The GeForce RTX™ 3060 lets you take on the latest games using the power of Ampere—NVIDIA's 2nd generation RTX architecture. Get incredible performance with enhanced Ray Tracing Cores and Tensor Cores, new streaming multiprocessors, and high-speed G6 memory.

Dual Fan Thermal Design
TORX Fan 3.0: The award-winning MSI TORX Fan 3.0 design creates high static pressure and pushes the limits of thermal performance.

Afterburner
Take full control with the most recognized and widely used graphics card overclocking software in the world.

MSI Center
The exclusive MSI Center software lets you monitor, tweak and optimize MSI products in real-time.

---

Processor
Processor boost clock speed	1807 MHz
CUDA cores	3584
CUDA	Yes
Maximum resolution	7680 x 4320 pixels
Graphics processor	GeForce RTX 3060
Graphics processor family	NVIDIA

Memory
Memory bandwidth (max)	15 GB/s
Memory bus	128 bit
Graphics card memory type	GDDR6
Discrete graphics card memory	8 GB

Ports & interfaces
DisplayPort version	1.4a
HDMI version	2.1
DisplayPorts quantity	3
HDMI ports quantity	1
Interface type	PCI Express x4

Performance
NVIDIA G-SYNC	Yes
HDCP	Yes
Virtual Reality (VR) ready	Yes
OpenGL version	4.6
Shader model version	No
DirectX version	12 Ultimate
TV tuner integrated	No

Design
Number of fans	2 fan(s)
Cooling technology	MSI TORX Fan 3.0
Cooling type	Active

Power
Power consumption (typical)	170 W
Supplementary power connectors	1x 8-pin
Minimum system power supply	550 W

Weight & dimensions
Height	124 mm
Depth	42 mm
Length	235 mm
Weight	675 g

Packaging data
Package type	Box
Package weight	1.03 kg

General
Product family	VENTUS

---
