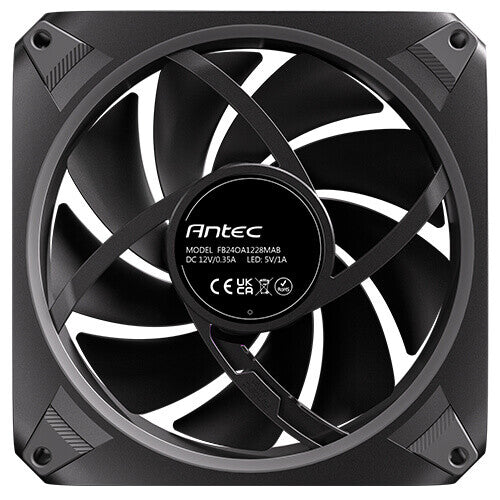

Antec Orbit 120 ARGB FAN Computer case 12 cm Black

• Dual Ring Design
• 9 Fan Blade design
• 2000RPM PQ CURVE
• Vibration-Absorbing & Anti-Noise Pads

---

ARGB, FDB, 2000 rpm, 72 cfm, 2.06 mmHâ‚‚O, 31 dB, 50000 h, 3-pin LED, 12 V, 0.35 A, 120 x 120 x 28 mm

---

Extreme Lighting Effects
The front and rear covers of the fan feature a curved surface design. Combined with the infinity mirror effect at the center of the blades, it evokes the image of a miniature interstellar portal like a wormhole.

Intelligent PWM Control
With intelligent fan control, the system ensures optimal cooling under high loads and complete silence at low loads. When PWM duty cycle drops below 6% in standby mode, the fan automatically stops through chip-based regulation, achieving ultra-silent operation.

28mm Thickness for Enhanced Performance
Increasing the thickness to 28mm widens the contact surface and increases the air inlet area between the fan and the chassis, delivering improved airflow.

9 Fan Blade design
The 9-blade design increases airflow, providing better cooling performance.

Fluid Dynamic Bearing forLonger Life and Reduced Noise
FDB bearing achieves optimal longevity while also enhancing anti-vibration, ensuring quieter and more stable operation.

Vibration-Absorbing & Anti-Noise Pads
Equipped with 8 rubber pads, effectively absorbing vibrations and minimizing noise. Also features diagonal patterns, ensuring a cohesive overall design.

---

Performance
Operating temperature (T-T)	0 - 40 °C
Fan's mean time to failure (MTTF)	50000 h
Fan speed (min)	200 RPM
Fan speed (max)	2000 RPM
Fan noise level (max)	31 dB
Fan noise level (min)	18 dB
Bearing type	Fluid Dynamic Bearing (FDB)
Maximum air pressure	2.06 mmH2O
Minimum air pressure	0.02 mmH2O
Minimum airflow (imperial)	66.72 cfm
Fan diameter	12 cm
Type	Fan
Suitable location	Computer case

Design
Fan connector	3-pin
LED connector type	3-pin
Product colour	Black

Power
LED voltage	5 V
Fan current	0.35 A
Rated voltage	12 V
Voltage	6 - 13.2 V

Weight & dimensions
Fan dimensions (W x D x H)	120 x 120 x 28 mm

Technical details
Warranty period	3 year(s)
