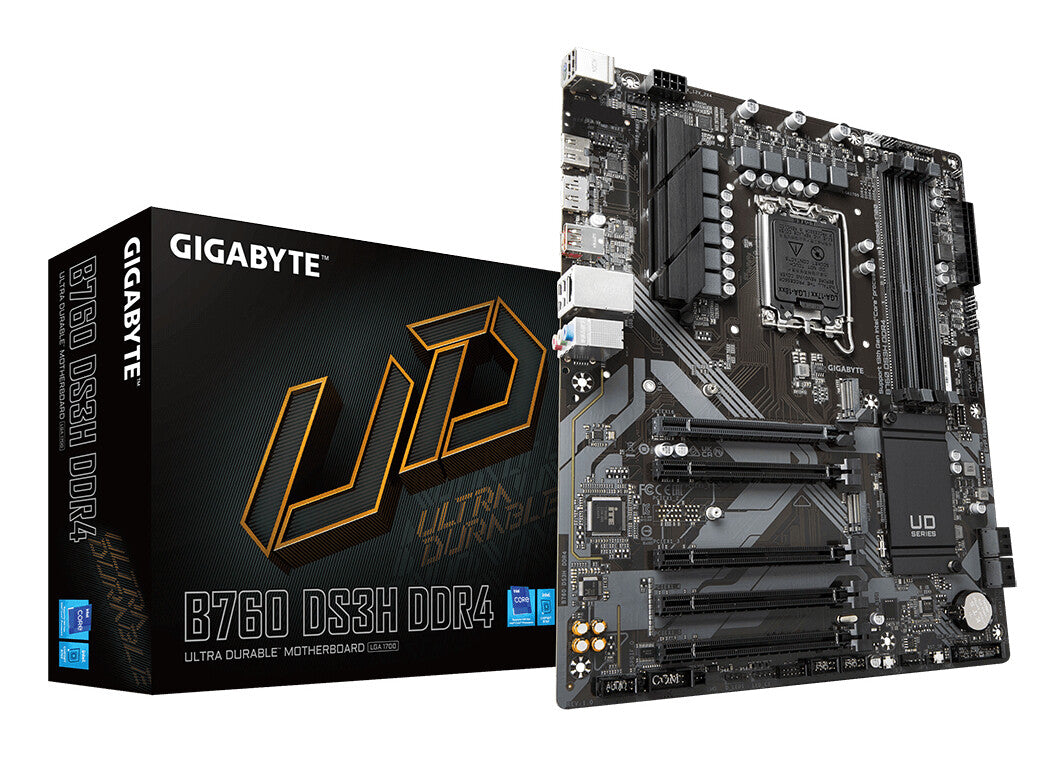

GIGABYTE B760 DS3H DDR4 Motherboard - Supports Intel Core 14th CPUs, 18+2+1 Phases Digital VRM, up to 5333MHz DDR4 (OC), 2xPCIe 4.0 M.2, GbE LAN, USB 3.2 Gen 2

• Supports Intel Core 14th/ 13th /12th processors
• Unparalleled Performance：Hybrid 8+2+1 Phases Digital VRM Solution
• Dual Channel DDR4：4*DIMMs XMP Memory Module Support
• Next Generation Storage：2*PCIe 4.0 x4 M.2 Connectors
• EZ-Latch：PCIe 4.0x16 Slot with Quick Release Design
• Fast Networks：GbE LAN
• Extended Connectivity：Rear USB-C 20Gb/s, DP, HDMI
• Smart Fan 6：Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
• Q-Flash Plus：Update BIOS Without Installing the CPU, Memory and Graphics Card

---

B760 DS3H DDR4 Motherboard - Supports Intel Core 14th CPUs, 18+2+1 Phases Digital VRM, up to 5333MHz DDR4 (OC), 2xPCIe 4.0 M.2, GbE LAN, USB 3.2 Gen 2

---

Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge

---

Processor
Maximum internal memory supported by processor	128 GB
Supported processor sockets	LGA 1700
Compatible processor series	Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold
Processor socket	LGA 1700
Processor manufacturer	Intel

Memory
Unbuffered memory	Yes
Supported memory module capacities	1GB, 2GB, 4GB, 8GB, 12GB, 16GB, 32GB
Maximum internal memory	128 GB
Supported memory clock speed (max)	5333 MHz
Supported memory clock speeds	2133,2400,2666,2933,3000,3200,3300,3333,3400,3466,3600,3666,3733,3800,3866,4000,4133,4266,4300,4400,4500,4600,4700,4800,4933,5000,5133,5333 MHz
ECC сompatibility	ECC & Non-ECC
Memory channels	Dual-channel
Memory slots type	DIMM
Number of memory slots	4
Supported memory types	DDR4-SDRAM

Storage controllers
RAID levels	0, 1, 5, 10
RAID support	Yes
Number of HDDs supported	4
Number of storage drives supported	6
Supported storage drive interfaces	M.2, PCI Express 4.0, SATA III
Supported storage drive types	HDD & SSD

Graphics
DirectX version	12.0
HDCP	Yes
Maximum resolution	4096 x 2304 pixels
Parallel processing technology support	Not supported

Internal I/O
RGB LED pin header	Yes
Serial port headers	1
TPM connector	Yes
12V power connector	Yes
EPS power connector (8-pin)	Yes
CPU fan connector	Yes
ATX Power connector (24-pin)	Yes
Front panel connector	Yes
Front panel audio connector	Yes
S/PDIF out connector	Yes
Total number of SATA connectors	4
Number of SATA III connectors	4
USB 3.2 Gen 1 (3.1 Gen 1) connectors	2
USB 2.0 connectors	2

Rear panel I/O ports
USB connector type	USB Type-A, USB Type-C
Microphone in	Yes
Headphone outputs	3
DisplayPort version	1.2
DisplayPorts quantity	1
HDMI version	2.0
HDMI ports quantity	1
PS/2 ports quantity	1
Ethernet LAN (RJ-45) ports	1
USB 3.2 Gen 2x2 Type-C ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	1
USB 2.0 ports quantity	4

Network
Wi-Fi	No
Ethernet interface type	Gigabit Ethernet
Ethernet LAN	Yes

Features
Windows operating systems supported	Windows 10 x64, Windows 11 x64
PC health monitoring	Fan, Temperature, Voltage, Water cooling
Audio output channels	7.1 channels
Motherboard chipset	Intel B760 Express
Motherboard chipset family	Intel
Motherboard form factor	ATX
Component for	PC

Expansion slots
Number of M.2 (M) slots	2
PCI Express x16 slots	5

BIOS
Desktop Management Interface (DMI) version	2.7
System Management BIOS (SMBIOS) version	2.7
Clear CMOS jumper	Yes
ACPI version	5.0
BIOS memory size	128 Mbit
BIOS type	UEFI AMI

Battery
Battery type	CR2032
Battery technology	Lithium-Manganese Dioxide (LiMnO2)
Number of battery cells	1
Battery weight	3 g
Lithium weight per battery	0.07 g

Packaging data
Package weight	1.31 kg
Package height	80 mm
Package depth	270 mm
Package width	335 mm

Logistics data
Country of origin	China
Products per shipping (inner) case	1 pc(s)

Weight & dimensions
Height	35 mm
Depth	244 mm
Width	305 mm

Packaging content
Bundled software	Norton Internet Security
Batteries included	Yes
Cables included	SATA

Technical details
Warranty period	3 year(s)

---
