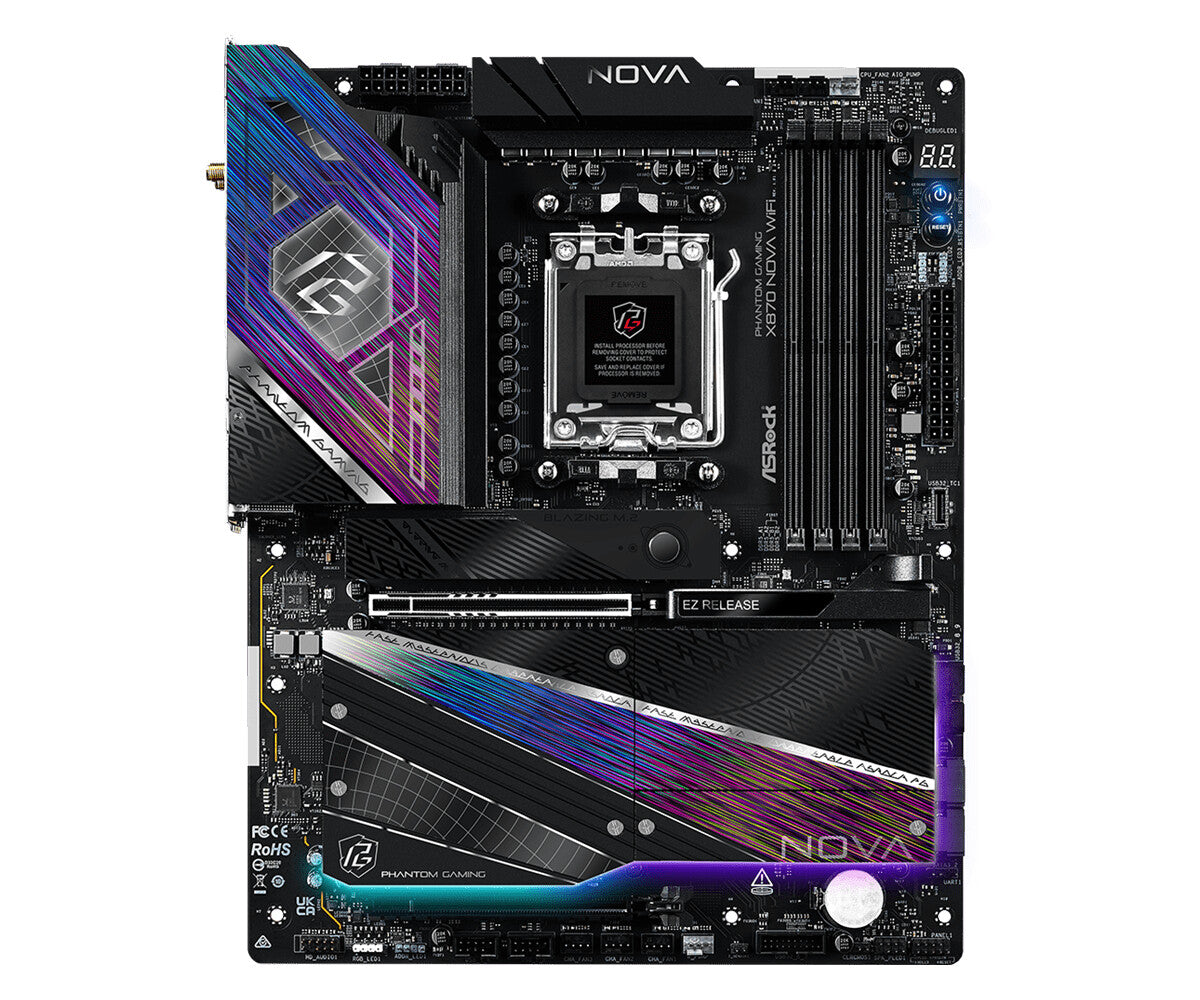

Asrock X870 NOVA WIFI AMD X870 Socket AM5 ATX

• Supports AMD Socket AM5 Ryzenâ„¢ 9000, 8000 and 7000 Series Processors
• 18+2+1 Phase Power Design, 80A SPS for VCore+SOC
• 4 x DDR5 DIMMs
• Supports Dual Channel, up to 8400+ (OC)
• 1 PCIe 5.0 x16, 1 PCIe 4.0 x16
• Graphics Output Options: 1 HDMI, 2 USB4 Type-C
• Realtek ALC4082 7.1 CH HD Audio Codec, Nahimic Audio
• 2 Blazing M.2 (PCIe Gen5x4)
• 2 Hyper M.2 (PCIe Gen4x4)
• 1 M.2 (PCIe Gen3x2 & SATA3)
• 2 SATA3
• 2 USB4 Type-C (Rear)
• 1 USB 3.2 Gen2x2 Type-C (Front)
• 2 USB 3.2 Gen2 (Rear)
• 7 USB 3.2 Gen1 (3 Rear, 4 Front)
• 8 USB 2.0 (4 Rear, 4 Front)
• Realtek 5GbE LAN
• 802.11be WiFi 7 + Bluetooth
• Supports EZ Release Design, Toolless Multi-Layer M.2 Heatsink, M.2 Bottom Heatsink

---

Socket AM5, AMD X870 Chipset, 4 x DDR5-SDRAM up to 256GB, LAN, WLAN, 1 x RJ-45, 1 x M.2(M), UEFI AMI, ATX

---

FAST MYSTERIOUS UNBEATABLE
Phantom Gaming is designed by gamers and for gamers! Underneath its relentless appearance lie plentiful gaming oriented features and excellent gaming capabilities. It’s all about bringing a new gaming experience to gamers!

DDR5 XMP & EXPO Support
Derived from the “built for stable and reliable” designing concept, ASRock does not compromise on any details. This motherboard is built with high quality materials, enthusiasts are able to enjoy the boost of DDR5 memory overclocking performance by enabling the pre-tested profiles. Make sure the memory modules are Intel® XMP/AMD EXPO™ capable and overclocking can be made so affordable, satisfying and absolutely no sweat at all.

PCIe Gen5 Blazing M.2
The Blazing M.2 accommodates the latest PCI Express 5.0 standard to perform twice the bandwidth compared to previous generation, with a breathtaking 128Gb/s transfer speed, it is ready to unleash the full potential of future ultrafast SSDs.

Graphics Card EZ Release
ASRock redesigned the PCIe slot installation method to cater to user needs, allowing for hassle-free installation and removal of the graphics card effortlessly.

XXL M.2 Heatsink
The extra-large aluminum alloy M.2 heatsink with toolless design is a user friendly quick release mechanism that helps installing M.2 SSD super easy & simple.

Aluminum Heatsink
The first thing that catches the eye is the optimized Aluminum Heatsink Design. Heatsinks are crucial for efficient heat dissipation, especially during heavy workloads like gaming or productivity tasks. Motherboard that built with heatsinks can effectively manage thermal performance, hence ensure system stability and durability effortlessly.

M.2 Bottom Heatsink
The M.2 bottom heatsink is able to dissipate heat of the M.2 SSD efficiently through the motherboard PCB, maximize performance while maintaining system stability.

Enhanced USB4 Type-C
USB4 technology brings speed and versatility to the most advanced USB Type-C, offering a fast and simple level of connection for work or home. It enables lightning-fast 40Gbps data transfer bitrate.

Optimized 5 Gb/s LAN
ASRock's 5Gb/s LAN Connector features an exclusive, patented design, boasting superior electromagnetic interference resistance, ensuring high-speed stable performance and providing users with a better networking experience.

Front Panel USB 3.2 Gen2x2 Type-C Header
The latest USB 3.2 Gen2x2 Type-C delivers up to 20 Gbps data transfer rate which is 2x as fast as previous generation, providing a blazing fast data transfer interface with reversible USB Type-C design that fits the connector either way.

Fast Charging Technology
Enjoy the superfast charging rate, up to 12V@3A 36W with PD 3.0! far more than any smartphone requires.

POLYCHROME RGB
This motherboard features onboard RGB headers and addressable RGB headers that allow motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis and so on. Users may also synchronize RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects.

SignalRGB
SignalRGB unifies your RGB devices, offering seamless customization, game-reactive effects, macro automation, and system monitoring. The official partnership empowers ASRock motherboards with advanced lighting control, enhances compatibility with a diverse range of RGB devices, and provides greater customization flexibility.

---

Processor
Compatible processor series	AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
Processor socket	Socket AM5
Processor manufacturer	AMD

Memory
Maximum internal memory	256 GB
Supported memory clock speeds	8400 MHz
ECC сompatibility	ECC & Non-ECC
Memory channels	Dual-channel
Memory slots type	DIMM
Number of memory slots	4
Supported memory types	DDR5-SDRAM

Storage controllers
RAID levels	0, 1, 10
RAID support	Yes
Supported storage drive interfaces	M.2, SATA III
Supported storage drive types	HDD & SSD

Internal I/O
RGB LED pin header	Yes
Number of EPS power connectors (8-pin)	2
EPS power connector (8-pin)	Yes
Number of CPU fan connectors	2
CPU fan connector	Yes
ATX Power connector (24-pin)	Yes
Front panel audio connector	Yes
USB 3.2 Gen 2x2 connectors	1
USB 3.2 Gen 1 (3.1 Gen 1) connectors	2
USB 2.0 connectors	2

Rear panel I/O ports
S/PDIF out port	Yes
Microphone in	Yes
HDMI ports quantity	1
Ethernet LAN (RJ-45) ports	1
USB4 Gen 2x2 ports quantity	2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	3
USB 2.0 ports quantity	4

Network
Bluetooth version	5.4
Bluetooth	Yes
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 7 (802.11be)
Top Wi-Fi standard	Wi-Fi 7 (802.11be)
Wi-Fi	Yes
LAN controller	Realtek RTL8126
Ethernet interface type	5 Gigabit Ethernet
Ethernet LAN	Yes

Features
Windows operating systems supported	Windows 10 x64, Windows 11 x64
Audio output channels	7.1 channels
Audio chip	Realtek ALC4082
Motherboard chipset	AMD X870
Motherboard chipset family	AMD
Motherboard form factor	ATX
Component for	PC

Expansion slots
Number of M.2 (M) slots	1
PCI Express x16 (Gen 5.x) slots	1
PCI Express x16 (Gen 4.x) slots	1

BIOS
BIOS memory size	256 Mbit
BIOS type	UEFI AMI

Weight & dimensions
Depth	244 mm
Width	305 mm

Packaging content
Cables included	SATA
Antenna included	Yes

---
