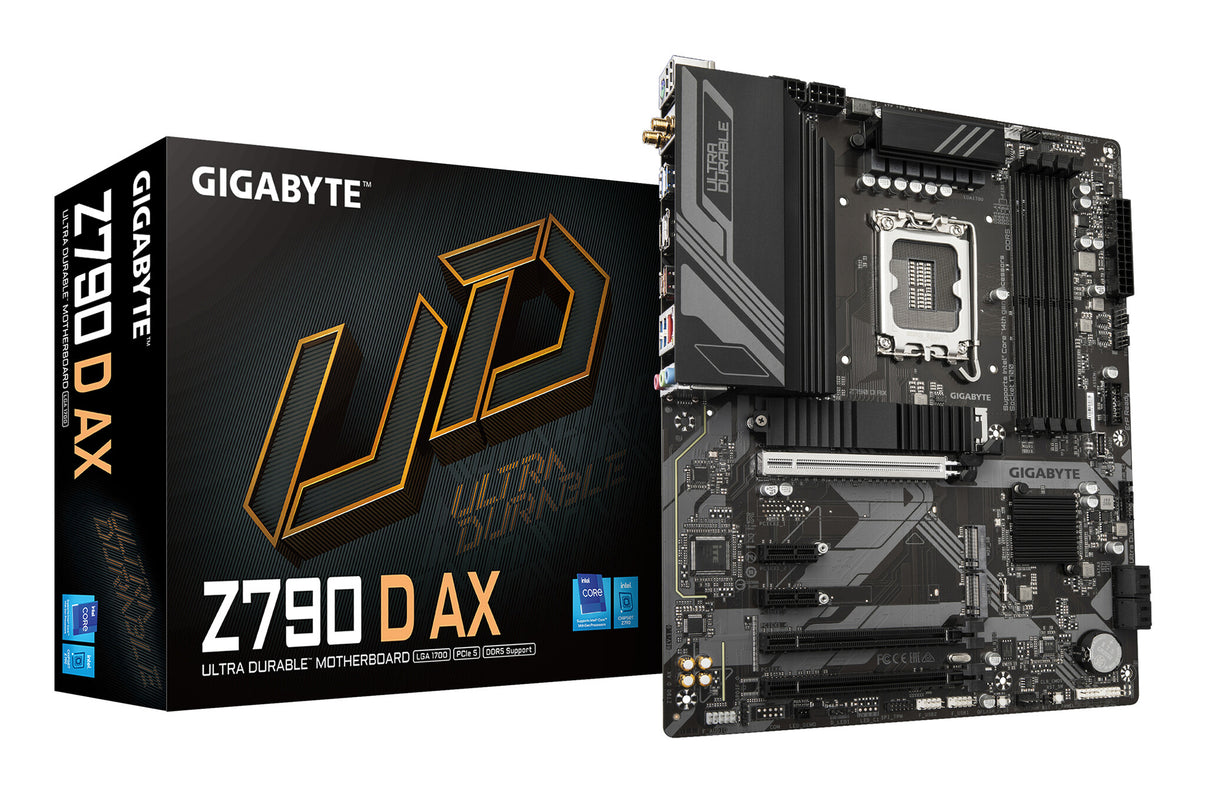

GIGABYTE Z790 D AX Motherboard - Supports Intel Core 14th Gen CPUs, 12+1+1 Phases Digital VRM, up to 7600MHz DDR5 (OC), 3xPCIe 4.0 M.2, Wi-Fi 6E, 2.5GbE LAN, USB 3.2 Gen 2

• Supports Intel Core 14th/ 13th /12th processors
• Unparalleled Performance：Twin 12*+1+１ Phases Digital VRM Solution
• Dual Channel DDR5：4*DIMMs with XMP 3.0 Memory Module Support
• Next Generation Storage：3*PCIe 4.0 x4 M.2 Connectors
• Advanced Thermal Design & M.2 Thermal Guard: To Ensure VRM Power Stability & M.2 SSD Performance
• EZ-Latch：PCIe 4.0x16 Slot with Quick Release Design
• Fast Networks：2.5GbE LAN & Wi-Fi 6E 802.11ax
• Extended Connectivity：DP, HDMI, Rear USB-C 10Gb/s
• Smart Fan 6：Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
• Q-Flash Plus：Update BIOS Without Installing the CPU, Memory and Graphics Card

---

Z790 D AX Motherboard - Supports Intel Core 14th Gen CPUs, 12+1+1 Phases Digital VRM, up to 7600MHz DDR5 (OC), 3xPCIe 4.0 M.2, Wi-Fi 6E, 2.5GbE LAN, USB 3.2 Gen 2

---

Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge

---

Processor
Processor manufacturer	Intel
Processor socket	LGA 1700
Compatible processor series	Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold
Maximum number of SMP processors	1
Supported processor sockets	LGA 1700
Maximum internal memory supported by processor	192 GB

Memory
Supported memory types	DDR5-SDRAM
Number of memory slots	4
Memory slots type	DIMM
Memory channels	Dual-channel
ECC сompatibility	ECC & Non-ECC
Supported memory clock speeds	4400,4800,5200,5400,5600,5800,6000,6200,6400,6600,6800,7000,7200,7400,7600 MHz
Supported memory clock speed (max)	7600 MHz
Supported memory module capacities	1GB, 2GB, 4GB, 8GB, 12GB, 16GB, 32GB, 48GB
Maximum internal memory	192 GB
Unbuffered memory	Yes

Storage controllers
Supported storage drive types	HDD & SSD
Supported storage drive interfaces	M.2, SATA III
Number of storage drives supported	7
Number of HDDs supported	4
RAID support	Yes
RAID levels	0, 1, 5, 10

Graphics
Parallel processing technology support	Not supported
Maximum resolution	4096 x 2304 pixels
HDCP	Yes
DirectX version	12.0
Discrete graphics support	Yes

Internal I/O
USB 2.0 connectors	2
USB 3.2 Gen 1 (3.1 Gen 1) connectors	1
USB 3.2 Gen 2 (3.1 Gen 2) connectors	1
Number of SATA III connectors	4
Total number of SATA connectors	4
Front panel audio connector	Yes
Front panel connector	Yes
ATX Power connector (24-pin)	Yes
Number of EATX power connectors	2
CPU fan connector	Yes
EPS power connector (8-pin)	Yes
12V power connector	Yes
Thunderbolt headers	2
TPM connector	Yes
RGB LED pin header	Yes

Rear panel I/O ports
USB 2.0 ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	1
USB 3.2 Gen 2x2 Type-C ports quantity	1
Ethernet LAN (RJ-45) ports	1
PS/2 ports quantity	1
HDMI ports quantity	1
HDMI version	2.1
DisplayPorts quantity	1
DisplayPort version	1.2
Headphone outputs	1
Microphone in	Yes
S/PDIF out port	Yes
WiFi-AP antenna jack	2
USB connector type	USB Type-A, USB Type-C

Network
Ethernet LAN	Yes
Ethernet interface type	2.5 Gigabit Ethernet
LAN controller	Realtek RTL8125
Wi-Fi	Yes
Top Wi-Fi standard	Wi-Fi 6E (802.11ax)
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax)
WLAN controller model	Intel Wi-Fi 6E AX211
Bluetooth	Yes
Bluetooth version	5.3

Features
Component for	PC
Motherboard form factor	ATX
Motherboard chipset family	Intel
Motherboard chipset	Intel Z790 Express
Audio chip	Realtek ALC897
Audio output channels	7.1 channels
Product colour	Brown
PC health monitoring	Fan, Temperature, Voltage, Water cooling
Power source type	ATX
Windows operating systems supported	Windows 10 x64, Windows 11 x64

Expansion slots
PCI Express x1 (Gen 3.x) slots	2
PCI Express x16 (Gen 4.x) slots	1
PCI Express x16 (Gen 3.x) slots	1
PCI Express x16 (Gen 5.x) slots	1
Number of M.2 (M) slots	3

BIOS
BIOS type	UEFI AMI
BIOS memory size	256 Mbit
ACPI version	5.0
Clear CMOS jumper	Yes
Clear CMOS button	Yes
System Management BIOS (SMBIOS) version	2.7
Desktop Management Interface (DMI) version	2.7

Battery
Lithium weight per battery	0.07 g
Battery weight	3 g
Number of battery cells	1
Battery technology	Lithium-Manganese Dioxide (LiMnO2)
Battery type	CR2032

Packaging data
Package width	335 mm
Package depth	270 mm
Package height	80 mm
Package weight	1.84 kg

Logistics data
Products per shipping (inner) case	1 pc(s)
Country of origin	China

Weight & dimensions
Width	305 mm
Depth	244 mm
Height	35 mm

Packaging content
Batteries included	Yes
Antenna included	Yes
Cables included	SATA
Bundled software	Norton® Internet Security (OEM version) LAN bandwidth management software

Technical details
Warranty period	3 year(s)

---

• manual pdf
