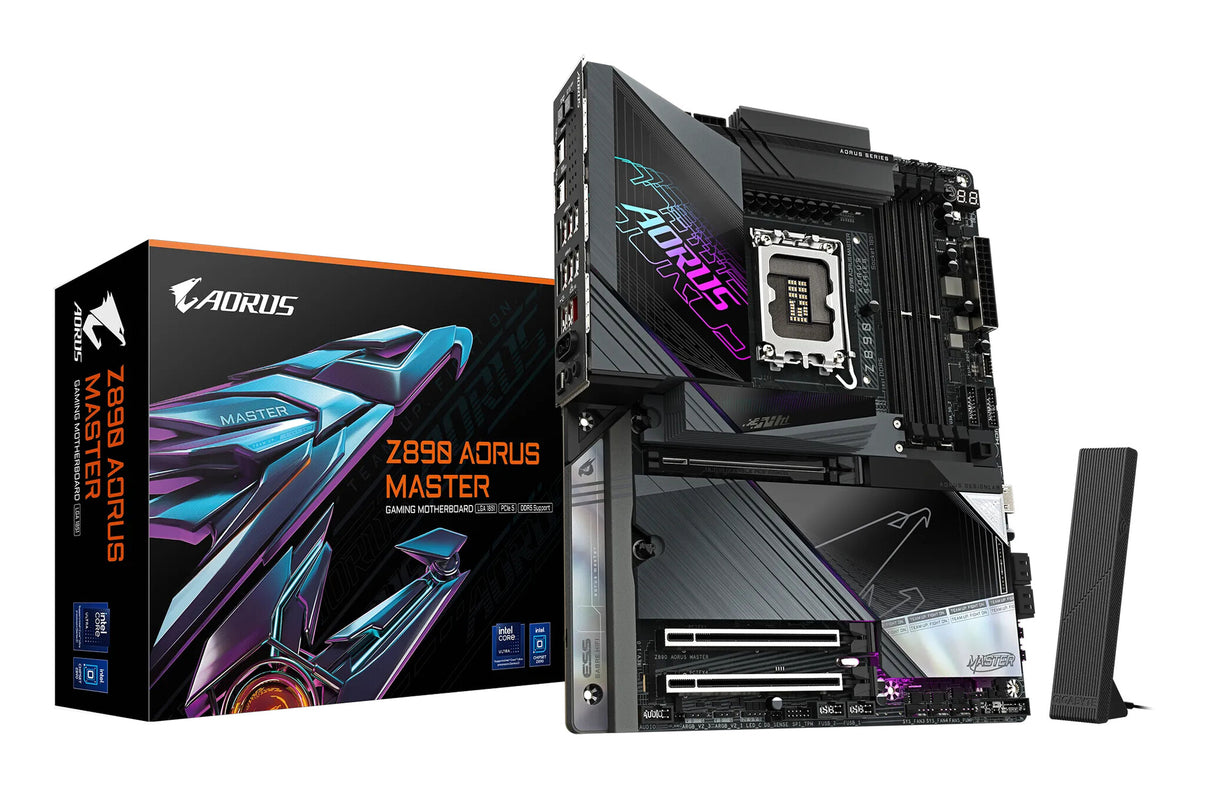

GIGABYTE Z890 AORUS MASTER Motherboard - Supports Intel Core Ultra (Series 2) CPUs, 18+1+2 phases VRM, up to 9500MHz DDR5 (OC), 2xPCIe 5.0 + 3xPCIe 4.0, Wi-Fi 7, 10GbE LAN, Thunderbolt 4

• Digital 18+1+2+1 Phases 110A SPS VRM with Tantalum Polymer Capacitor
• Reinforced PCIe UD Slot X PCIe 5.0 with PCIe EZ-Latch Plus Design
• PCIe M.2 design (Up to 25110) with M.2 EZ-Latch Plus & Thermal Guard
• Fully Covered MOSFET Heatsinks with heatpipe/M.2 EZ-Latch Click Design
• Intel 2x2 Wi-Fi 7 BE200 with WIFI EZ-Plug Design
• 10GbE LAN, THUNDERBOLT 4 Type-C, USB 3.2 Gen2x2 Type-C
• AORUS Exclusive DDR Cooling kit: DDR Wind Blade

---

Z890 AORUS MASTER Motherboard - Supports Intel Core Ultra (Series 2) CPUs, 18+1+2 phases VRM, up to 9500MHz DDR5 (OC), 2xPCIe 5.0 + 3xPCIe 4.0, Wi-Fi 7, 10GbE LAN, Thunderbolt 4

---

Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge

---

Processor
Processor manufacturer	Intel
Processor socket	LGA 1851 (Socket V1)
Compatible processor series	Intel Core Ultra (Series 2)
Supported processor sockets	LGA 1851
Maximum internal memory supported by processor	256 GB

Memory
Supported memory types	DDR5-SDRAM
Number of memory slots	4
Memory slots type	DIMM
Memory channels	Dual-channel
ECC сompatibility	Non-ECC
Supported memory clock speeds	5600,5800,6000,6200,6400,6600,7000,7200,7400,7600,7800,7900,7950,8000,8200,8266,8400,8600,9500 MHz
Supported memory clock speed (max)	9500 MHz
Supported memory module capacities	1GB, 2GB, 4GB, 8GB, 12GB, 16GB, 24GB, 32GB, 40GB, 48GB, 64GB
Maximum internal memory	256 GB

Storage controllers
Supported storage drive types	HDD & SSD
Supported storage drive interfaces	M.2, SATA III
Number of storage drives supported	4
Number of HDDs supported	9
RAID support	Yes
RAID levels	0, 1, 5, 10

Graphics
DirectX version	12.0

Internal I/O
USB 2.0 connectors	2
USB 3.2 Gen 1 (3.1 Gen 1) connectors	2
USB 3.2 Gen 2x2 connectors	1
Number of SATA III connectors	4
Total number of SATA connectors	4
ATX Power connector (24-pin)	Yes
EPS power connector (8-pin)	Yes
12V power connector	Yes
TPM connector	Yes
RGB LED pin header	Yes

Rear panel I/O ports
USB 2.0 ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	6
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	1
DisplayPorts quantity	2
Microphone in	Yes
S/PDIF out port	Yes
Thunderbolt ports quantity	2

Network
Ethernet LAN	Yes
Ethernet interface type	10 Gigabit Ethernet
Wi-Fi	Yes
Top Wi-Fi standard	Wi-Fi 7 (802.11be)
Wi-Fi standards	Wi-Fi 7 (802.11be)
WLAN controller model	Intel Wi-Fi 7 BE200
Bluetooth	Yes
Bluetooth version	5.4

Features
Component for	PC
Motherboard form factor	ATX
Motherboard chipset family	Intel
Motherboard chipset	Intel Z890
Audio output channels	5.1 channels
Product colour	Black
PC health monitoring	Fan, Temperature, Voltage
Windows operating systems supported	Windows 11 x64

Expansion slots
Number of M.2 (M) slots	5

BIOS
BIOS type	UEFI AMI
BIOS memory size	256 Mbit
ACPI version	5.0
Clear CMOS jumper	Yes
Clear CMOS button	Yes
System Management BIOS (SMBIOS) version	2.7
Desktop Management Interface (DMI) version	2.7

Battery
Lithium weight per battery	0.07 g
Battery weight	3 g
Number of battery cells	1
Battery technology	Lithium-Manganese Dioxide (LiMnO2)
Battery type	CR2032

Packaging data
Package width	335 mm
Package depth	270 mm
Package height	80 mm
Package weight	2.51 kg

Logistics data
Products per shipping (inner) case	1 pc(s)
Country of origin	China

Weight & dimensions
Width	305 mm
Depth	244 mm
Height	35 mm

Packaging content
Batteries included	Yes
Bundled software	Norton® Internet Security (OEM version) LAN bandwidth management software

Technical details
Warranty period	3 year(s)

Other features
Weight	2.19 kg

---
