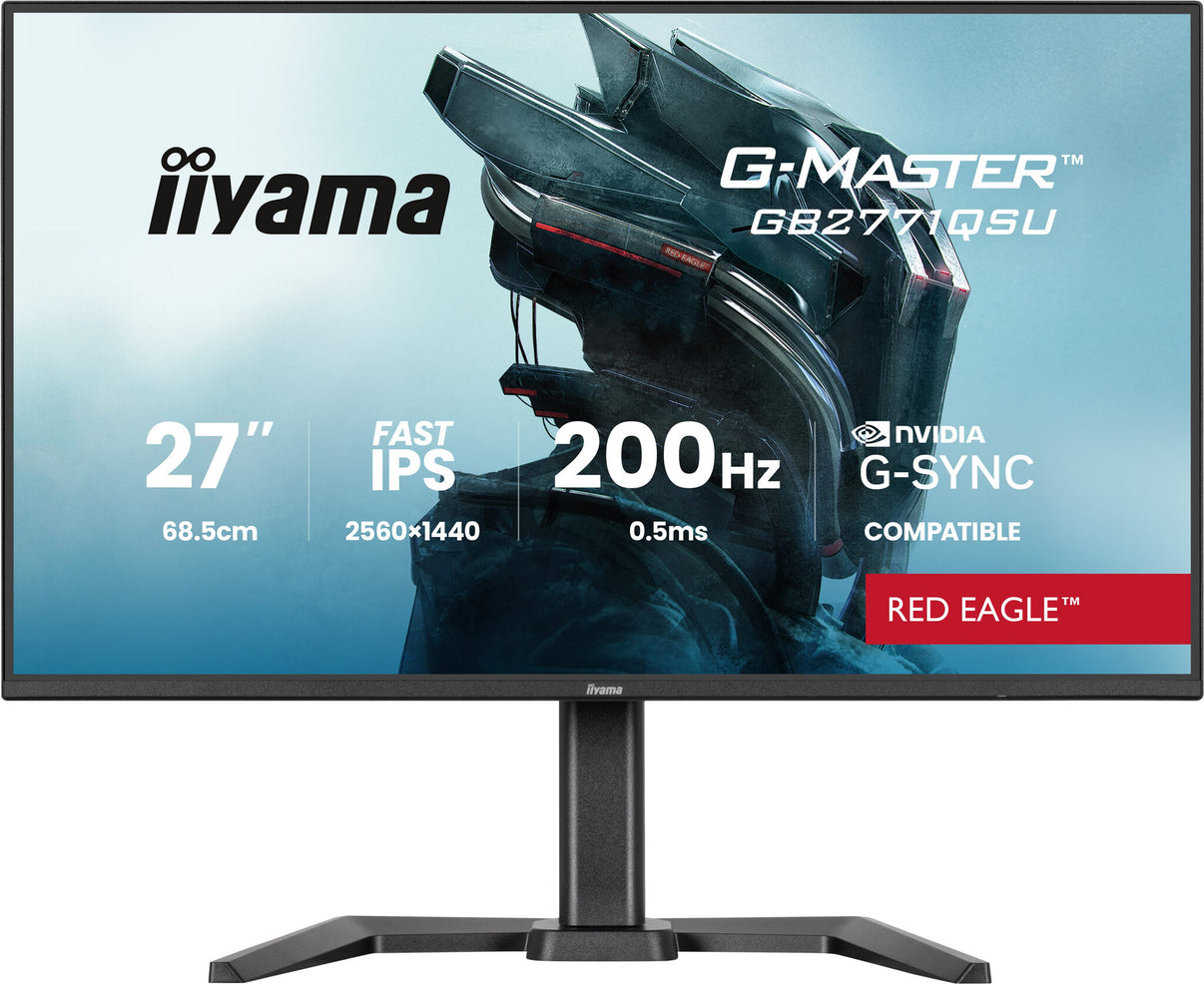

iiyama G-MASTER GB2771QSU-B1 computer monitor 68.6 cm (27") 2560 x 1440 pixels Wide Quad HD Black

• 68.6 cm (27") Black
• Height adjustment 15 cm Built-in speaker(s)
• HDMI HDMI version: 2.0 DisplayPorts quantity: 1 DisplayPort version: 1.4
• Screen shape: Flat
• Maximum refresh rate: 200 Hz Response time (MPRT): 0.5 ms
• 2560 x 1440 pixels Wide Quad HD Panel type: Fast IPS
• Energy efficiency class (SDR): E ErP CE, EAC, PSE, REACH, RoHS, TÜV mark, UKCA, VCCI, WEEE

---

Join the pro squad with the 27" G-Master Red Eagle, delivering stunning QHD resolution and a blistering 200Hz refresh rate

---

Gain the competitive edge you need to unlock your full gaming potential with the 27’’ GB2771QSU monitor with WQHD (2560x1440) resolution. Featuring an ultra-fast 0.5ms MPRT and a 200Hz refresh rate, this monitor ensures smooth gameplay. Compatible with NVIDIA G-SYNC so you can make split second decisions and forget about ghosting effects or smearing issues. The ability to adjust brightness and the dark shades with the Black Tuner delivers greater viewing performance in shadowed areas and the IPS panel technology guarantees superb image quality.

---

Display
Display diagonal	68.6 cm (27")
Display resolution	2560 x 1440 pixels
Native aspect ratio	16:9
Touchscreen	No
HD type	Wide Quad HD
Panel type	Fast IPS
Display brightness (typical)	350 cd/m²
Response time (MPRT)	0.5 ms
Screen shape	Flat
Contrast ratio (typical)	1200:1
Contrast ratio (dynamic)	80000000:1
Maximum refresh rate	200 Hz
Viewing angle, horizontal	178°
Viewing angle, vertical	178°
Display number of colours	1.07 billion colours
Pixel pitch	0.233 x 0.233 mm
Horizontal scan range	30 - 320 kHz
Viewable size, horizontal	59.7 cm
Viewable size, vertical	33.6 cm
Display diagonal (metric)	68.6 cm
DDC/CI	Yes
Haze rate	25%
Colour depth	10 bit

Performance
NVIDIA G-SYNC	Yes
AMD FreeSync	Yes
NVIDIA G-SYNC type	G-SYNC Compatible
VESA Adaptive Sync support	Yes
Flicker-free technology	Yes
Low Blue Light technology	Yes

Multimedia
Built-in speaker(s)	Yes
Number of speakers	2
RMS rated power	4 W
Built-in camera	No

Design
Market positioning	Gaming
Product colour	Black

Ports & interfaces
Built-in USB hub	Yes
USB hub version	3.2 Gen 1 (3.1 Gen 1)
Number of downstream ports	4
USB Type-A downstream ports quantity	2
USB Type-C downstream ports quantity	2
HDMI	Yes
HDMI ports quantity	2
HDMI version	2.0
DisplayPorts quantity	1
DisplayPort version	1.4
Headphone out	Yes
HDCP	Yes

Ergonomics
VESA mounting	Yes
Panel mounting interface	100 x 100 mm
Cable management	Yes
Cable lock slot	Yes
Cable lock slot type	Kensington
Height adjustment	Yes
Adjustable height (max)	15 cm
Pivot	Yes
Pivot angle	0 - 90°
Swivelling	Yes
Swivel angle range	-45 - 45°
Tilt adjustment	Yes
Tilt angle range	-5 - 23°
On Screen Display (OSD)	Yes
On Screen Display (OSD) languages	Czech, German, English, Spanish, French, Italian, Japanese, Dutch, Polish, Portuguese, Russian, Ukrainian
Number of OSD languages	12

Power
Energy efficiency class (SDR)	E
Energy efficiency class (HDR)	G
Energy consumption (SDR) per 1000 hours	21.2 kWh
Energy consumption (HDR) per 1000 hours	36 kWh
Power consumption (typical)	21 W
Power consumption (standby)	0.5 W
Power consumption (off)	0.3 W
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Input current	1.5 A
Power supply type	Internal
Energy efficiency scale	A to G

Operational conditions
Operating temperature (T-T)	5 - 35 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	10 - 80%
Storage relative humidity (H-H)	10 - 90%

Weight & dimensions
Width (with stand)	613.5 mm
Depth (with stand)	213 mm
Height (with stand)	554 mm
Weight (with stand)	5.7 kg
Height (without stand)	408.5 mm
Weight (without stand)	3.9 kg

Packaging data
Package width	690 mm
Package depth	465 mm
Package height	140 mm
Package weight	8.2 kg
USB cable length	1.8 m

Packaging content
Cables included	AC, USB, HDMI, DisplayPort
Quick start guide	Yes
DisplayPort cable length	1.8 m
HDMI cable length	1.8 m
Power cable length	1.8 m

Sustainability
Sustainability certificates	ErP

General
Product family	G-MASTER

Other features
Depth	213 mm
Width	613.5 mm
Weight	5.7 kg
Packaging content	quick start guide, safety guide
Compliance certificates	CE, EAC, PSE, REACH, RoHS, TÜV mark, UKCA, VCCI, WEEE
Certification	CE, TÜV-Bauart, EAC, PSE, RoHS support, ErP, WEEE, VCCI, REACH, UKCA
Control panel	power switch, joystick, menu (center), up / signal select, down / shortcut, left / volume -, right / volume +
User controls	picture adjust (contrast, brightness, OverDrive, HDR, Adaptive Sync, night mode, blue light reducer, Motion Blur Reducer, gamma), input select (input source, auto/ manual, DP, HDMI1, HDMI2), audio adjust (volume, mute), store user settings (user modes), colour settings (6-axis, colour temperature, user preset, black tuner), image adjust (i-Style Colour, X-Res Technology, sharpness, HDMI range, Direct Drive Mode, video mode adjust), language, OSD setup menu (OSD H. position, OSD V. position, OSD Time, Opening Logo, Power LED, DDC/ DI Control, USB charge), display information, reset (reset all)

---
