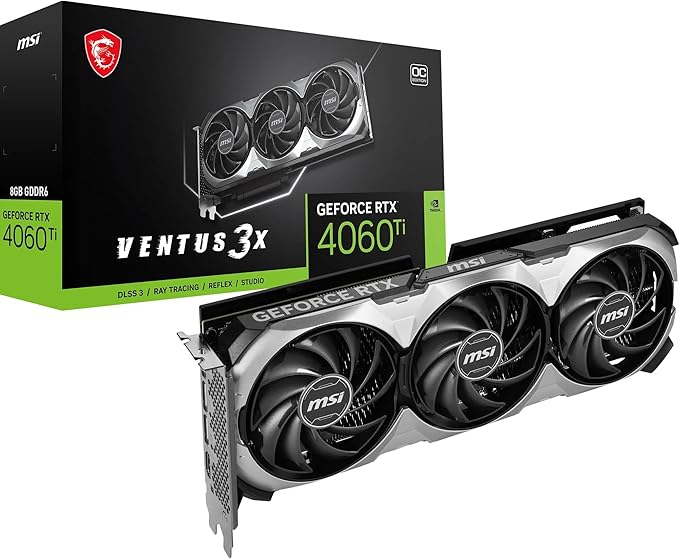

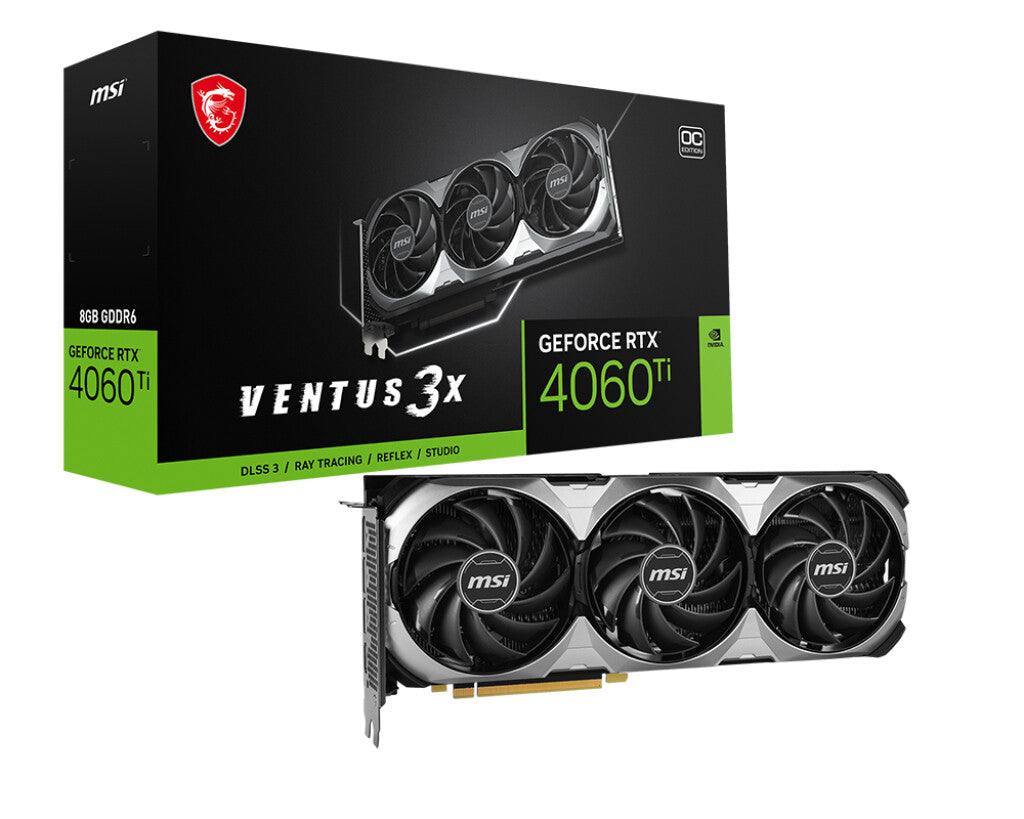

MSI VENTUS GEFORCE RTX 4060 TI 8G 3X E1 OC graphics card NVIDIA 8 GB GDDR6

• 2565 MHz / 18 Gbps
• 8GB GDDR6
• DisplayPort x 3 (v1.4a)
• HDMI™ x 1 (Supports 4K@120Hz HDR, 8K@60Hz HDR, and Variable Refresh Rate as specified in HDMI™ 2.1a)
• TORX Fan 4.0: A masterpiece of teamwork, fan blades work in pairs to create unprecedented levels of focused air pressure
• Airflow Control: Don’t sweat it, Airflow Control guides the air to exactly where it needs to be for maximum cooling
• Core Pipe: Precision-crafted heat pipes ensure max contact to the GPU and spread heat along the full length of the heatsink
• Zero Frozr: The fans completely stop when temperatures are relatively low, eliminating all noise

---

NVIDIA GeForce RTX 4060 Ti, 8GB GDDR6, 128 bit, PCI Express 4.0, 1 x HDMI (2.1a), 3 x DP (1.4a), CUDA, DirectX 12 Ultimate, OpenGL 4.6, 165W

---

Take The Essentials
VENTUS brings a fundamentally solid experience to users looking for a performance graphics card. A sharp-looking updated design with TORX FAN 4.0 and Airflow Control lets VENTUS breeze through any task.

---

Processor
Parallel processing technology support	Not supported
Maximum displays per videocard	4
Processor boost clock speed	2565 MHz
CUDA cores	4352
CUDA	Yes
Maximum resolution	7680 x 4320 pixels
Graphics processor	GeForce RTX 4060 Ti
Graphics processor family	NVIDIA

Memory
Data transfer rate	18 Gbit/s
Memory bus	128 bit
Graphics card memory type	GDDR6
Discrete graphics card memory	8 GB

Ports & interfaces
DisplayPort version	1.4a
HDMI version	2.1a
DisplayPorts quantity	3
HDMI ports quantity	1
Interface type	PCI Express 4.0

Performance
AMD FreeSync	No
NVIDIA G-SYNC	Yes
Dual Link DVI	No
HDCP	Yes
OpenGL version	4.6
DirectX version	12 Ultimate
TV tuner integrated	No

Design
Product colour	Grey
Form factor	Full-Height/Full-Length (FH/FL)
Number of fans	3 fan(s)
Cooling technology	MSI TORX Fan 4.0
Cooling type	Active

Power
Power consumption (typical)	165 W
Supplementary power connectors	1x 8-pin
Minimum system power supply	550 W

Weight & dimensions
Height	120 mm
Depth	43 mm
Length	308 mm
Weight	735 g

Packaging data
Package type	Box
Package weight	1 kg

Packaging content
Quick installation guide	Yes

General
Product family	VENTUS

---
