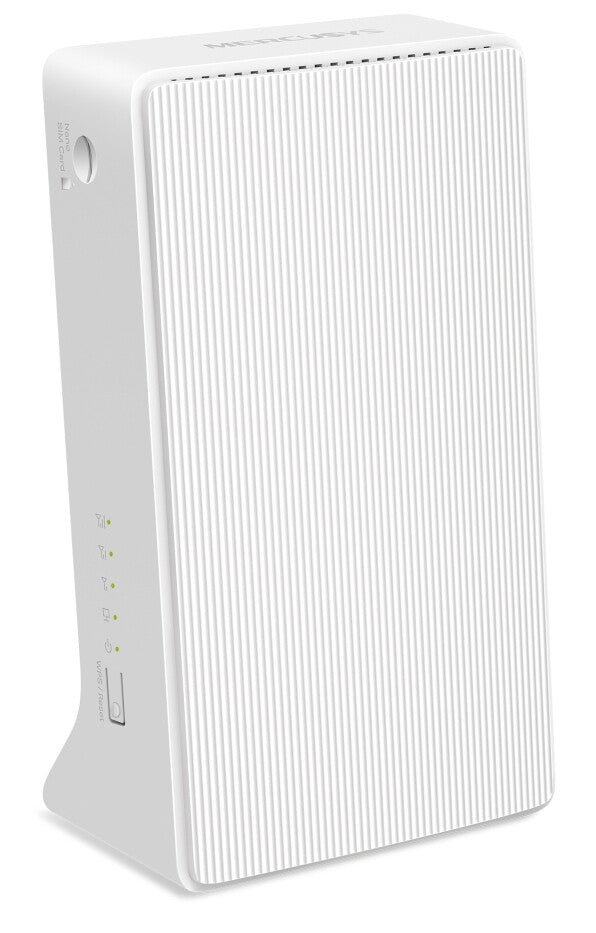

Mercusys 300 Mbps Wireless N 4G LTE Router
Out of stock
Pairs well with
- 4G network – Share internet access with up to 32 Wi-Fi devices and enjoy download speeds of up to 150 Mbps
- Plug a SIM card and play – No configurations needed, compatibility of SIM cards are assured by years of field tests
- 300 Mbps WiFi – Fast WiFi speeds up to 300 Mbps to share your network
- Wi-Fi router mode – Plug an Ethernet cable into the LAN/WAN port for flexible access if you can't get a 4G connection
300 Mbps, 2.4 GHz, IEEE 802.11b/g/n, Nano SIM, 1x 10/100 Mbps LAN/WAN Port + 1x 10/100 Mbps LAN, 90x92x150.5 mm
Build Your WiFi with 4G network
300 Mbps Wireless N 4G LTE Router
Plug Your Nano SIM Card and Play
Fully compatible with FDD-LTE and TDD-LTE to work with most service providers worldwide. Insert a nano SIM card and turn on the router to share your 4G LTE network with multiple Wi-Fi devices.
Get Wi-Fi Where You Need It
Enjoy unmatched convenience and versatility and utilize fast and stable Wi-Fi, whether you're at home or working remotely.
Superfast 4G LTE Speed for Reliable Wi-Fi
Working as a 4G router, the MB110-4G uses 4G LTE technology to achieve super-fast speeds up to 150 Mbps download and 50Mbps upload. It can also share a Wi-Fi network with a maximum speed of 300 Mbps on 2.4 GHz for gaming, streaming, and more.
Share the WiFi with Friends
A remarkable number of wireless gadgets are compatible with this 4G router without any issues. Up to 32 simultaneous connections for tablets, laptops, mobile phones, and other devices.
Full of Strong and Stable Signal
Internal high-gain antennas strengthen the WiFi signal, extend the range of connection establishment, and boost the sensitivity of the router. Additionally, by connecting your extra 4G antennas to the external antenna ports, you may further strengthen the signal.
Available WAN Connection Backup
With a fully functional WAN/LAN port, MB110-4G can work as a router that is compatible with cable, fiber,
and DSL modems, or provide internet for wired devices. The reliable access is for up to 32 devices Simultaneously.
Easy Setup and Management via MERCUSYS App
Set up and manage your Wi-Fi through the MERCUSYS app from your smartphone (Android, iOS).
| WAN connection | |
|---|---|
| Ethernet WAN | Yes |
| DSL WAN | No |
| SIM card slot | Yes |
| 3G/4G USB modem compatibility | Yes |
| WAN connection type | RJ-45 |
| Wireless LAN features | |
|---|---|
| Wi-Fi band | Single-band (2.4 GHz) |
| Top Wi-Fi standard | Wi-Fi 4 (802.11n) |
| WLAN data transfer rate (max) | 300 Mbit/s |
| Wi-Fi standards | 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| Network | |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN interface type | Ethernet |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Cabling technology | 10/100Base-T(X) |
| Networking standards | IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Port triggering | Yes |
| Port forwarding | Yes |
| Dynamic DNS (DDNS) | Yes |
| Mobile network | |
|---|---|
| Mobile network generation | 4G |
| Dual SIM support | No |
| 3G standards | HSPA, HSPA+, UMTS |
| 4G standard | LTE-TDD & LTE-FDD |
| 3G bands supported | 850,900,2100 MHz |
| 4G bands supported | 700,800,850,900,1800,2100,2300,2500,2600 MHz |
| SIM card type | NanoSIM |
| Ports & interfaces | |
|---|---|
| Ethernet LAN (RJ-45) ports | 2 |
| USB port | No |
| DC-in jack | Yes |
| Management features | |
|---|---|
| Wi-Fi Multimedia (WMM)/(WME) | Yes |
| Reset button | Yes |
| WPS push button | Yes |
| Security | |
|---|---|
| Security algorithms | 64-bit WEP, 128-bit WEP, WPA, WPA-PSK, WPA2, WPA2-PSK |
| Firewall | Yes |
| Port-based Network Access Control (PNAC) | Yes |
| System event log | Yes |
| DMZ support | Yes |
| Protocols | |
|---|---|
| DHCP server | Yes |
| Universal Plug and Play (UPnP) | Yes |
| VoIP protocols | IPv4, IPv6 |
| Design | |
|---|---|
| Product type | Desktop/pole router |
| Product colour | White |
| Indication light | Yes |
| Packaging content | |
|---|---|
| AC adapter included | Yes |
| Quick installation guide | Yes |
| Antenna | |
|---|---|
| Antenna design | Internal |
| Features | |
|---|---|
| Firmware upgradeable | Yes |
| Power | |
|---|---|
| Power source type | DC |
| Output voltage | 9 V |
| Output current | 0.85 A |
| Operational conditions | |
|---|---|
| Storage relative humidity (H-H) | 5 - 90% |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating temperature (T-T) | 0 - 40 °C |
| Weight & dimensions | |
|---|---|
| Height | 150.5 mm |
| Depth | 92 mm |
| Width | 90 mm |
| Packaging data | |
|---|---|
| Package type | Box |
| Number of products included | 1 pc(s) |
- 4G LTE Router(EU2_16 Languages)_Quick Installation Guide
- leaflet
- Statements of PSTI Compliance
- QIG
- 4G LTE Router(EU1_11 Languages)_Quick Installation Guide
- manual pdf
