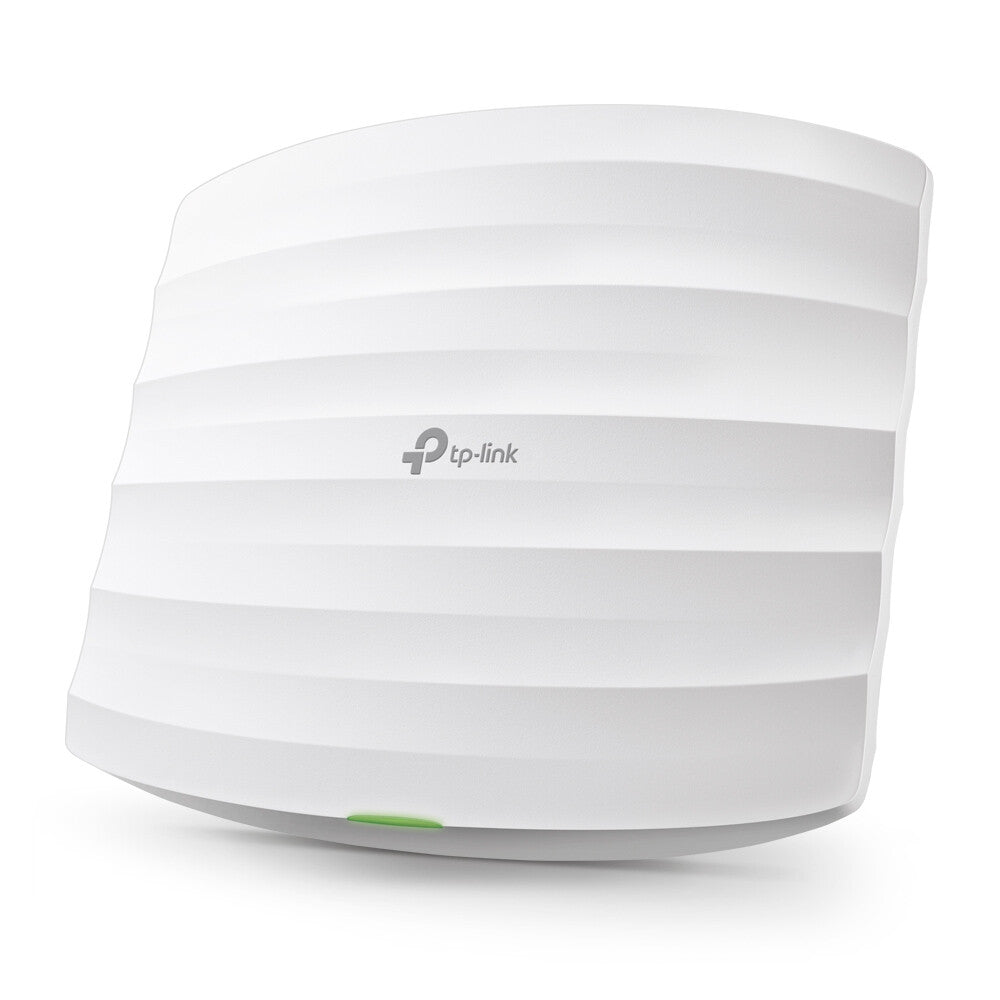

TP-Link Omada EAP225 wireless access point 1350 Mbit/s White Power over Ethernet (PoE)

• Simultaneous 450Mbps1 on 2.4GHz and 867Mbps1 on 5GHz totals 1317Mbps1 Wi-Fi speeds
• EAP Controller Software lets administrators easily manage hundreds of EAPs
• Compatibility with 802.3af and Passive PoE support makes deployment effortless and flexible
• Captive portal provides a convenient method for guest authentication
• Band Steering Automatically moves dual band devices onto the wider 5GHz band for faster connections
• MU-MIMO2 means access points simultaneously transfer data with multiple devices, speeding up connections
• Beamforming concentrates signal towards where you need it most, providing a fast and stable Wi-Fi experience
• Supports management VLAN for an enhanced network management
• Schedules can be set so access points automatically reboot and Wi-Fi turns on/off at the times you choose

---

802.3af/at PoE, 12.6W, 2.4GHz: 4dBi x 3, 5GHz: 5dBi x 2, 2.4GHz and 5GHz, FCC, RoHS

---

Superior Wi-Fi Speeds with MU-MIMO Technology
Outfitted with the latest 802.11ac Wave 2 MU-MIMO technology, the EAP225 easily delivers dual-band Wi-Fi speeds of up to 1350 Mbps to multiple devices at the same time.

Cloud Centralized Management
- Anytime, Anywhere
Omada Hardware Controller OC200 and Omada Software Controller make it easy to manage and monitor the whole Omada network in real-time, while cloud service enables remote and secure access no matter where you find yourself.

Facebook check-in and SMS authentication expands your social influence in secured ways
Captive portal helps maintain only authorized guests to use the network, presenting devices with a convenient, user-friendly authentication method to grant Wi-Fi access. The addition of SMS and Facebook authentication simplifies the captive portal even further to simplify connectivity and boost your business.

Multiple PoE Options for Easy Installation
EAP225 supports both 802.3af PoE and Passive PoE power supply, can be either powered by a PoE switch or the provided PoE injector, making deployment effortless and flexible.

Easy Management with the Omada App
Follow configuration instructions on the free Omada app to get set up in minutes. Omada lets you configure settings, monitor the network status and manage clients, all from the convenience of a smart phone or tablet.

Meet Our New Hero Product!
The OC200 Omada Hardware Controller is dedicated to providing centralized management for the whole Omada network.

---

Features
2.4 GHz	Yes
6 GHz	No
5 GHz	Yes
Maximum data transfer rate	1350 Mbit/s
Maximum data transfer rate (2.4 GHz)	450 Mbit/s
Maximum data transfer rate (5 GHz)	867 Mbit/s
Ethernet LAN data rates	10,100,1000 Mbit/s
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3af
Cabling technology	10/100/1000Base-T(X)
MIMO	Yes
MIMO type	Multi User MIMO
Wi-Fi Multimedia (WMM)/(WME)	Yes
VLAN support	Yes
Virtual LAN features	VLAN mapping
Rate limiting	Yes
Band steering	Yes
Airtime Fairness (ATF)	Yes
Quality of Service (QoS) support	Yes
BeamForming	Yes
Transmitting power (FCC)	24 dBm
Transmitting power (CE)	23 dBm

Security
Security algorithms	64-bit WEP, 128-bit WEP, 152-bit WEP, SSID, WPA, WPA-PSK, WPA2, WPA2-PSK
MAC address filtering	Yes
Service Set Identifier (SSID) features	Multiple SSIDs
Number of SSID supported	16
Access Control List (ACL)	Yes

Management features
Web-based management	Yes
Syslog	Yes

Ports & interfaces
Ethernet LAN (RJ-45) ports	1
DC-in jack	Yes

Power
Power over Ethernet (PoE) type supported	Passive PoE
Power over Ethernet (PoE)	Yes
Output voltage	12 V
Output current	1.5 A
Power consumption (typical)	10.15 W

Design
Placement	Ceiling, Wall
Product colour	White
Cable lock slot	Yes
Cable lock slot type	Kensington
On/off switch	Yes
Reset button	Yes
LED indicators	Power, WLAN

Antenna
Antenna type	Internal
Antenna direction type	Omni-directional
Antenna features	Integrated antenna
Antennas quantity	5
Antenna gain level (max)	5 dBi

Performance
Compatible operating systems	Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Linux

General
Product family	Omada

Mobile network
SIM card slot	No

Certificates
Compliance certificates	CE, Federal Communications Commission (FCC), RoHS

Weight & dimensions
Width	205.5 mm
Depth	181.5 mm
Height	37.1 mm

Packaging data
Package width	228 mm
Package depth	340 mm
Package height	65 mm
Package weight	910 g
Package type	Box

Packaging content
Quantity per pack	1 pc(s)
AC adapter included	Yes
PoE adapter included	Yes
Mounting kit	Yes
Quick start guide	Yes

Operational conditions
Operating relative humidity (H-H)	10 - 90%
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
Storage relative humidity (H-H)	5 - 90%

Sustainability
Sustainability compliance	Yes

Logistics data
Harmonized System (HS) code	85176990

---
