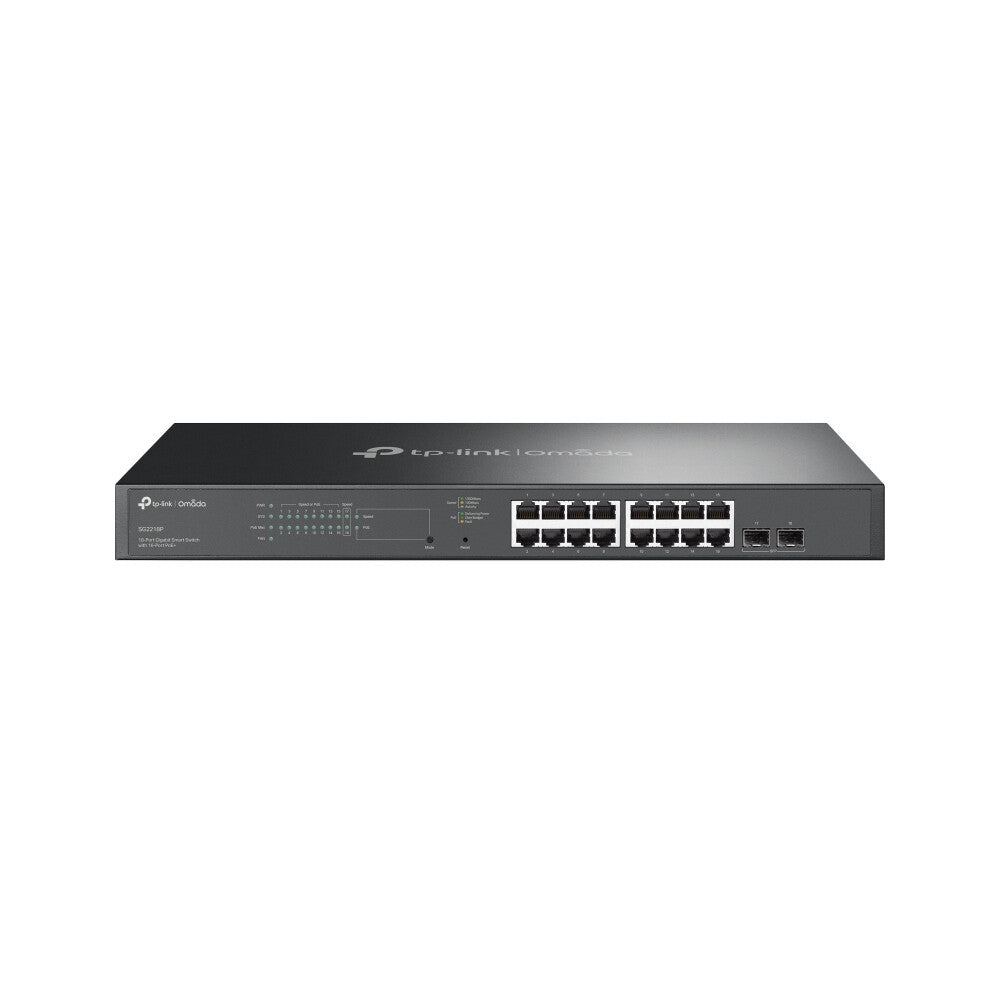

TP-Link Omada 18-Port Gigabit Smart Switch with 16-Port PoE+

• 16× Gigabit 802.3af/at PoE+ ports and 2× Gigabit SFP Slots
• 150 W total PoE budget with up to 30 W PoE output per port*
• Centralized cloud management via the web or the Omada app†
• Standalone management via web, CLI, SNMP, and RMON
• Static Routing helps route internal traffic for higher efficiency
• VLAN, ACL, QoS, and IGMP Snooping
• Durable metal casing and rackmountable design

---

16× 10/100/1000 Mbps PoE+ RJ45, 2× Gigabit SFP Slots, 36 Gbps, 8K MAC, 9 KB Jumbo, 440 × 180 × 44 mm

---

TP-Link’s brand new Omada smart switches provide huge upgrade comparing with previous versions. The
switches can be managed by Omada SDN Controller, which provides professional and reliable one-step
solutions. Integrated L2 and L2+ features such as 802.1Q VLAN, QoS, IGMP Snooping and static routing
provide cost-effective networking solutions for small and medium-sized businesses without sacrificing
enhanced usability and strong performance.

---

Management features
MIB support	MIB II (RFC1213), Bridge MIB (RFC1493), P/Q-Bridge MIB (RFC2674), Radius Accounting Client MIB (RFC2620), Radius Authentication Client MIB (RFC2618), Remote Ping, Traceroute MIB (RFC2925), Support TP-Link private MIBs, RMON MIB(RFC1757, rmon 1,2,3,9)
System event log	Yes
ARP inspection	Yes
Configuring Location Settings (CLI)	Yes
Web-based management	Yes
Cloud-managed	Yes
Quality of Service (QoS) support	Yes
Switch layer	L2/L2+
Switch type	Managed

Ports & interfaces
SFP module slots quantity	2
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity	16

Network
VLAN support	Yes
Link aggregation	Yes
Broadcast storm control	Yes
Rate limiting	Yes
Spanning tree protocol	Yes
Flow control support	Yes
Auto MDI/MDI-X	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Auto-negotiation	Yes
IP routing	Yes
Policy-based routing	Yes
10G support	No
Networking standards	IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z

Data transmission
Packet buffer memory	4.1 MB
Jumbo frames	9
Jumbo frames support	Yes
Forwarding rate	26.78 Mpps
Switching capacity	26.78 Gbit/s
MAC address table	8000 entries

Security
Loop protection	Yes
MAC address filtering	Yes
Static port security	Yes
SSH/SSL support	Yes
BPDU filtering/protection	Yes
Authentication	MAC-based authentication, Port-based authentication
Access Control List (ACL)	Yes
DHCP features	DHCP client, DHCP relay, DHCP snooping

Multicast features
Multicast features	Multicast forwarding
Multicast support	Yes

Design
LED indicators	Yes
Product colour	Black
Form factor	1U
Rack mounting	Yes

Power
Power consumption (max)	181.4 W
AC input frequency	50/60 Hz
AC input voltage	100 - 240 V
Power supply included	Yes
Power source	DC/PoE

Power over Ethernet (PoE)
Total Power over Ethernet (PoE) budget	150 W
Power over Ethernet (PoE)	Yes

Operational conditions
Heat dissipation	619.06 BTU/h
Storage relative humidity (H-H)	5 - 90%
Operating relative humidity (H-H)	10 - 90%
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 50 °C

Weight & dimensions
Height	44 mm
Depth	180 mm
Width	440 mm

Packaging content
User guide	Yes
Cables included	LAN (RJ-45)

Packaging data
Package type	Box

General
Product family	Omada

Certificates
Certification	CE, FCC, RoHS

---
