TP-LINK

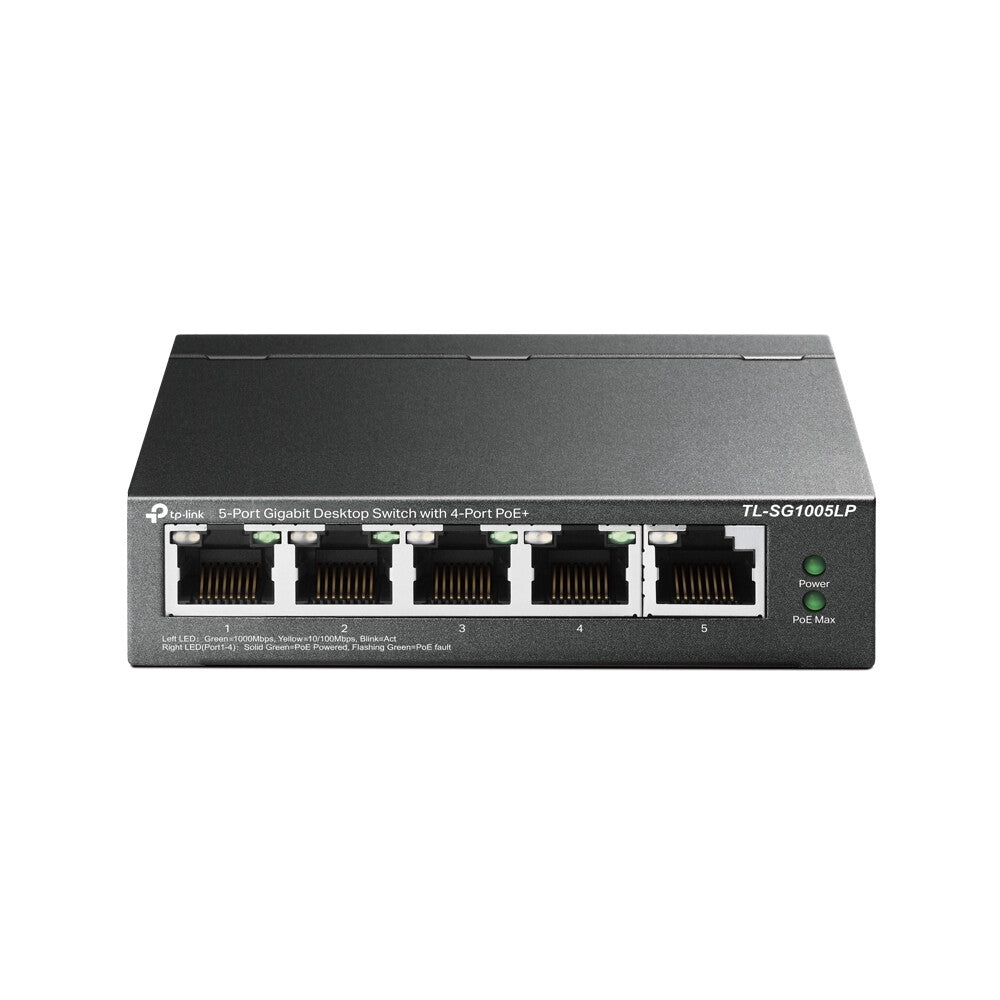

TP-Link TL-SG1005LP network switch Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black

Regular price £41.95 GBP
Tax included.
SKU: TL-SG1005LP

Stock Adequate!Ready to ship

Pairs well with

TP-Link TL-SG1005LP network switch Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black
£41.95 GBP
£41.95 GBP

Payment and security

  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Maestro
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa
  • 5× 10/100/1000 Mbps RJ45 ports
  • With four PoE+ ports, transfers data and power on one single cable
  • Works with IEEE 802.3af/at compliant PDs
  • 802.1p/DSCP QoS enable smooth latency-sensitive traffic
  • Supports PoE Power up to 30 W for each PoE port
  • Supports PoE Power up to 40 W for all PoE ports
  • Plug and play, no configuration and installation required

5x 1G RJ-45, 10 Gbps, 7.44 Mpps, PoE, 99.8×98×25 mm

Professional 5-Port Gigabit Switch with 4 PoE+ Ports
Plug and Play, with PoE power supply which meets the needs of diverse devices.

Dedicated 4-Port PoE+ Switch (40 W Budget) for Numerous Applications
Compliance with the 802.3af/at PoE+ standard supports up to 30 W on each PoE port. The total 40 W PoE power budget for the 4× PoE ports opens up a wide range of applications, such as surveillance for offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, and more.

Intelligent Power Management
When total power consumption exceeds 40 W, the intelligent power management will cut the lower priority port power. This ensures the high priority port’s power supply and protects the device from power overload. It also automatically detects and provides the required power for your PoE devices while protecting your PoE and non-PoE equipment from being damaged.

Advanced Functions for Higher Performance
Administrators can designate the priority of traffic based on QoS, for example, to ensure that voice and video applications remain clear and lag-free.
IGMP Snooping optimizes multimedia traffic delivery, to ensure a better network experience especially for applications like IPTV.

Durable Metal Casing
The interior components of TL-SG1005LP are protected by high-quality metal casing to ensure a long product life. Having passed an array of stringent reliability tests, TL-SG1005LP delivers switching performance you can depend on.


Management features
Switch type Unmanaged
Quality of Service (QoS) support Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity 5
Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity 5
Network
Networking standards IEEE 802.1p, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
10G support No
Copper ethernet cabling technology 10BASE-T, 100BASE-TX, 1000BASE-T
Cable types supported Cat3, Cat4, Cat5, Cat5e, Cat6
MAC address auto-aging supported Yes
MAC address auto-learning supported Yes
Auto-negotiation Yes
Auto MDI/MDI-X Yes
Flow control support Yes
Data transmission
MAC address table 2000 entries
Switching capacity 10 Gbit/s
Forwarding rate 7.44 Mpps
Store-and-forward Yes
Jumbo frames support Yes
Jumbo frames 16000
Security
IGMP snooping Yes
Design
Rack mounting No
Stackable No
Product colour Black
LED indicators Yes
Wall mountable Yes
Performance
Maximum cable length 100 m
Fanless Yes
Power
Power source DC/PoE
Power supply included Yes
AC input voltage 100 - 240 V
AC input frequency 50/60 Hz
DC input voltage 53.5 V
Input current 0.81 A
Power consumption (max) 47.5 W
Power over Ethernet (PoE)
Power over Ethernet (PoE) Yes
Power over Ethernet plus (PoE+) ports quantity 4
Total Power over Ethernet (PoE) budget 40 W
Operational conditions
Operating temperature (T-T) 0 - 40 °C
Storage temperature (T-T) -40 - 70 °C
Operating relative humidity (H-H) 10 - 90%
Storage relative humidity (H-H) 5 - 90%
Heat dissipation 161.98 BTU/h
Weight & dimensions
Width 99.8 mm
Depth 98 mm
Height 25 mm
Packaging content
User guide Yes
Packaging data
Package type Box
Package width 131 mm
Package depth 196 mm
Package height 121 mm
Package weight 730 g
Sustainability
Sustainability compliance Yes
Certificates
Compliance certificates CE, Federal Communications Commission (FCC), RoHS
Certification FCC, CE, RoHS
Logistics data
Harmonized System (HS) code 85176990
