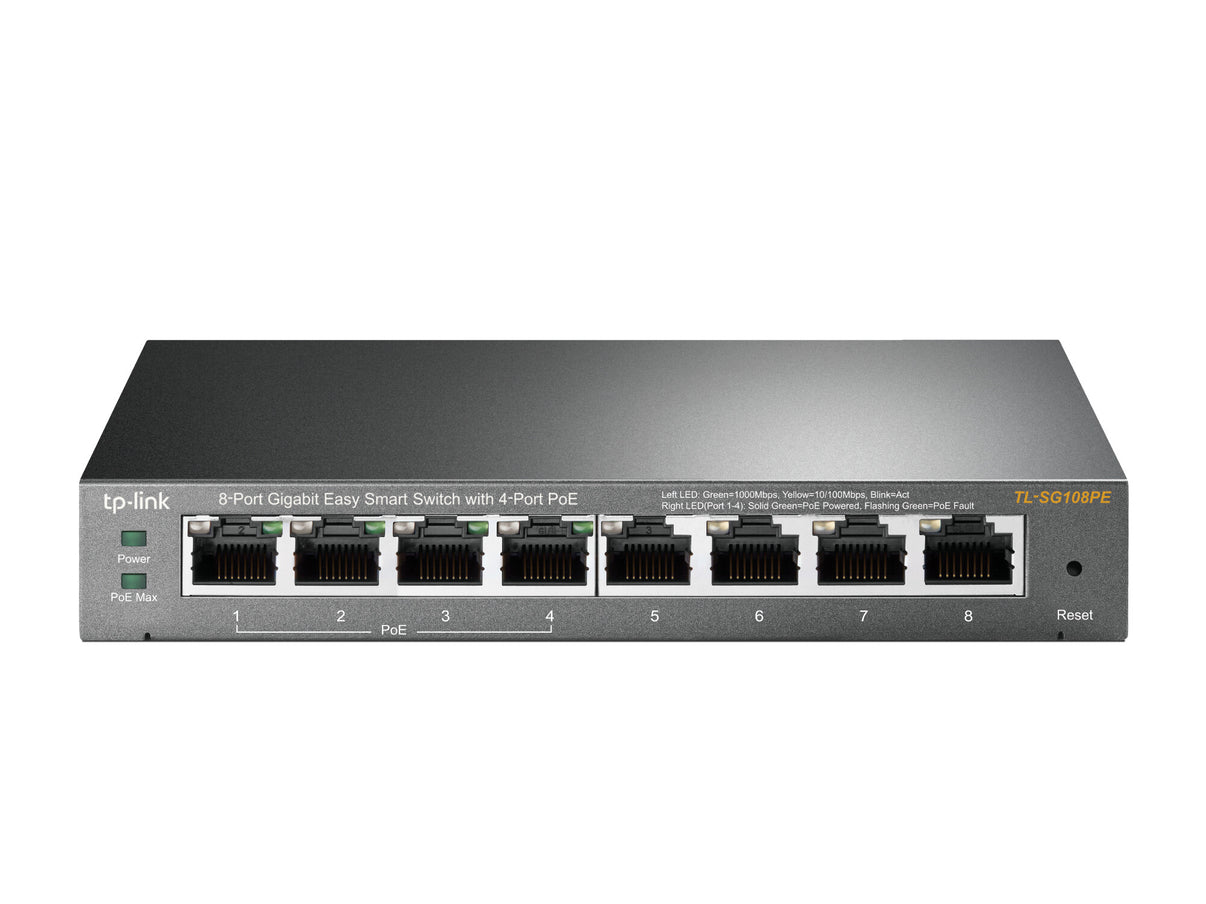

TP-Link 8-Port Gigabit Easy Smart Switch with 4-Port PoE

• 8 10/100/1000Mbps RJ45 ports
• Equipped with 4 802.3af PoE ports with up to 15.4W for each port, data and power can be transferred on one single cable
• Supports PoE power up to 55W for all PoE ports
• Provides network monitoring, traffic prioritization and VLAN features
• Simple network set-up on top of plug-and-play connectivity
• Web-based user interface and Easy Smart Configuration Utility simplify configuration

---

8 10/100/1000Mbps RJ45 Ports, AUTO Negotiation/AUTO MDI/MDIX, IEEE 802.3i/u/ab/af/x, IEEE 802.1q/p, 158 x 101 x 25 mm

---

PoE Switches for Your Ultra Convenience
8-Port Gigabit Easy Smart Switch with 4-Port PoE

Surveillance
Work with IP Cameras
Conference Call
Work with IP Phones
Wi-Fi Coverage
Work with Omada EAPs

Power over Ethernet
4 of the 5 Auto-Negotiation RJ45 ports (Port 1 to Port 4) of the switch support Power over Ethernet (PoE) function. These PoE ports can automatically detect and supply power with those IEEE 802.3af compliant Powered Devices (PDs).

Intelligent Power Management
When total power consumption excels 55W, the intelligent power management will cut the lower priority port power off to ensure the high priority port’s power supply and protect the device from power overload operation.

Management Made Easy
TL-SG108PE offers network monitoring for users to observe traffic behavior. Through its web-based user interface and management utility, the TL-SG108PE offers a variety of useful features, including network monitoring, traffic prioritization, and enhanced QoS.

Sturdy Metal Casing
Sturdy, compact metal casing and shielded RJ45 ports, with desktop/wall-mounting design, to meet your needs in any environment. Besides, fanless design ensures quiet operation.

---

Management features
Switch type	Managed
Switch layer	L2
Quality of Service (QoS) support	Yes
Web-based management	Yes

Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	8
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity	8

Network
Networking standards	IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
10G support	No
Cable types supported	Cat3, Cat4, Cat5, Cat5e, Cat6
Port mirroring	Yes
Rate limiting	Yes
Broadcast storm control	Yes
Link aggregation	Yes
Auto-negotiation	Yes
Auto MDI/MDI-X	Yes
VLAN support	Yes
Virtual LAN features	Port-based VLAN
Number of VLANs	32

Data transmission
MAC address table	4000 entries
Switching capacity	16 Gbit/s
Forwarding rate	11.9 Mpps
Store-and-forward	Yes
Jumbo frames support	Yes
Jumbo frames	15000
Packet forwarding rate (1 Gbps)	11900000 pps
Packet buffer memory	1.5 MB

Security
IGMP snooping	Yes
Loop protection	Yes

Design
Product colour	Black
LED indicators	Activity, Link, PoE, Power, Speed, Status

Power
Power source	DC
Power supply included	Yes
AC input voltage	220 V
AC input frequency	50 Hz
Input current	1.25 A
Input voltage	48 V
Power consumption (max)	65.2 W

Power over Ethernet (PoE)
Power over Ethernet (PoE)	Yes
Power over Ethernet (PoE) ports quantity	4
Power over Ethernet plus (PoE+) ports quantity	4
Power over Ethernet (PoE) power per port	15.4 W
Total Power over Ethernet (PoE) budget	64 W

Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 95%
Heat dissipation	256.19 BTU/h

Weight & dimensions
Width	158 mm
Depth	101 mm
Height	25 mm

Packaging content
Cables included	AC
User guide	Yes

Packaging data
Package type	Box
Package width	131 mm
Package depth	196 mm
Package height	121 mm
Package weight	860 g

Certificates
Certification	FCC, CE, RoHS

Logistics data
Harmonized System (HS) code	85176990

---
