TP-LINK

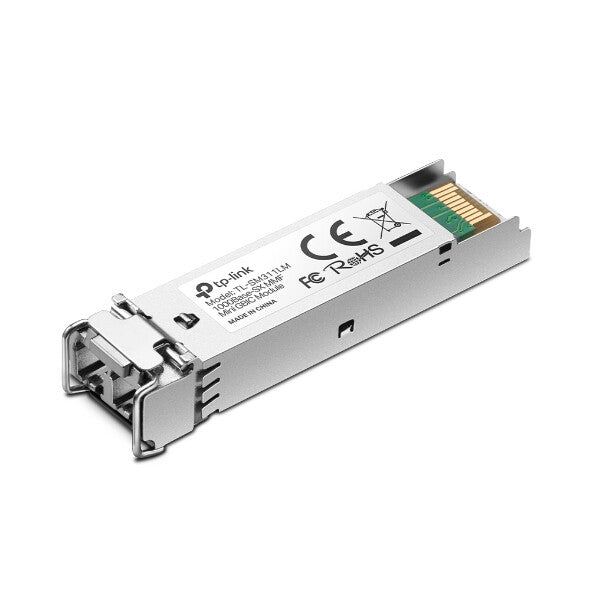

TP-Link Omada SFP 1000BASE-SX LC MiniGBIC Mm
Regular price
£22.95 GBP
Sold outTax included.
SKU:
TL-SM311LM
Out of stock
Pairs well with
£22.95 GBP
- Multi-mode MiniGBIC module
- Applied to T3700G-28TQ, TL-SG5412F/TL-SG5428, TL-SL5428E,TL-SG3210/TL-SG3216/TL-SG3424/TL-SG3424P,TL-SL3428/TL-SL3452, TL-SG2210P/TL-SG2216/TL-SG2424/TL-SG2424P/TL-SG2452, TL-SL2210/TL-SL2218/TL-SL2428/TL-SL2452 and MC220L
SFP 1000BASE-SX LC MiniGBIC Mm
What This Product Does
The TL-SM311 series Fiber Module Cards are introduced for extending transfer distance. Attached to our managed/smart switches, they can extend the distance to several kilometers even tens of kilometers which can basically satisfy the distance requirement of LAN. Users can choose whether and which items to use the fiber modules according to the demand in order to lower cost.
| Performance | |
|---|---|
| SFP transceiver type | Fiber optic |
| Maximum data transfer rate | 1250 Mbit/s |
| Interface type | mini-GBIC/SFP |
| Single-mode fiber (SMF) supported | No |
| Multi-mode fiber (MMF) supported | Yes |
| Fiber optic connector | LC (UPC) |
| Fiber cable diameters supported (core/cladding) | 50/125,62.5/125 µm |
| Maximum transfer distance | 550 m |
| Wavelength | 850 nm |
| Networking standards | IEEE 802.3z |
| Features | |
|---|---|
| Product colour | Metallic |
| Power | |
|---|---|
| Input voltage | 3.3 V |
| Certificates | |
|---|---|
| Compliance certificates | RoHS |
| Certification | FCC, CE |
| Operational conditions | |
|---|---|
| Minimum operating temperature | 0 °C |
| Maximum operating temperature | 70 °C |
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -40 - 80 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Weight & dimensions | |
|---|---|
| Width | 55.4 mm |
| Depth | 13.7 mm |
| Height | 12.9 mm |
| Packaging content | |
|---|---|
| Quantity per pack | 1 pc(s) |
| Packaging data | |
|---|---|
| User guide | Yes |
| Package width | 38 mm |
| Package depth | 207 mm |
| Package height | 38 mm |
| Package weight | 110 g |
| General | |
|---|---|
| Product family | Omada |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 85369010 |
