UBIQUITI

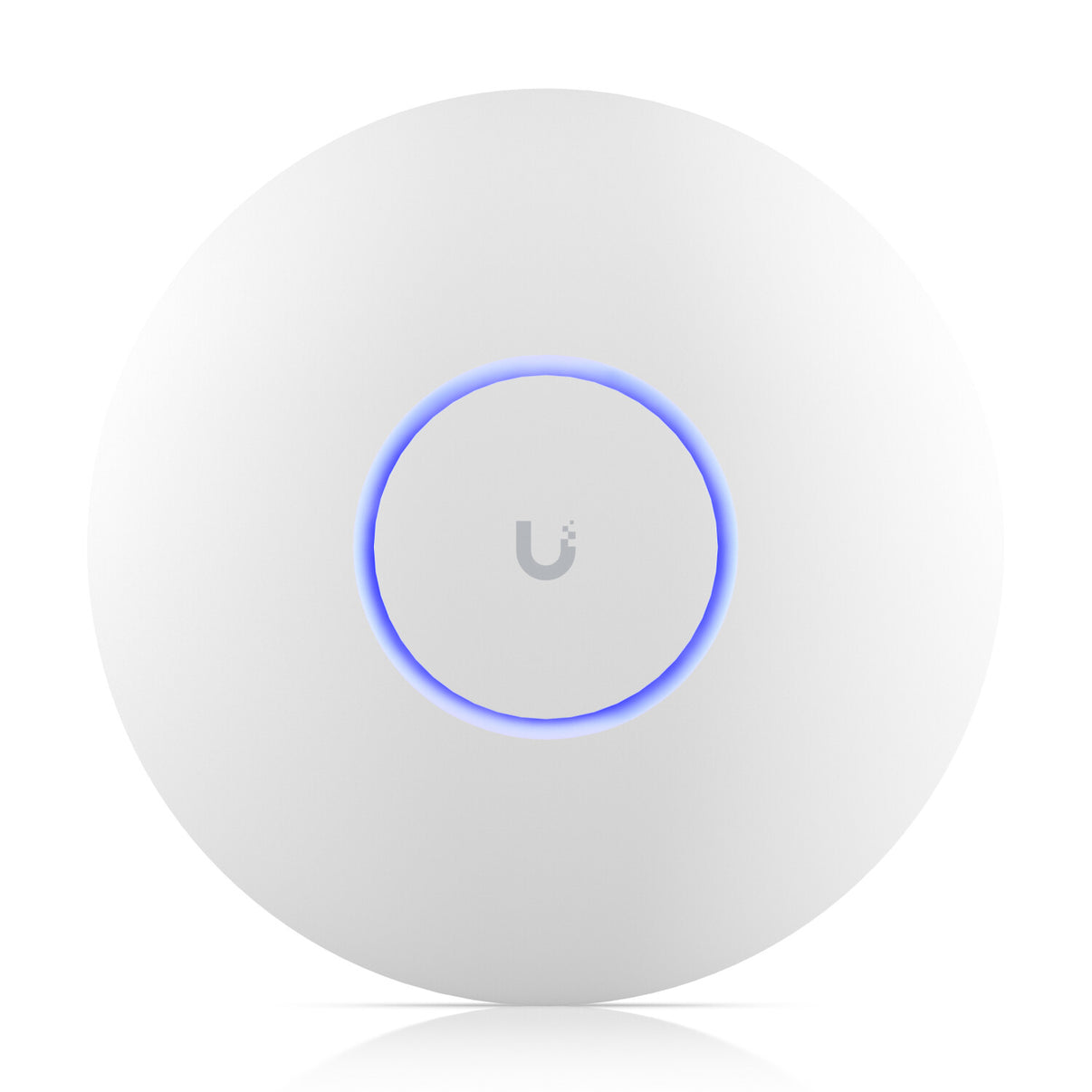

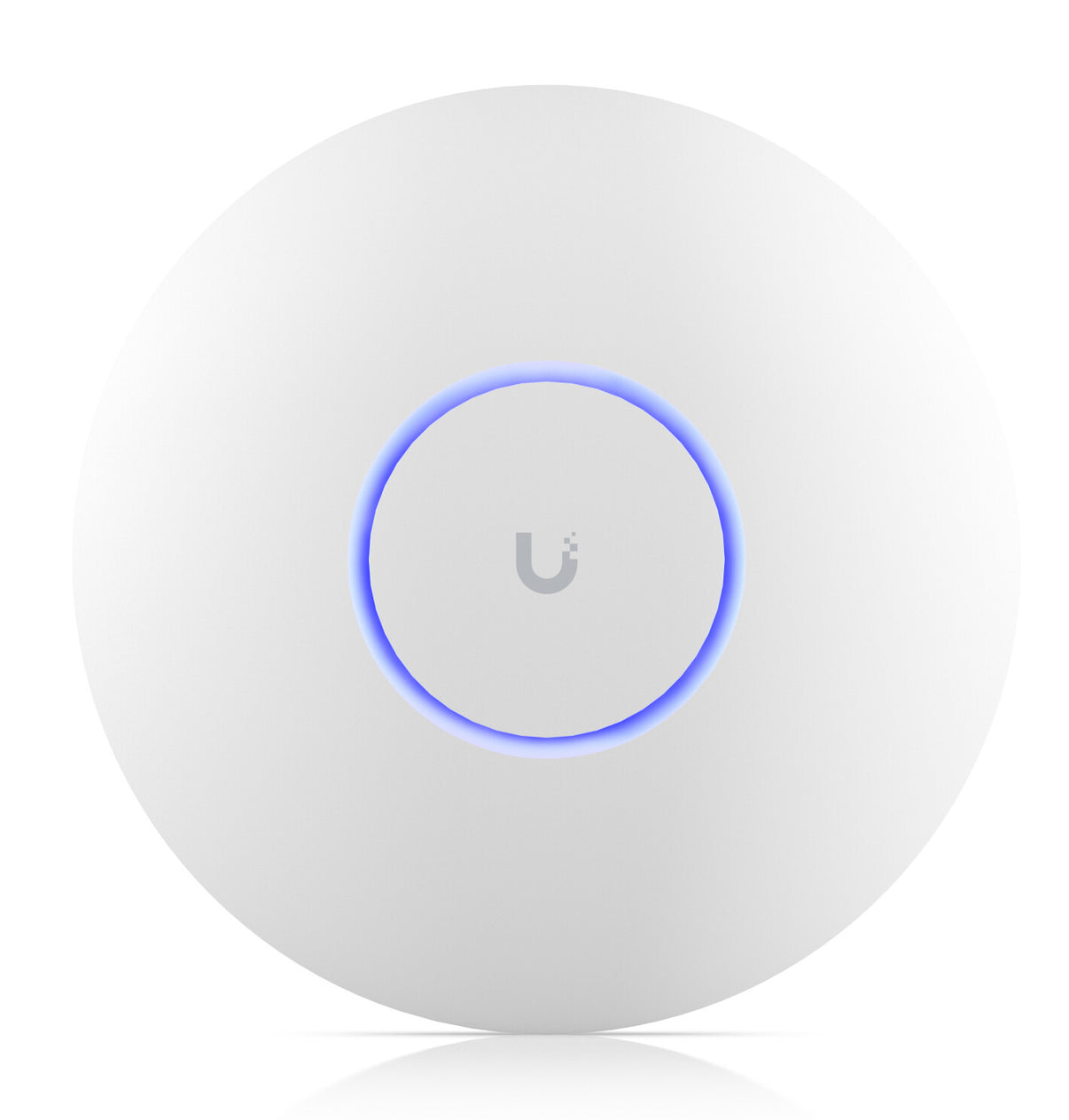

Ubiquiti U7 Pro 5800 Mbit/s White Power over Ethernet (PoE)

£182.95 GBP
Sold out
Tax included.
SKU: U7-PRO

Out of stock

Pairs well with

Ubiquiti U7 Pro 5800 Mbit/s White Power over Ethernet (PoE)
£182.95 GBP
£182.95 GBP

Payment and security

  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Maestro
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa
  • WiFi 7 tri-radio with 6 GHz
  • 6 spatial streams
  • 140 m² (1,500 ft²) coverage
  • 300+ connected devices
  • Powered using PoE+
  • 2.5 GbE uplink
WiFi 7 (802.11a/b/g/n/ac/ax/be), 6 GHz, 140 m2 (1,500 ft2), 2.5 GbE RJ45, PoE+, 300+ clients, 206 x 46 mm, 680 g, polycarbonate, metal

Ceiling-mounted WiFi 7 AP with 6 spatial streams and 6 GHz support for interference-free WiFi in demanding, large-scale environments.

Features
2.4 GHz Yes
6 GHz Yes
5 GHz Yes
Maximum data transfer rate 5800 Mbit/s
Maximum data transfer rate (2.4 GHz) 688 Mbit/s
Maximum data transfer rate (6 GHz) 5800 Mbit/s
Maximum data transfer rate (5 GHz) 4300 Mbit/s
Ethernet LAN data rates 1000,2500 Mbit/s
Throughput data rate 5765 Mbit/s
Frequency band 2.4 - 6 GHz
Networking standards IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11be, IEEE 802.11g, IEEE 802.11k, IEEE 802.11n, IEEE 802.11r, IEEE 802.11v, IEEE 802.1Q, IEEE 802.3at
Coverage area 140 m²
Number of users 300 user(s)
MIMO Yes
MIMO type Multi User MIMO
Fit AP mode features Hotspot 2.0
Fast roaming Yes
VLAN support Yes
Rate limiting Yes
Band steering Yes
Quality of Service (QoS) support Yes
Maximum Tx power (2.4 GHz) 22 dBmW
Maximum Tx power (5 GHz) 26 dBmW
Maximum Tx power (6 GHz) 23 dBmW
Security
Security algorithms PPSK, WPA, WPA-Enterprise, WPA-PSK, WPA2, WPA3
Ports & interfaces
Ethernet LAN (RJ-45) ports 1
WAN connection Ethernet (RJ-45)
Power
Power over Ethernet (PoE) type supported PoE+
Power over Ethernet (PoE) Yes
DC voltage range 44 - 57 V
Power consumption (max) 21 W
Design
Placement Ceiling, Wall
Product colour White
Housing material Metal, Polycarbonate (PC)
Reset button Yes
LED indicators Yes
Antenna
Antenna type Internal
Antenna gain level (max) 6 dBi
Certificates
Compliance certificates CE, Federal Communications Commission (FCC), Industry Canada (IC)
Weight & dimensions
Width 206 mm
Depth 206 mm
Height 46 mm
Weight 680 g
Packaging content
Quantity per pack 1 pc(s)
Mounting kit Yes
Operational conditions
Operating relative humidity (H-H) 5 - 95%
Operating temperature (T-T) -30 - 60 °C
Sustainability
Sustainability compliance Yes
View details
