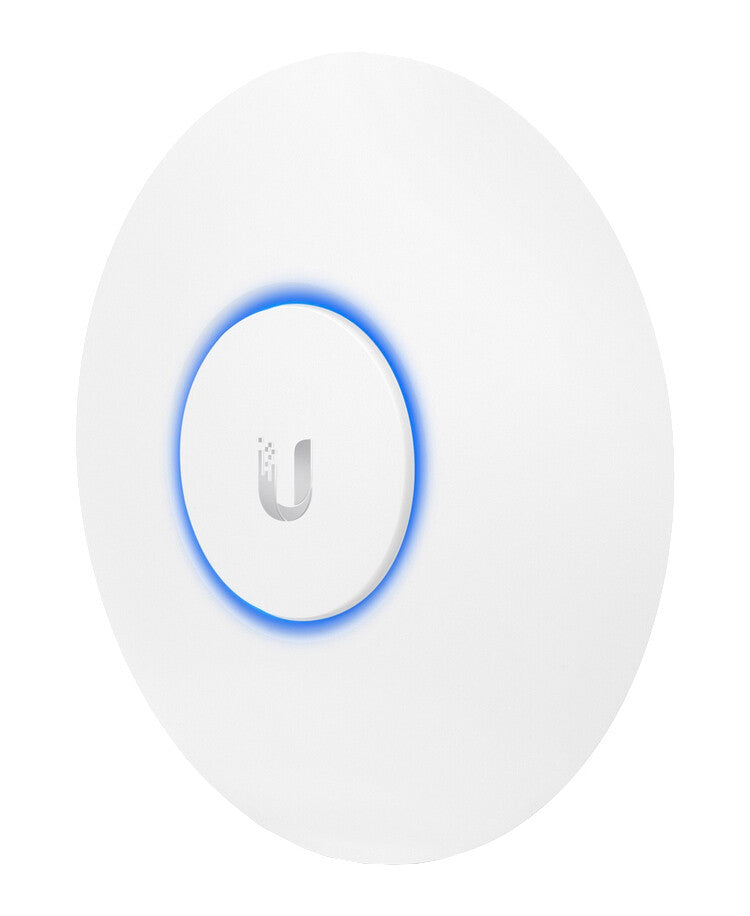

Ubiquiti UAP-AC-PRO wireless access point 1300 Mbit/s White Power over Ethernet (PoE)

• 2.4 GHz
• 5 GHz
• Maximum data transfer rate: 1300 Mbit/s
• IEEE 802.11ac, IEEE 802.11k, IEEE 802.11n, IEEE 802.11r, IEEE 802.11v
• AES, TKIP, WEP, WPA, WPA2
• Power over Ethernet (PoE)
• Antennas quantity: 3

---

UAP-AC-PRO - Indoor/Outdoor, 2.4GHz/5GHz, 802.11 a/b/g/n/ac, 2x 10/100/1000, 1x USB 2.0, 802.3af PoE, 802.3at PoE+

---

Scalable Enterprise Wi-Fi Management
UniFi® is the revolutionary Wi-Fi system that combines enterprise performance, unlimited scalability, and a central management controller. UniFi 802.11AC Dual‑Radio Access Points (APs) have a refined industrial design and can be easily installed using the included mounting hardware.
Easily accessible through any standard web browser, the UniFi Controller software is a powerful software engine ideal for high-density client deployments requiring low latency and high uptime performance.
Use the UniFi Controller software to quickly configure and administer an enterprise Wi-Fi network – no special training required. RF map and performance features, real-time status, automatic UAP device detection, and advanced security options are all seamlessly integrated.

Save money and save time
Unlike traditional enterprise Wi-Fi systems that use a hardware controller, UniFi comes bundled with a non-dedicated software controller that can be deployed on an on-site PC, Mac, or Linux machine; in a private cloud; or using a public cloud service.
Powerful Hardware
The UniFi 802.11AC Dual-Radio APs feature the latest in Wi-Fi 802.11AC MIMO technology.
Intuitive UniFi Controller Software
Configure and manage your APs with the easy-to-learn user interface.
Expandable
Unlimited scalability: build wireless networks as big or small as needed. Start with one (or upgrade to a three‑pack) and expand to thousands while maintaining a single unified management system.

UAP-AC-PRO
Deploy the UniFi AC Pro AP indoors or outdoors, in wireless networks requiring maximum performance.
Sporting a weatherproof design, the UniFi AC Pro AP features simultaneous, dual-band, 3x3 MIMO technology and convenient 802.3af PoE/802.3at PoE+ compatibility. It is available in single- and five‑packs.

---

Features
Maximum indoor range	122 m
Networking standards	IEEE 802.11ac, IEEE 802.11k, IEEE 802.11n, IEEE 802.11r, IEEE 802.11v
Ethernet LAN data rates	10,100,1000 Mbit/s
Wi-Fi data rate (max)	1300 Mbit/s
Maximum data transfer rate	1300 Mbit/s
5 GHz	Yes
2.4 GHz	Yes

Security
Security algorithms	AES, TKIP, WEP, WPA, WPA2

Ports & interfaces
USB 2.0 ports quantity	1
Ethernet LAN (RJ-45) ports	2

Power
Power consumption (max)	9 W
Input current	0.5 A
AC input voltage	48 V
Power over Ethernet (PoE)	Yes

Design
Internal	No
Reset button	Yes
Product colour	White

Antenna
Antenna gain level (max)	3 dBi
Antennas quantity	3

Certificates
Certification	CE, FCC, IC

Weight & dimensions
Weight	350 g
Height	35 mm
Depth	196.7 mm
Width	196.7 mm

Packaging content
Mounting kit	Yes
PoE adapter included	Yes
Quantity per pack	1 pc(s)

Operational conditions
Operating temperature (T-T)	-10 - 70 °C
Operating relative humidity (H-H)	5 - 95%

Logistics data
Harmonized System (HS) code	85176990
