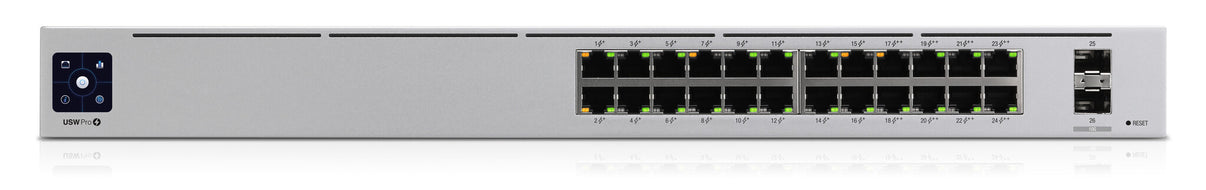

Ubiquiti UniFi Pro 24-Port PoE Managed L2/L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Silver

• Managed L2/L3 Web-based management
• Quality of Service (QoS) support
• Basic switching RJ-45 Ethernet ports quantity: 24
• 10G support
• MAC address table: 16000 entries Switching capacity: 88 Gbit/s
• 1U Rack mounting
• AC Power supply included Power over Ethernet (PoE)

---

USW-Pro-24-POE Gen 2, AC/DC, Internal, 450W, (24) 10/100/1000 RJ45 Ports, (2) 1/10G SFP+, 442.4 x 285.4 x 43.7 mm

---

Second-Generation UniFi Switching
We’ve redesigned our UniFi Switches from the ground up.

Near Silent Cooling
Our new airflow design reduces the need for fan usage.

Powerful Hardware and Software
UniFi Switches offer a variety of features, including 10G SFP+ ports, PoE+ or PoE++ support, and Layer 3* switching capabilities.

Redundant Power System
UniFi SmartPower RPS, USP-RPS, is our PSU failover system.

Power Supply Failure
In the event of a UniFi switch power supply failure, the USP-RPS automatically supplies redundant power to the failed device.

UniFi SmartPower
One UniFi SmartPower device can support up to 6 devices until the failed device is replaced.

Touchscreen Display
The 1.3" touchscreen display allows easy monitoring and quick troubleshooting.

---

Management features
Switch type	Managed
Switch layer	L2/L3
Quality of Service (QoS) support	Yes
Web-based management	Yes
System event log	Yes

Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	24
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
SFP+ module slots quantity	2
Power connector	AC-in jack

Network
Networking standards	IEEE 802.3af, IEEE 802.3at
10G support	Yes
Port mirroring	Yes
Full duplex	Yes
IPv4 routes	64
Rate limiting	Yes
Broadcast storm control	Yes
Link aggregation	Yes
Flow control support	Yes
VLAN support	Yes
Number of VLANs	1000

Data transmission
MAC address table	16000 entries
Switching capacity	88 Gbit/s
Throughput	44000 Mpps
Forwarding rate	65.472 Mpps
Static route	Yes
Jumbo frames support	Yes
Packet buffer memory	2 MB

Security
DHCP features	DHCP relay, DHCP server, DHCP snooping
IGMP snooping	Yes
Authentication type	IEEE 802.1x, RADIUS

Design
Rack mounting	Yes
Form factor	1U
Product colour	Silver
Reset button	Yes
LED indicators	Activity, Link, PoE, Speed, System
Display type	LCM

Power
Power source	AC
Power supply included	Yes
Redundant power supply (RPS) support	Yes
Number of power supply units	1
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (max)	450 W

Power over Ethernet (PoE)
Power over Ethernet (PoE)	Yes
Power over Ethernet plus (PoE+) ports quantity	16
Power over Ethernet 4PPoE (PoE++) ports quantity	8
Power over Ethernet (PoE) power per port	64 W
Total Power over Ethernet (PoE) budget	400 W

Operational conditions
Operating temperature (T-T)	-5 - 40 °C
Operating relative humidity (H-H)	10 - 90%

Weight & dimensions
Width	442.4 mm
Depth	285.4 mm
Height	43.7 mm
Weight	4.3 kg

General
Product family	UniFi

Certificates
Certification	CE, FCC, IC

Logistics data
Harmonized System (HS) code	85176990

---
