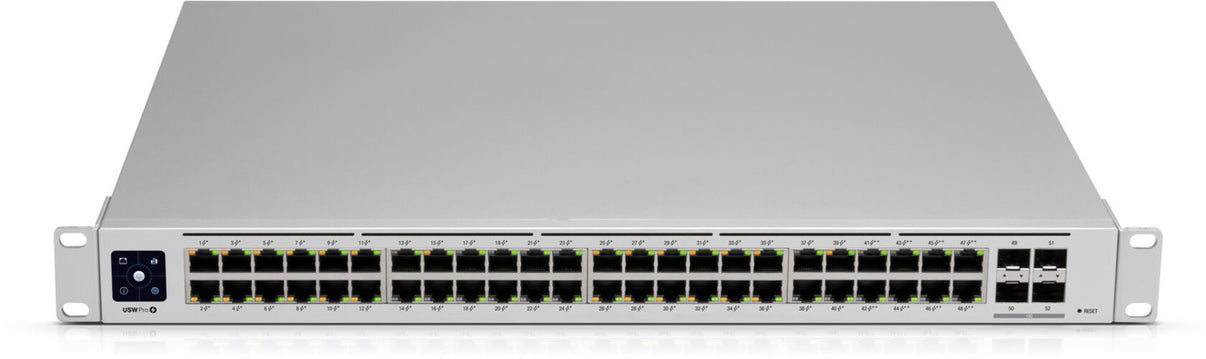

Ubiquiti UniFi USW-PRO-48 network switch Managed L2/L3 Gigabit Ethernet (10/100/1000) 1U Silver

• (48) Gigabit RJ45 ports
• (4) 10G SFP+ ports
• Layer 2 and Layer 3 features
• UniFi SmartPower RPS DC input
• Near-silent cooling
• 1.3" touchscreen display
• Managed by UniFi Network Controller

---

48x Gigabit Ethernet, 4x 10G SFP+, L2/L3, 1.3" Touch, 176Gbps, 60W

---

UniFi Switch Pro 48 is a fully managed Layer 3 switch with (48) Gigabit Ethernet ports. (4) 10G SFP+ uplinks offer link aggregation for higher capacity and increased availability.

The UniFi Switch Pro 48 features a rich set of Layer 2 capabilities and integrates Layer 3 functionality such as inter-VLAN routing, static routing, and DHCP server. The UniFi Switch Pro 48 is an ideal aggregation and access layer switch for any UniFi solution – it combines innovative near-silent cooling with UniFi SmartPower RPS power redundancy. UniFi Network Controller and UniFi Network mobile app allow admins to configure and monitor virtually all of the switch features in an intuitive graphical user interface from anywhere.

---

Management features
Switch type	Managed
Switch layer	L2/L3

Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	48
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
SFP+ module slots quantity	4

Network
Networking standards	IEEE 802.1x
10G support	Yes
Port mirroring	Yes
Spanning tree protocol	Yes
Broadcast storm control	Yes
Link aggregation	Yes
Flow control support	Yes
VLAN support	Yes

Data transmission
Switching capacity	176 Gbit/s
Forwarding rate	130.944 Mpps

Security
Authentication type	IEEE 802.1x, RADIUS

Design
Rack mounting	Yes
Form factor	1U
Product colour	Silver
LED indicators	Activity, Link, Speed
Backlight display	Yes

Power
Power supply included	Yes
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
DC input voltage	11.5 V
Input current	5.22 A
Power consumption (max)	60 W

Power over Ethernet (PoE)
Power over Ethernet (PoE)	No

Operational conditions
Operating temperature (T-T)	-5 - 45 °C
Operating relative humidity (H-H)	10 - 90%

Weight & dimensions
Width	442.4 mm
Depth	285.4 mm
Height	43.7 mm
Weight	4 kg

Packaging content
User guide	Yes

General
Product family	UniFi

Certificates
Certification	CE, FCC, IC ETSI300-019-1.4

Logistics data
Harmonized System (HS) code	85176990

---
