Stock Adequate！Ready to ship
- 2200 W 200 - 240 V 50/60 Hz
- Motherboard power connector: 20+4 pin ATX
- PC ATX 80 PLUS Platinum
- Active 13.5 cm
- Black
2200W, 135 mm FDB Silent Fan, 210 x 150 x 86 cm

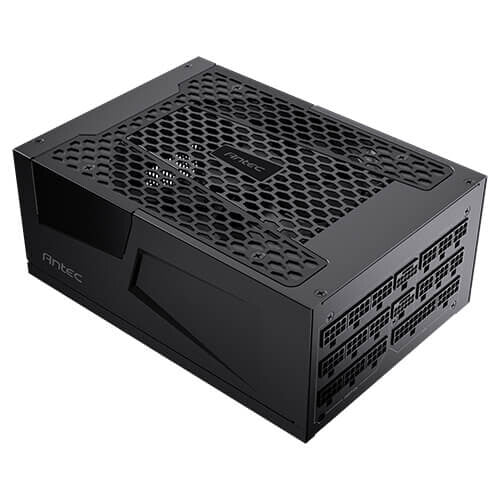

Introducing the Signature 2200 Platinum ATX 3.1 Power Supply. The Signature 2200 Platinum ATX3.1 is Antecââ¬â¢s high-performance ATX 3.1 power supply,designed to support modern, power-demanding systems. It features key industry standards including ATX 3.1 and PCIe 5.1 compliance, 100% high-quality Japanese capacitors, fully modular cabling, and up to 94% efficiency certified by 80 PLUSî Platinum. Built for reliability and efficiency, the Signature 2200 is a solid foundation for advanced PC builds.
With robust GPU support, server-grade PhaseWaveâ⢠design, and quiet thermal performance, this power supply is engineered for AI computing, professional workloads, workstations, and next-generation PC enthusiasts. Delivering reliable, high-efficiency power, itââ¬â¢s ideal for AI-driven applications.
ATX 3.1 & PCIe 5.1 Compatible
Fully compliant with the latest ATX 3.1 standard, the Signature 2200 ensures top-tier reliability and power efficiency. The bundled PCIe 5.1 12V-2x6 GPU cables provide robust support for modern high-performance graphics cards.
100% High-Quality JP Capacitors
Built entirely with premium Japanese capacitors, the Signature 2200 Platinum ATX3.1 delivers ultra-tight voltage regulation, minimal ripple, and long-term stability.
PhaseWave TM Design
Server-grade full-bridge LLC architecture with synchronous rectification and DC-DC topology ensures consistently efficient and stable power delivery across all rails.
135mm FDB Silent Fan
Equipped with a whisper-quiet 135mm fluid-dynamic bearing fan for high airflow, durability, and near-silent operation even under load.
Full Modular
Cable Management
Reduces cable clutter and improves airflow with fully modular cables. Use only what you need for a clean, streamlined build and optimal thermal performance.
Compact
High-Power Design
Delivering up to 2200W of power, the Signature 2200 Platinum ATX 3.1 is built in a compact chassis, allowing for greater compatibility with a wide range of high-end cases compared to many other high-wattage PSUs.
| Power |
|---|
| Power protection features |
Over current, Over voltage, Short circuit, Under voltage |
| Max output current (+5Vsb) |
3 A |
| Max output current (-12V) |
0.5 A |
| Max output current (+5V) |
25 A |
| Max output current (+12V) |
183.33 A |
| Max output current (+3.3V) |
25 A |
| Combined power (+5Vsb) |
15 W |
| Combined power (-12V) |
6 W |
| Combined power (+5V) |
125 W |
| Combined power (+12V) |
2200 W |
| Combined power (+3.3V) |
125 W |
| Power Factor Correction (PFC) type |
Active |
| Input current |
15 A |
| AC input frequency |
50/60 Hz |
| AC input voltage |
200 - 240 V |
| Total power |
2200 W |
| Ports & interfaces |
|---|
| Cabling type |
Fully-Modular |
| CPU power cable length |
70 cm |
| CPU power connector (4+4 pin) |
Yes |
| PCI Express power cable length |
75 cm |
| PCI Express power connectors (12+4 pin) cable length |
700 mm |
| PCI Express power connectors (12+4 pin) |
2 |
| PCI Express power connectors (6+2 pin) |
4 |
| Peripheral (Molex) power cable length |
120,450 mm |
| Peripheral (Molex) power connectors (4-pin) |
3 |
| SATA power cable length |
150,500 mm |
| Number of SATA power connectors |
18 |
| Motherboard power cable length |
61 cm |
| Motherboard power connector |
20+4 pin ATX |
| Performance |
|---|
| ATX version |
3.1 |
| 80 PLUS certification |
80 PLUS Platinum |
| Power supply unit (PSU) form factor |
ATX |
| Purpose |
PC |
| Design |
|---|
| Number of fans |
1 fan(s) |
| Fan diameter |
13.5 cm |
| Cooling type |
Active |
| Product colour |
Black |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 50 ðC |
| General |
|---|
| Product family |
SIGNATURE |
| Weight & dimensions |
|---|
| Weight |
4.43 kg |
| Height |
205 mm |
| Depth |
600 mm |
| Width |
505 mm |
| Packaging data |
|---|
| Package weight |
4.85 kg |
