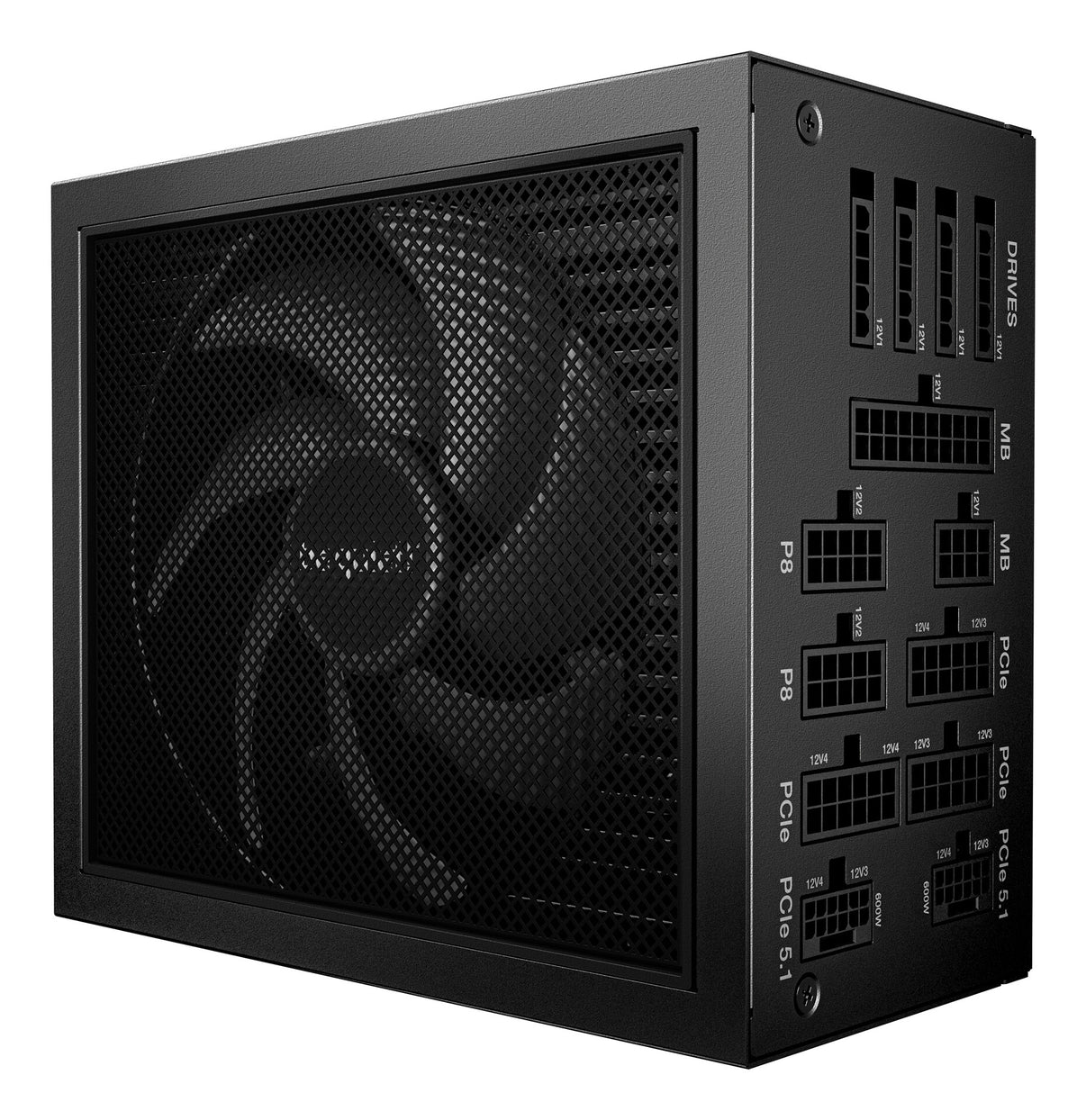

be quiet! Dark Power 14 1200 W - 80 Plus Titanium power supply unit 20+4 pin ATX ATX Black

• 80 PLUS® Titanium and Cybenetics Titanium efficiency (up to 95.42 %)
• ATX 3.1 PSU with full support for PCIe 5.1 GPUs and GPUs with 6+2-pin connector
• Active and semi-passive cooling can be selected with the push of a button
• Aluminum heat sink to support the semi-passive cooling concept and improve the longevity of the components
• Silent Wings fan for virtually inaudible operation
• Full bridge + Synchronous Rectifier + LLC technology provides unmatched signal stability and extremely high efficiency
• Button to switch between single and multi-rail operation
• Full-mesh front with funnel-shaped air inlet upholds the high air circulation abilities
• Modular cable management for maximum convenience
• Product conception, design and quality control in Germany

---

1200W, 80 PLUS Titanium, ATX 3.1, EPS 12V 2.92, 175 x 150 x 86 mm

---

No compromise silence and performance
Dark Power 14 1200W claims nothing less than the top spot. This powerhouse features a high-performance heat sink design with an integrated fan and can be operated in either active or semi-passive mode.

---

Power
Power protection features	Over current, Over voltage, Overheating, Overload, Short circuit, Surge & inrush protection (SIP), Under voltage
Efficiency	93.1%
Hold time	19.5 ms
Max output current (+5Vsb)	3 A
Max output current (-12V)	0.5 A
Max output current (+5V)	24 A
Max output current (+12V3)	45 A
Max output current (+12V4)	45 A
Max output current (+12V2)	33 A
Max output current (+12V1)	33 A
Max output current (+3.3V)	25 A
Combined power (+5V)	120 W
Combined power (+12V)	1200 W
Combined power (+3.3V)	120 W
Number of +12V rail(s)	4
Power factor	0.98
Maximum input current (@220V)	5 A
Maximum input current (@110V)	10 A
AC input frequency	50/60 Hz
AC input voltage	100 - 240 V
Peak power	1300 W
Total power	1200 W

Ports & interfaces
Cabling type	Fully-Modular
PCI Express connector	Yes
ATX power connector (20+4 pin)	Yes
CPU power cable length	70 cm
CPU power connector (4+4 pin)	Yes
PCI Express power cable length	60 cm
PCI Express power connectors (12-pin)	2
PCI Express power connectors (6+2 pin)	4
EPS power connector (4+4 pin)	Yes
EPS power connector (8-pin)	Yes
Peripheral (Molex) power cable length	900,1050 mm
Peripheral (Molex) power connectors (4-pin)	2
Number of SATA power cables	4
SATA power cable length	600,750,900,1050 mm
Number of SATA power connectors	13
Motherboard power cable length	60 cm
Motherboard power connector	20+4 pin ATX

Performance
Mean time between failures (MTBF)	100000 h
Bearing technology	FDB
Noise level	21.1 dB
EPS version	2.92
ATX version	3.1
80 PLUS certification	80 PLUS Titanium
Power supply unit (PSU) form factor	ATX
Purpose	PC

Design
On/off fan switch	Yes
On/off switch	Yes
Fan speed	0 - 2100 RPM
Number of fans	1 fan(s)
Fan diameter	13.5 cm
Cooling type	Active
Product colour	Black

Operational conditions
Operating temperature (T-T)	0 - 40 °C

Certificates
Compliance certificates	CB, Federal Communications Commission (FCC), RoHS, TÃƒà “V mark, UKCA, WEEE, cTUVus

Weight & dimensions
Weight	2.3 kg
Height	86 mm
Depth	175 mm
Width	150 mm

Packaging data
Package weight	3.7 kg
Package height	355 mm
Package depth	126 mm
Package width	230 mm
Manual languages	Simplified Chinese, German, English, Spanish, French, Italian, Japanese, Polish, Russian, Thai, Ukrainian
Manual	Yes

Technical details
Sustainability certificates	ENERGY STAR, ErP, Triman

Logistics data
Shipping (inner) case length	52.8 cm
Shipping (inner) case width	36.8 cm
Shipping (inner) case height	26 cm
Products per shipping (inner) case	4 pc(s)
Shipping (inner) case net weight	20.1 kg

Other features
Cable ties included	Yes
Screws included	Yes

---
