Stock Adequate！Ready to ship
- 80 PLUS® Platinum and Cybenetics Platinum efficiency rating (up to 94.3%)
- Semi-passive zero-RPM cooling
- Fan runs on for 2-5 minutes to avoid frequent starting noise
- Pure Wings 3 140mm fan for quiet and efficient cooling
- 2 x 90° angled 12V-2x6 connectors and PCIe 5.1/ATX 3.1 compatibility
- Advanced voltage regulation and stability thanks to LLC technology
- One massive high-performance 12V-rail
- Unique look with an unmistakable mesh design
- Product conception, design and quality control in Germany

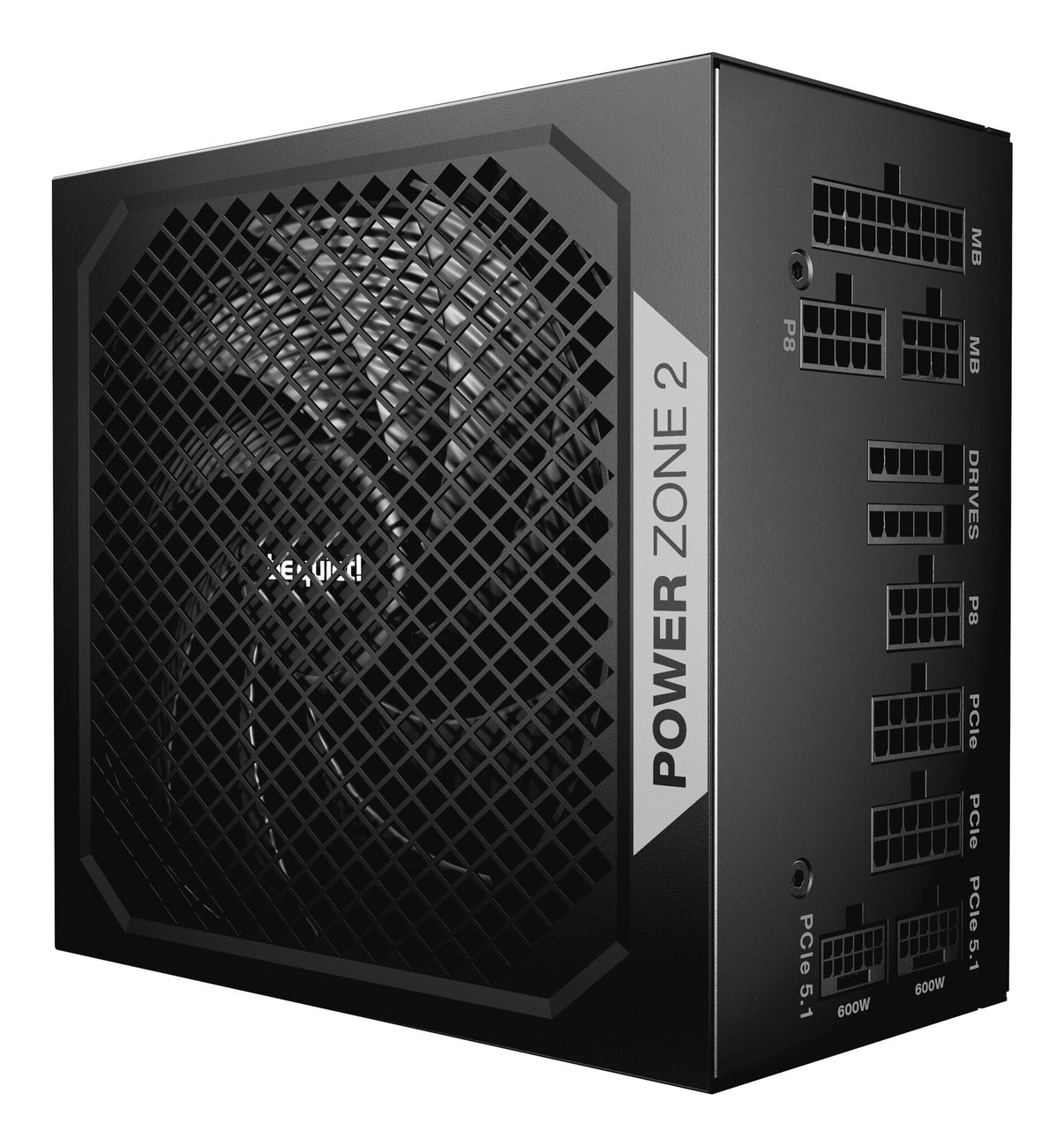

80 PLUS Platinum, 1200W, PCIe 5.1/ATX 3.1, 160 x 150 x 86mm
Exceptional efficiency for Gamers
Power Zone 2 1200W is a power supply with 80 PLUS® Platinum certification and semi-passive zero-RPM cooling for both efficient and quiet gaming sessions. With 90° angled 12V-2x6 connectors in the scope of delivery and PCIe 5.1/ATX 3.1 compatibility, Power Zone 2 supports the latest graphics cards and constitutes a reliable investment for the future.
| Power |
|---|
| Power protection features |
Over current, Over power, Over voltage, Overheating, Short circuit, Surge & inrush, Under voltage |
| Efficiency |
92.7% |
| Hold time |
20.42 ms |
| Max output current (+5Vsb) |
3 A |
| Max output current (-12V) |
0.3 A |
| Max output current (+5V) |
20 A |
| Max output current (+12V) |
100 A |
| Max output current (+3.3V) |
20 A |
| Combined power (+5Vsb) |
15 W |
| Combined power (-12V) |
6 W |
| Combined power (+5V) |
120 W |
| Combined power (+12V) |
1200 W |
| Combined power (+3.3V) |
120 W |
| Number of +12V rail(s) |
1 |
| Power factor |
0.97 |
| Maximum input current (@220V) |
7.5 A |
| Maximum input current (@110V) |
15 A |
| AC input frequency |
50/60 Hz |
| AC input voltage |
100 - 240 V |
| Peak power |
1270 W |
| Total power |
1200 W |
| Ports & interfaces |
|---|
| Cabling type |
Fully-Modular |
| CPU power cable length |
70 cm |
| CPU power connector (4+4 pin) |
Yes |
| CPU P4 connector (4-pin) |
1 |
| PCI Express power cable length |
60 cm |
| PCI Express power connectors (12-pin) |
2 |
| PCI Express power connectors (6+2 pin) |
3 |
| EPS power connector (8-pin) |
Yes |
| Peripheral (Molex) power cable length |
1000 mm |
| Peripheral (Molex) power connectors (4-pin) |
1 |
| Number of SATA power cables |
2 |
| SATA power cable length |
550,700,850,1000 mm |
| Number of SATA power connectors |
7 |
| Motherboard power cable length |
60 cm |
| Motherboard power connector |
20+4 pin ATX |
| Performance |
|---|
| Mean time between failures (MTBF) |
100000 h |
| Bearing technology |
Rifle |
| Noise level |
25.5 dB |
| EPS version |
2.92 |
| ATX version |
3.1 |
| 80 PLUS certification |
80 PLUS Platinum |
| Power supply unit (PSU) form factor |
ATX |
| Purpose |
PC |
| Design |
|---|
| On/off switch |
Yes |
| Fan speed |
0 - 2100 RPM |
| Number of fans |
1 fan(s) |
| Fan diameter |
14 cm |
| Cooling type |
Active |
| Product colour |
Black |
| Operational conditions |
|---|
| Storage relative humidity (H-H) |
0 - 95% |
| Operating relative humidity (H-H) |
0 - 85% |
| Storage temperature (T-T) |
-40 - 70 °C |
| Operating temperature (T-T) |
0 - 40 °C |
| Certificates |
|---|
| Waste Electrical and Electronic Equipment (WEEE) compliance |
Yes |
| Compliance certificates |
BSMI, CB, CCC, CE, Federal Communications Commission (FCC), RCM, RoHS, TÃœV mark, UKCA, WEEE |
| Weight & dimensions |
|---|
| Weight |
1.88 kg |
| Height |
86 mm |
| Depth |
160 mm |
| Width |
150 mm |
| Packaging data |
|---|
| Package type |
Box |
| Package weight |
3.5 kg |
| Package height |
102 mm |
| Package depth |
328 mm |
| Package width |
248 mm |
| Manual languages |
German, English, Spanish, French, Polish, Russian, Ukrainian |
| Manual |
Yes |
| Technical details |
|---|
| Sustainability certificates |
ENERGY STAR, ErP, Triman |
| Logistics data |
|---|
| Shipping (inner) case length |
43 cm |
| Shipping (inner) case width |
26.5 cm |
| Shipping (inner) case height |
34 cm |
| Products per shipping (inner) case |
4 pc(s) |
| Shipping (inner) case gross weight |
14.9 kg |
| Other features |
|---|
| Cable ties included |
Yes |
| Screws included |
Yes |
