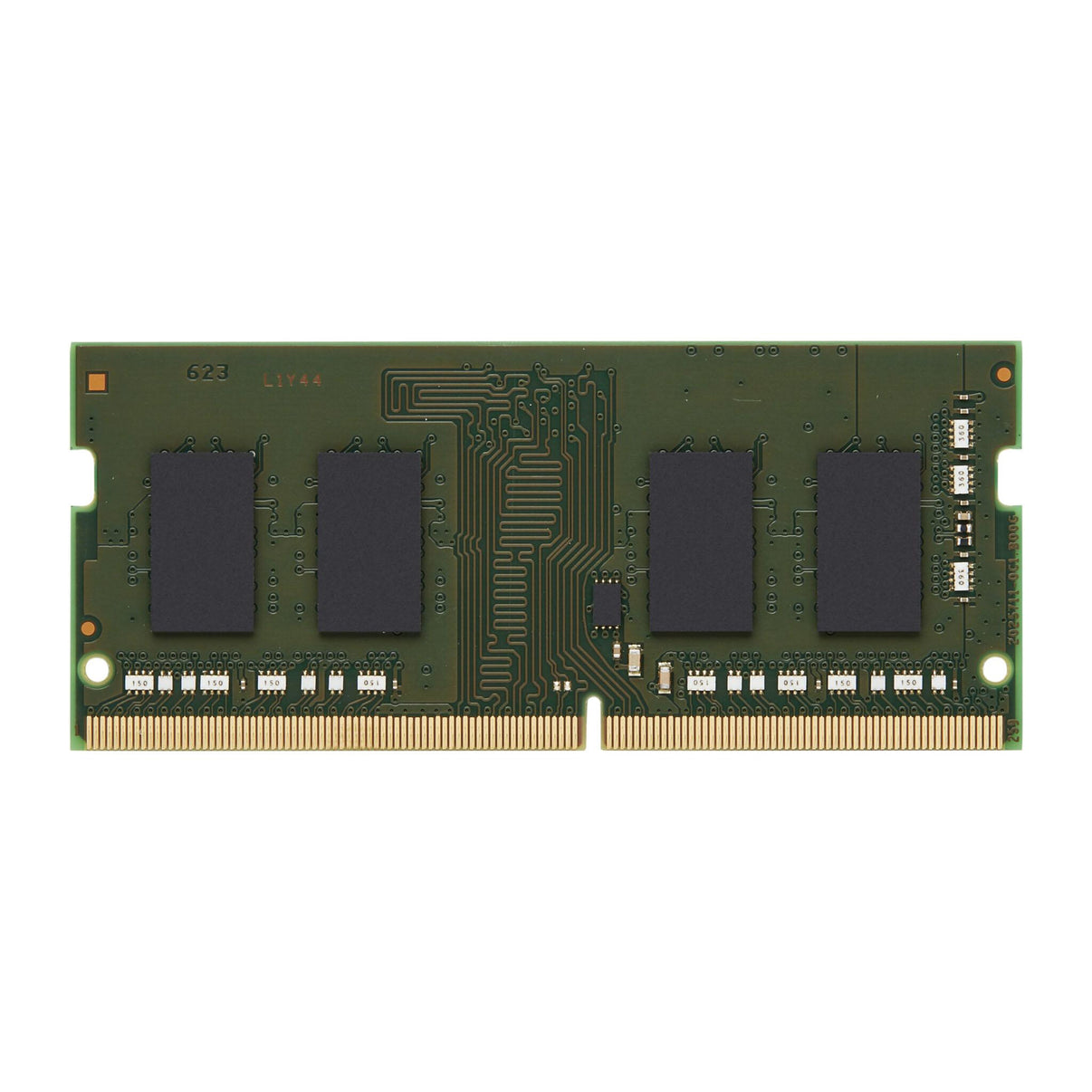

Kingston Technology ValueRAM memory module 16 GB 1 x 16 GB DDR4 3200 MT/s 260-pin SO-DIMM

• Power Supply: VDD = 1.2V Typical
• VDDQ = 1.2V Typical
• VPP = 2.5V Typical
• VDDSPD = 2.2V to 3.6V
• Nominal and dynamic on-die termination (ODT) for
• data, strobe, and mask signals
• Low-power auto self refresh (LPASR)
• Data bus inversion (DBI) for data bus
• On-die VREFDQ generation and calibration
• Single-rank
• On-board I2 serial presence-detect (SPD) EEPROM
• 16 internal banks; 4 groups of 4 banks each
• Fixed burst chop (BC) of 4 and burst length (BL) of 8
• via the mode register set (MRS)
• Selectable BC4 or BL8 on-the-fly (OTF)
• Fly-by topology
• Terminated control command and address bus
• PCB: Height 1.18” (30.00mm)
• RoHS Compliant and Halogen-Free

---

16 GB, DDR4, 3200MT/s, Non-ECC, CL22, 1.2V, Unbuffered, SODIMM

---

ValueRAM's KVR32S22S8/16 is a 2G x 64-bit (16GB) DDR4-3200 CL22 SDRAM (Synchronous DRAM), 1Rx8, non-ECC, memory module, based on eight 2G x 8-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR4-3200 timing of 22-22-22 at 1.2V. This 260-pin DIMM uses gold contact fingers.

---

Features
Country of origin	Taiwan
CAS latency	22
ECC	No
Memory form factor	260-pin SO-DIMM
Component for	Laptop
Memory data transfer rate	3200 MT/s
Internal memory type	DDR4
Memory layout (modules x size)	1 x 16 GB
Internal memory	16 GB
Buffered memory type	Unregistered (unbuffered)

General
Product family	ValueRAM

Weight & dimensions
Height	30 mm
Width	69.6 mm

Logistics data
Harmonized System (HS) code	84733020

---
