- INTEL 14TH GEN CORE i5 PC - DP21 14M is a compact (2.3L) mini PC featuring an Intel 14th Gen. Core i5-14400 processor with 20-core / 28-thread architecture (2.1GHz base frequency, 5.4GHz max. turbo); Windows 11 Pro software pre-installed
- 16GB RAM, UHD GRAPHICS - The system includes 16GB of pre-installed DDR5 memory (2 x SO-DIMMs up to 64GB) and supports 4K display at up to 60Hz - ideal for watching hi-res movies
- The rear I/O includes HDMI 2.0 & DP 1.4 ports for dual monitor setups
- 1TB PCIe M.2 SSD STORAGE- 512GB of pre-installed PCIe M.2 SSD storage ensures faster loading speeds (supports up to 2 x 2.5" HDD/SSD & 1 x M.2 with auto switch)
- The dTPM2.0 (Trusted Platform Module 2.0) technology provides security for storing sensitive data & passwords
- A server-grade thermal module distributes the cooling of different components within the system
- MSI Power Meter & MSI AI Engine - Power Meter enables one-click power saving, carbon emission calculation & electricity cost estimation
MSI PRO DP21 14M Intel Core i5 14400 ( 14th Gen Desktop CPU ), Desktop PC, DP21 14M, SFF, Mini Computer, HTPC, (16GB RAM, 512GB Storage, Windows 11 PRO), Intel Graphics/DDR5/HDMI/DisplayPort/LAN/WiFi 6E/BT 5.3 - PRO DP21 14M i5 14400 FS 16GB 512GB W11P
"MSI PRO DP21 14M Mini PC (SFF):

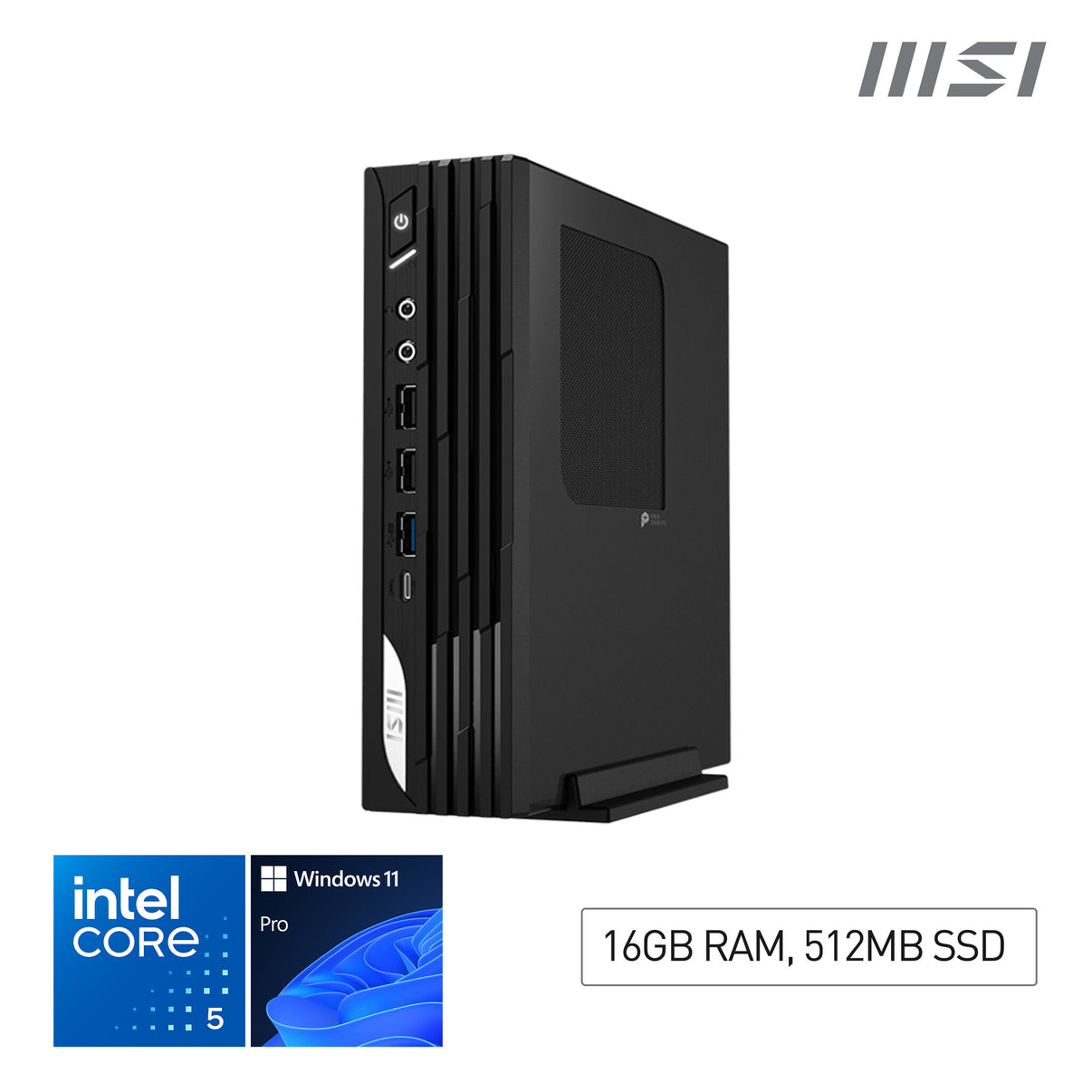

The MSI PRO DP21 14M is a small yet powerful mini-desktop with a compact 2.3L design suitable for commercial office work.
The PRO DP21 14M I5 14400 FS 16GB 512GB W11P is a complete system equipped with an Intel 14th Gen Core i5-14400 processor with 10-core / 16-thread architecture (2.1GHz base frequency, 5.4GHz max. turbo), 16GB DDR5 memory, 512GB of M.2 SSD storage, Intel Wi-Fi 6E & Bluetooth 5.3 connectivity. Windows 11 Pro software is pre-installed.
The easy-to-upgrade SFF case can house both M.2 (with auto switch) & 2 x 2.5-inch SSD/HDD storage, as well as up to 64 GB of system memory (2 x DDR5 SO-DIMMs)
Front & rear I/O include Intel 1Gbps ethernet LAN RJ45, Mic-in, Headphones-out, 8 x USB (10Gbps Type-A & C, 5Gbps Type-A & C, 2.0 Type-A), and HDMI 2.1 & DP 1.4 ports. The PRO DP21 14M also contains a COM port for connecting to POS devices. dTrusted Platform Module 2.0 (dTPM2.0) technology provides security for storing sensitive information."
| Processor |
|---|
| Processor manufacturer |
Intel |
| Processor family |
Intel® Core™ i5 |
| Processor generation |
Intel® Core™ i5 (14th gen) |
| Processor model |
i5-14400 |
| Processor cores |
10 |
| Processor threads |
16 |
| Processor boost frequency |
4.7 GHz |
| Processor frequency |
2.5 GHz |
| Performance cores |
6 |
| Efficient cores |
4 |
| Performance-core Max Turbo Frequency |
4.7 GHz |
| Efficient-core Max Turbo Frequency |
3.5 GHz |
| Performance-core base frequency |
2.5 GHz |
| Efficient-core base frequency |
1.8 GHz |
| Processor cache |
20 MB |
| Processor cache type |
Smart Cache |
| Number of processors installed |
1 |
| Maximum turbo power |
148 W |
| Processor base power |
65 W |
| Neural processor unit (NPU) |
|---|
| Copilot+ PC |
No |
| Neural processor unit (NPU) |
No |
| Memory |
|---|
| Internal memory |
16 GB |
| Maximum internal memory |
64 GB |
| Internal memory type |
DDR5-SDRAM |
| Memory layout (slots x size) |
2 x 8 GB |
| Memory slots |
2x SO-DIMM |
| Memory clock speed |
5600 MHz |
| Memory data transfer rate |
5600 MT/s |
| Buffered memory type |
Clocked unregistered (unbuffered) |
| Non-ECC |
Yes |
| ECC |
No |
| Memory channels |
Dual-channel |
| Storage |
|---|
| Total storage capacity |
512 GB |
| Optical drive type |
No |
| Storage media |
SSD |
| Number of storage drives installed |
1 |
| Number of storage drives supported |
3 |
| Total HDDs capacity |
0 GB |
| Number of SSDs installed |
1 |
| SSD memory type |
TLC |
| SSD capacity |
512 GB |
| NVMe |
Yes |
| SSD interface |
PCI Express 3.0 |
| SSD form factor |
M.2 |
| M.2 SSD size |
2280 (22 x 80 mm) |
| Card reader integrated |
No |
| Intel® Optane™ Memory module installed |
No |
| Graphics |
|---|
| Discrete graphics card |
No |
| On-board graphics card |
Yes |
| Discrete graphics card memory |
0 GB |
| On-board GPU manufacturer |
Intel |
| On-board graphics card family |
Intel® UHD Graphics |
| On-board graphics card model |
Intel® UHD Graphics |
| On-board graphics card cores |
24 |
| On-board graphics card 6K support |
No |
| On-board graphics card 8K support |
Yes |
| Number of external displays supported |
2 |
| Graphics card Open GL support |
Yes |
| Ray tracing acceleration |
No |
| AMD FreeSync |
No |
| CUDA |
No |
| NVIDIA GameWorks VR |
No |
| NVIDIA G-SYNC |
No |
| Graphics card DisplayPorts quantity |
1 |
| Graphics card HDMI ports quantity |
1 |
| Network |
|---|
| Ethernet LAN |
Yes |
| Ethernet LAN data rates |
1000 Mbit/s |
| Cabling technology |
10/100/1000Base-T(X) |
| Wi-Fi |
Yes |
| Top Wi-Fi standard |
Wi-Fi 6E (802.11ax) |
| WLAN controller manufacturer |
Intel |
| Wi-Fi standards |
Wi-Fi 6E (802.11ax) |
| WLAN controller model |
Intel Wi-Fi 6E AX211 |
| Antenna type |
2x2 |
| Bluetooth |
Yes |
| Bluetooth Low Energy (BLE) |
Yes |
| Bluetooth version |
5.3 |
| Wake-on-LAN ready |
Yes |
| Miracast |
Yes |
| Ports & interfaces |
|---|
| USB 2.0 ports quantity |
4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity |
1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity |
1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity |
1 |
| Intel® Thunderbolt 4 |
No |
| Intel® Thunderbolt 5 |
No |
| DVI port |
No |
| HDMI ports quantity |
1 |
| HDMI version |
2.1 |
| DisplayPorts quantity |
1 |
| DisplayPort version |
1.4 |
| Ethernet LAN (RJ-45) ports |
1 |
| Microphone in |
Yes |
| Headphone outputs |
1 |
| Line-in |
Yes |
| Line-out |
Yes |
| Combo headphone/mic port |
No |
| S/PDIF out port |
No |
| DC-in jack |
Yes |
| Fiber NIC port (Flex I/O) |
No |
| Number of front audio ports |
2 |
| Number of front USB ports |
4 |
| Number of rear USB ports |
4 |
| Expansion slots |
|---|
| PCI Express x1 slots |
1 |
| Design |
|---|
| Chassis type |
SFF |
| Colour name |
Black |
| Volume |
2.6 L |
| VESA mounting |
Yes |
| Placement supported |
Horizontal/Vertical |
| Water cooling system |
No |
| Number of 2.5" bays |
2 |
| Cable lock slot |
Yes |
| Cable lock slot type |
Kensington |
| Copilot key |
No |
| Product colour |
Black |
| Introduction month |
June |
| RGB memory lighting |
No |
| Housing material |
Metal, Plastic |
| Introduction year |
2025 |
| Viewing window |
No |
| Country of origin |
China |
| Refurbished |
No |
| Certified refurbished |
No |
| Performance |
|---|
| Product type |
Mini PC |
| Market positioning |
Business |
| Powered by |
MSI |
| Virtual Reality (VR) ready |
No |
| Motherboard chipset |
Intel H610 |
| Motherboard form factor |
micro ATX |
| Compatible processor series |
Intel Core i5 14th Gen |
| Audio chip |
Realtek ALC897 |
| Audio system |
High Definition Audio |
| Audio output channels |
2.1 channels |
| Built-in speaker(s) |
No |
| Password protection |
Yes |
| Password protection type |
BIOS, User |
| Fingerprint reader |
No |
| BIOS type |
UEFI |
| Trusted Platform Module (TPM) version |
2.0 |
| Trusted Platform Module (TPM) |
Yes |
| Sound pressure level |
28 dB |
| Software |
|---|
| Operating system installed |
Windows 11 Pro |
| Operating system architecture |
64-bit |
| Operating system language |
English |
| Windows 11 free upgrade |
Yes |
| Apple Intelligence |
No |
| Drivers included |
Yes |
| Power |
|---|
| Power supply |
120 W |
| Power supply input voltage |
100 - 240 V |
| Power supply input frequency |
50 - 60 Hz |
| Power consumption (max) |
95 W |
| Power consumption (standby) |
8 W |
| Power consumption (typical) |
35 W |
| 80 PLUS certification |
No |
| USB Type-C output power |
15 W |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 35 °C |
| Storage temperature (T-T) |
-20 - 60 °C |
| Operating relative humidity (H-H) |
0 - 85% |
| Storage relative humidity (H-H) |
0 - 90% |
| Operating vibration |
0.25 G |
| Non-operating vibration |
0.5 G |
| Operating shock |
10 G |
| Non-operating shock |
60 G |
| Certificates |
|---|
| PSTI certified |
No |
| Waste Electrical and Electronic Equipment (WEEE) compliance |
Yes |
| Low halogen |
No |
| Compliance certificates |
CE, Federal Communications Commission (FCC), RoHS |
| Weight & dimensions |
|---|
| Width |
204 mm |
| Depth |
208 mm |
| Height |
54.8 mm |
| Weight |
1.27 kg |
| Package width |
271 mm |
| Package depth |
382 mm |
| Package height |
122 mm |
| Package weight |
2.8 kg |
| Packaging content |
|---|
| Mouse included |
No |
| Keyboard included |
No |
| Keyboard backlit |
No |
| Numeric keypad |
No |
| Power cable length |
1.5 m |
| Cables included |
AC |
| VESA mount included |
No |
| Screws included |
No |
| Manual |
Yes |
| General |
|---|
| Product family |
Pro |
| Logistics data |
|---|
| Dangerous goods |
No |
| Display |
|---|
| Display included |
No |
| Technical details |
|---|
| Statement of conformance & platform certificate included |
Yes |
| Other features |
|---|
| TV tuner integrated |
No |
| Warranty period |
3 year(s) |
| Locale |
English |
| Built-in microphone |
No |
