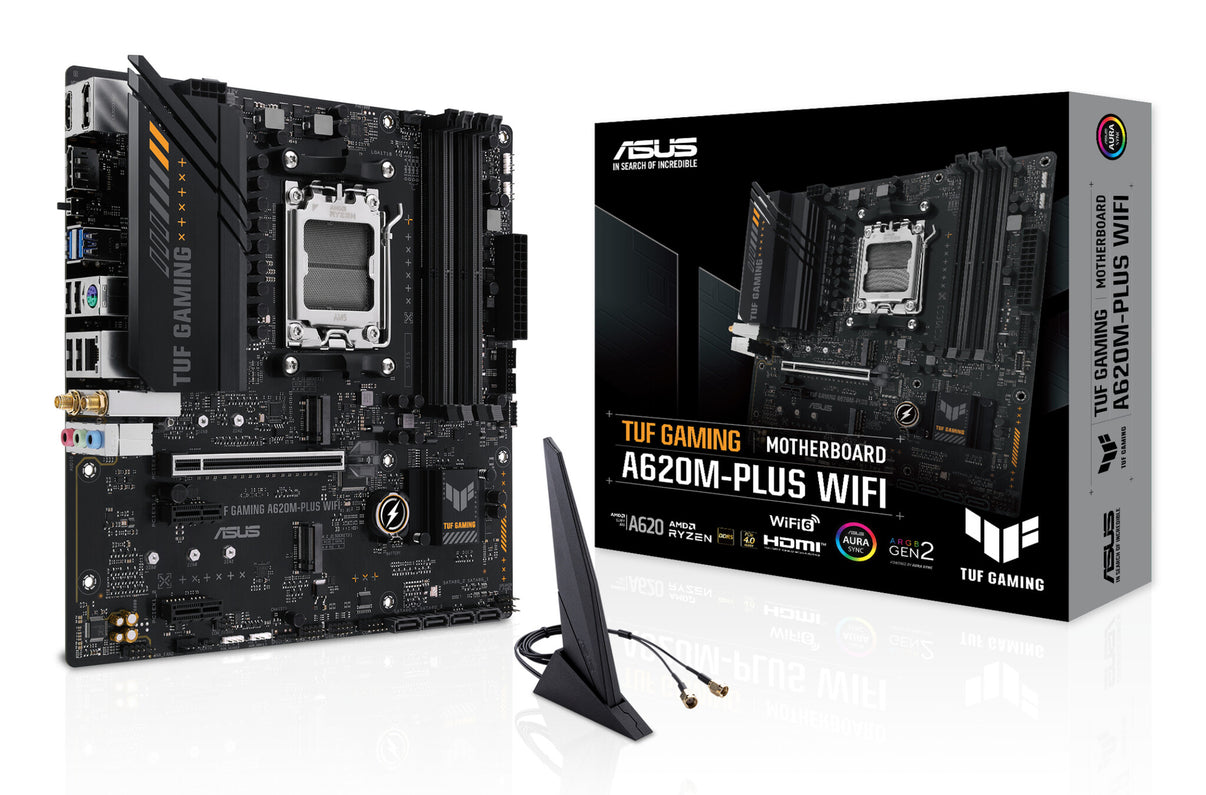

ASUS TUF GAMING A620M-PLUS WIFI AMD A620 Socket AM5 micro ATX

Regular price £122.95 GBP
Tax included.
SKU: 90MB1F00-M0EAY0

Stock Adequate!Ready to ship

Pairs well with

ASUS TUF GAMING A620M-PLUS WIFI AMD A620 Socket AM5 micro ATX
£122.95 GBP
£122.95 GBP

Payment and security

  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Maestro
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa
  • AMD Socket AM5 AMD Ryzen 7000 Series
  • PC micro ATX AMD A620 7.1 channels
  • DDR5-SDRAM 4 Maximum internal memory: 128 GB
  • HDD & SSD M.2, SATA III RAID support Number of storage drives supported: 6
  • BIOS type: UEFI AMI 256 Mbit
  • 2.5 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet Wi-Fi Wi-Fi 6 (802.11ax) Bluetooth 5.3



Processor
Processor manufacturer AMD
Processor socket Socket AM5
Compatible processor series AMD Ryzen 7000 Series
Memory
Supported memory types DDR5-SDRAM
Number of memory slots 4
Memory channels Dual-channel
ECC сompatibility ECC & Non-ECC
Supported memory clock speeds 4800,5000,5200,5400,5600,5800,6000,6200,6400 MHz
Maximum internal memory 128 GB
Unbuffered memory Yes
Storage controllers
Supported storage drive types HDD & SSD
Supported storage drive interfaces M.2, SATA III
Number of storage drives supported 6
Number of HDDs supported 4
RAID support Yes
RAID levels 0, 1, 10
Graphics
On-board graphics card No
Internal I/O
USB 2.0 connectors 2
USB 3.2 Gen 1 (3.1 Gen 1) connectors 2
Number of SATA III connectors 4
S/PDIF out connector Yes
Front panel audio connector Yes
ATX Power connector (24-pin) Yes
CPU fan connector Yes
Number of chassis fan connectors 2
EPS power connector (8-pin) Yes
12V power connector Yes
Number of COM connectors 1
RGB LED pin header Yes
Rear panel I/O ports
USB 2.0 ports quantity 4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 2
Ethernet LAN (RJ-45) ports 1
PS/2 ports quantity 1
HDMI ports quantity 1
DisplayPorts quantity 2
Headphone outputs 1
Microphone in Yes
Network
Ethernet LAN Yes
Ethernet interface type 2.5 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet
Wi-Fi Yes
Top Wi-Fi standard Wi-Fi 6 (802.11ax)
Wi-Fi standards 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Bluetooth Yes
Bluetooth version 5.3
Features
Component for PC
Motherboard form factor micro ATX
Motherboard chipset family AMD
Motherboard chipset AMD A620
Audio output channels 7.1 channels
Cooling type Passive
Windows operating systems supported Windows 10 x64, Windows 11
Expansion slots
PCI Express x1 (Gen 3.x) slots 2
PCI Express x16 (Gen 4.x) slots 1
Number of M.2 (M) slots 2
BIOS
BIOS type UEFI AMI
BIOS memory size 256 Mbit
Packaging data
Package width 275 mm
Package depth 275 mm
Package height 67.5 mm
Package weight 920 g
Weight & dimensions
Width 244 mm
Depth 244 mm
Height 50 mm
Other features
Weight 800 g
