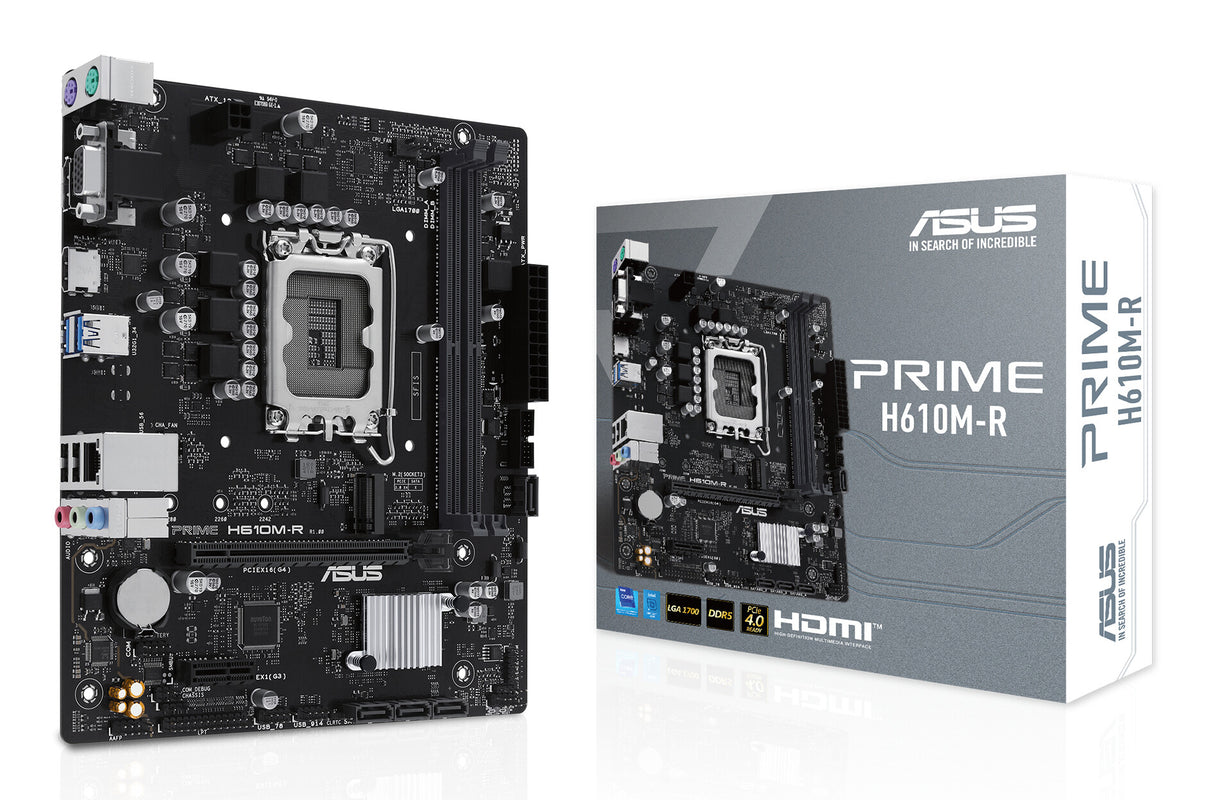

ASUS PRIME H610M-R-SI Intel H610 LGA 1700 micro ATX

£71.95 GBP
Tax included.
SKU: 90MB1GL0-M0ECY0

Stock Adequate！Ready to ship

Pairs well with

ASUS PRIME H610M-R-SI Intel H610 LGA 1700 micro ATX
£71.95 GBP
£71.95 GBP

Payment and security

  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Maestro
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa
  • Intel LGA 1700 Intel® Celeron®, Intel® Pentium® Gold, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9
  • PC micro ATX Intel H610 7.1 channels
  • DDR5-SDRAM 2 DIMM Maximum internal memory: 96 GB
  • HDD & SSD M.2, SATA III Number of storage drives supported: 5
  • BIOS type: UEFI AMI 128 Mbit
  • Gigabit Ethernet
LGA 1700, Intel H610 Chipset, 2 x DDR5-SDRAM up to 96GB, LAN, 1 x RJ-45, 4 x SATA III, 1 x M.2(M), UEFI AMI, Micro ATX
Processor
Processor manufacturer Intel
Processor socket LGA 1700
Compatible processor series Intel® Celeron®, Intel® Pentium® Gold, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9
Supported processor sockets LGA 1700
Memory
Supported memory types DDR5-SDRAM
Number of memory slots 2
Memory slots type DIMM
Memory channels Dual-channel
ECC сompatibility Non-ECC
Supported memory clock speeds 5600,5400,5200,5000,4800 MHz
Supported memory clock speed (max) 5600 MHz
Maximum internal memory 96 GB
Unbuffered memory Yes
Storage controllers
Supported storage drive types HDD & SSD
Supported storage drive interfaces M.2, SATA III
Number of storage drives supported 5
Number of HDDs supported 4
Graphics
Parallel processing technology support Not supported
Internal I/O
USB 2.0 connectors 2
USB 3.2 Gen 1 (3.1 Gen 1) connectors 1
Number of SATA III connectors 4
Audio connector Yes
Front panel audio connector Yes
ATX Power connector (24-pin) Yes
CPU fan connector Yes
Number of chassis fan connectors 1
12V power connector Yes
TPM connector Yes
Number of COM connectors 1
Rear panel I/O ports
USB 2.0 ports quantity 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 2
Ethernet LAN (RJ-45) ports 1
PS/2 ports quantity 2
VGA (D-Sub) ports quantity 1
HDMI ports quantity 1
DisplayPorts quantity 1
Line-in Yes
Headphone outputs 1
Microphone in Yes
Network
Ethernet LAN Yes
Ethernet interface type Gigabit Ethernet
Wi-Fi No
Top Wi-Fi standard Not available
Features
Component for PC
Motherboard form factor micro ATX
Motherboard chipset family Intel
Motherboard chipset Intel H610
Audio output channels 7.1 channels
Windows operating systems supported Windows 10 x64, Windows 11 x64
Expansion slots
PCI Express x1 (Gen 3.x) slots 1
PCI Express x16 (Gen 4.x) slots 1
Number of M.2 (M) slots 1
BIOS
BIOS type UEFI AMI
BIOS memory size 128 Mbit
Packaging data
Package width 246 mm
Package depth 223 mm
Package height 50 mm
Package weight 680 g
Weight & dimensions
Width 226 mm
Depth 195 mm
Height 36.5 mm
Packaging content
Cables included SATA
Other features
Weight 437 g
