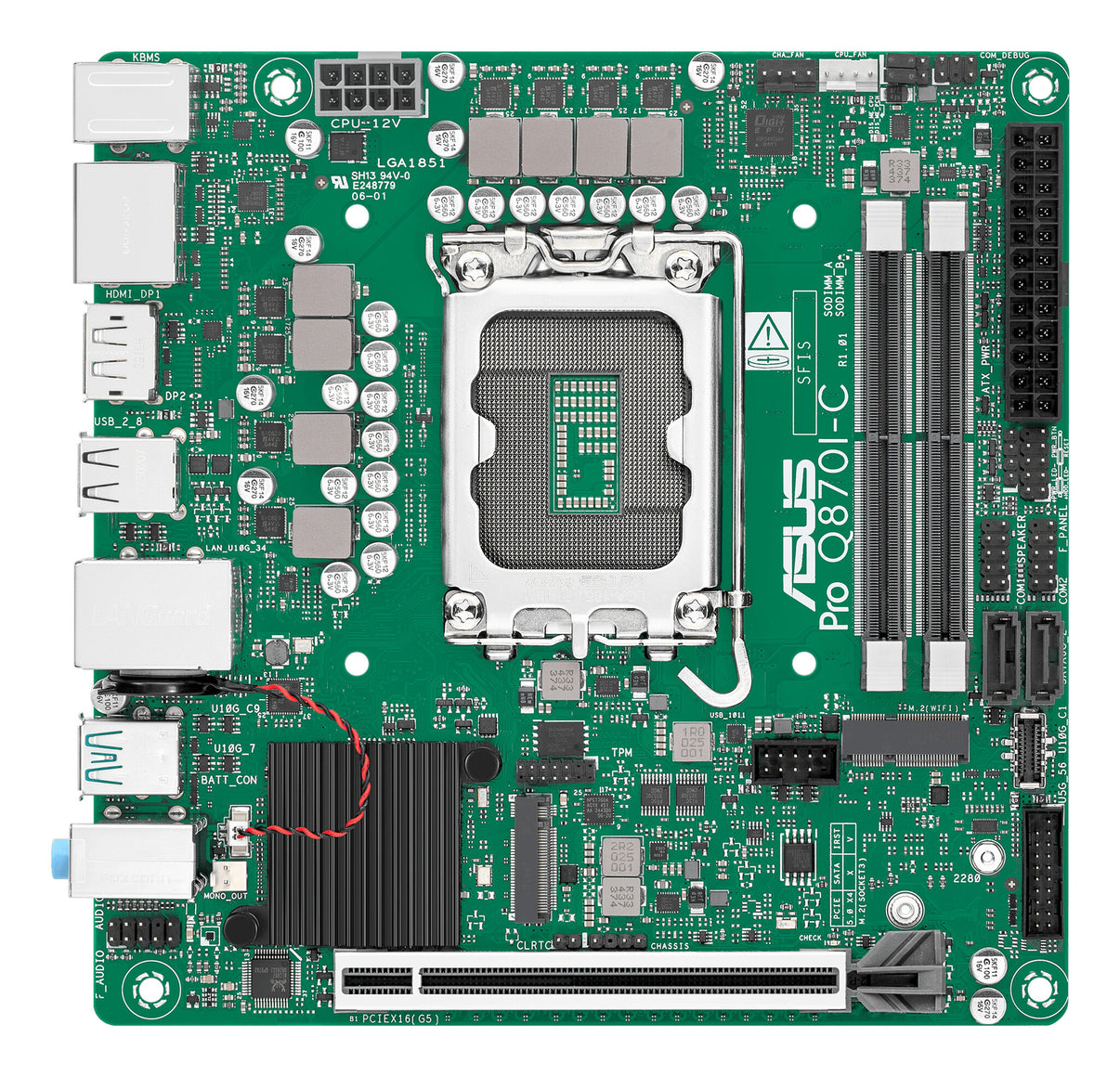

ASUS PRO Q870I-C-CSM Intel® Q870 LGA 1851 (Socket V1) mini ITX

• Ready for Advanced AI PCs: Designed for the future of AI computing, with the power and connectivity needed for demanding AI applications
• Intel® LGA 1851 Socket: Ready for Intel® Core™ Ultra Processors (Series 2)
• ASUS CSM Program: A stable motherboard supply, end-of-life notifications, and IT software for business motherboards
• ASUS Control Center Express: Integrated IT monitoring and management software that simplifies enterprise-level system administration
• Enhanced System Security: Boot defender with NIST SP800-193 compliance, a self-recovering BIOS, and TPM to safeguard PCs
• Consistent and Reliable Performance: High-quality components and rigorous testing to help ensure durability in harsh environments
• Efficient Management and Customization: An event log and commercial BIOS kit to enable easy maintenance
• Better Serviceability: Q-LED Core diagnostic display and COM debug header to facilitate building and support processes
• Ultrafast Connectivity: PCIe 5.0, DDR5 SO-DIMM slots , rear and front USB 10Gbps Type-C®
• DIY Friendly Design: SafeSlot, Dual DIMM clips, Box headers

---

Intel Q870, 2 x SO-DIMM slots, max. 128GB, DDR5, Intel I219LM 1Gb Ethernet, 256 Mb Flash ROM, Mini-ITX

---

Mini-ITX Q870 business motherboard with Intel® vPro support and enhanced security, reliability and manageability
ASUS Pro business motherboards provide enhanced features to smooth your IT operations, including comprehensive system protection, 24/7 stability and reliability and an improved management suite for easier customization. Known as the world's biggest and best-known motherboard brand, ASUS provides world-class after-sales service and guaranteed long-term availability to maximize your investment over the product life cycle and offers a high-quality, TCO-optimized solution for your business computing-needs.

---

Processor
Processor manufacturer	Intel
Processor socket	LGA 1851 (Socket V1)
Compatible processor series	Intel Core Ultra (Series 2)

Memory
Supported memory types	DDR5-SDRAM
Number of memory slots	2
Memory slots type	SO-DIMM
Memory channels	Dual-channel
ECC сompatibility	Non-ECC
Supported memory clock speed (max)	6400 MHz
Maximum internal memory	128 GB
Unbuffered memory	Yes

Storage controllers
Supported storage drive types	HDD & SSD
Supported storage drive interfaces	M.2, SATA III
Number of storage drives supported	3
Number of HDDs supported	2

Graphics
Parallel processing technology support	Not supported

Internal I/O
USB 2.0 connectors	1
USB 3.2 Gen 1 (3.1 Gen 1) connectors	1
USB 3.2 Gen 2 (3.1 Gen 2) connectors	1
Number of SATA III connectors	2
Front panel audio connector	Yes
ATX Power connector (24-pin)	Yes
CPU fan connector	Yes
Number of CPU fan connectors	1
Number of chassis fan connectors	1
EPS power connector (8-pin)	Yes
12V power connector	Yes
Number of COM connectors	2

Rear panel I/O ports
USB 2.0 ports quantity	2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	3
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
Ethernet LAN (RJ-45) ports	1
PS/2 ports quantity	2
HDMI ports quantity	1
DisplayPorts quantity	2
Microphone in	Yes

Network
Ethernet LAN	Yes
Ethernet interface type	Fast Ethernet, Gigabit Ethernet
LAN controller	Intel WGI219LM
Wi-Fi	No

Features
Component for	PC
Motherboard form factor	mini ITX
Motherboard chipset family	Intel
Motherboard chipset	Intel® Q870
Audio output channels	7.1 channels
Product colour	Multicolour
Windows operating systems supported	Windows 10 x64, Windows 11

Expansion slots
PCI Express x16 (Gen 5.x) slots	1
Number of M.2 (M) slots	1

BIOS
BIOS memory size	256 Mbit

Packaging data
Package width	230 mm
Package depth	185 mm
Package height	60 mm
Package weight	640 g

Weight & dimensions
Width	170 mm
Depth	170 mm
Height	50 mm

Other features
Weight	405 g

---
