ASUS

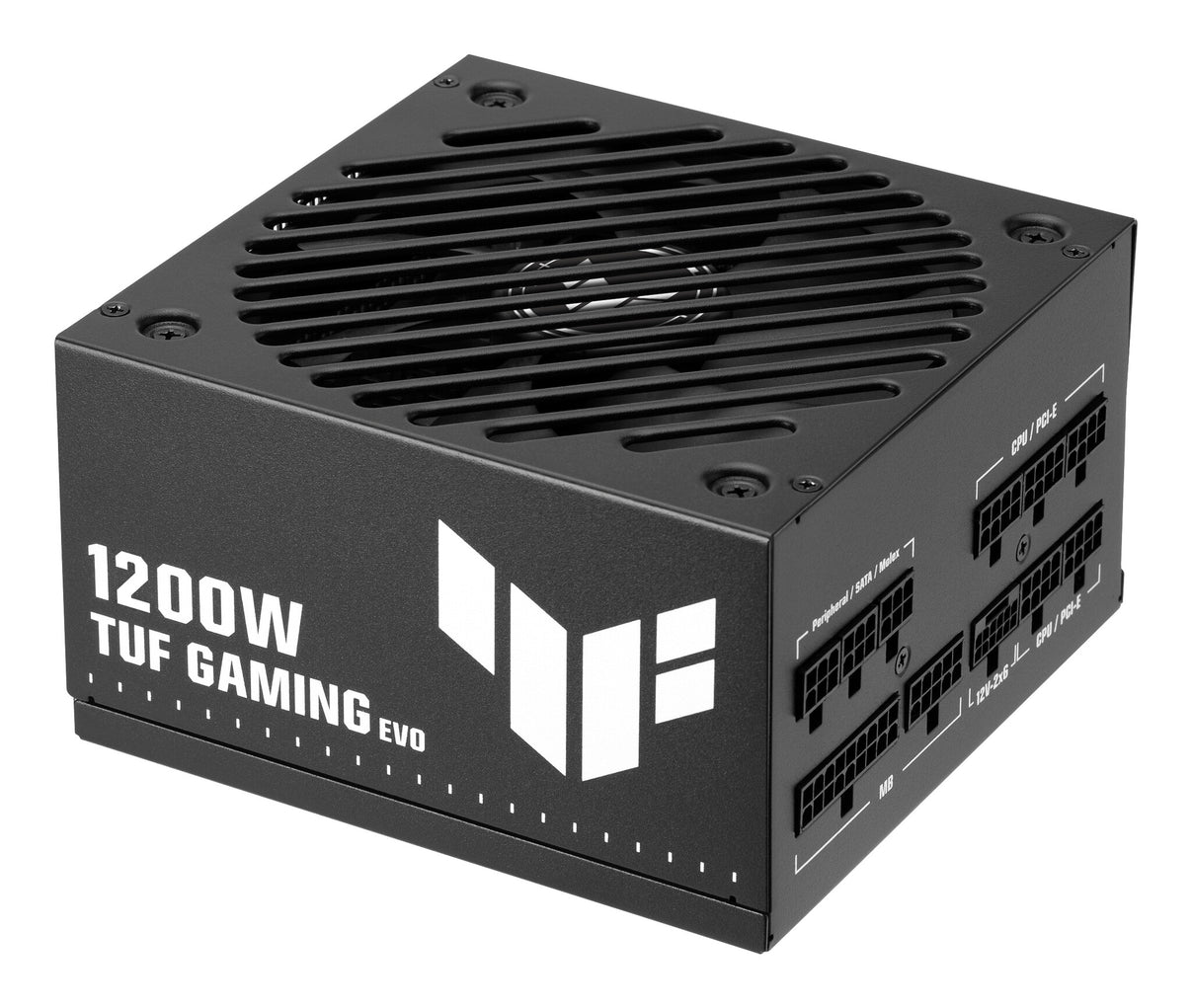

ASUS TUF-GAMING-1200G-EVO power supply unit 1200 W 20+4 pin ATX ATX Black

Regular price £177.95 GBP
Sold out
Tax included.
SKU: 90YE00SD-B0NA00

Out of stock

Pairs well with

ASUS TUF-GAMING-1200G-EVO power supply unit 1200 W 20+4 pin ATX ATX Black
£177.95 GBP
£177.95 GBP

Payment and security

  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Maestro
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa
  • 1200 W 100 - 240 V
  • Motherboard power connector: 20+4 pin ATX
  • PC ATX 80 PLUS Gold
  • Active
  • Black

1200W, ATX12V, ATX 3.1, 80Plus Gold, 100-240Vac

Built For The Long Haul
The ASUS TUF Gaming 1200W Gold EVO packs military-grade strength, a flagship fan design, and PCB protection for efficient, durable power delivery. The result is a PSU that can reliably fuel your rig for years to come.


Power
Total power 1200 W
AC input voltage 100 - 240 V
Power Factor Correction (PFC) type Active
Combined power (+3.3V) 125 W
Combined power (+12V) 1200 W
Combined power (+5V) 125 W
Combined power (-12V) 3.6 W
Combined power (+5Vsb) 15 W
Max output current (+3.3V) 25 A
Max output current (+12V) 100 A
Max output current (+5V) 25 A
Max output current (-12V) 0.3 A
Max output current (+5Vsb) 3 A
Power protection features Over power, Over voltage, Under voltage, Short circuit, Over current
Ports & interfaces
Motherboard power connector 20+4 pin ATX
Motherboard power cable length 61 cm
Number of SATA power connectors 6
SATA power cable length 120,400 mm
Peripheral (Molex) power connectors (4-pin) 3
Peripheral (Molex) power cable length 120,400 mm
PCI Express power connectors (6+2 pin) 3
PCI Express power connectors (16-pin) 1
PCI Express power cable length 50 cm
CPU power connector (4+4 pin) Yes
CPU power cable length 75 cm
Cabling type Fully-Modular
Performance
Purpose PC
Power supply unit (PSU) form factor ATX
80 PLUS certification 80 PLUS Gold
ATX version 3.1
Mean time between failures (MTBF) 120000 h
Design
Product colour Black
Cooling type Active
Number of fans 1 fan(s)
On/off switch Yes
Certificates
Compliance certificates RoHS
Weight & dimensions
Width 150 mm
Depth 150 mm
Height 86 mm
Weight 1.87 kg
Packaging data
Package width 282 mm
Package depth 182 mm
Package height 127 mm
Package weight 3.32 kg
Package type Box
