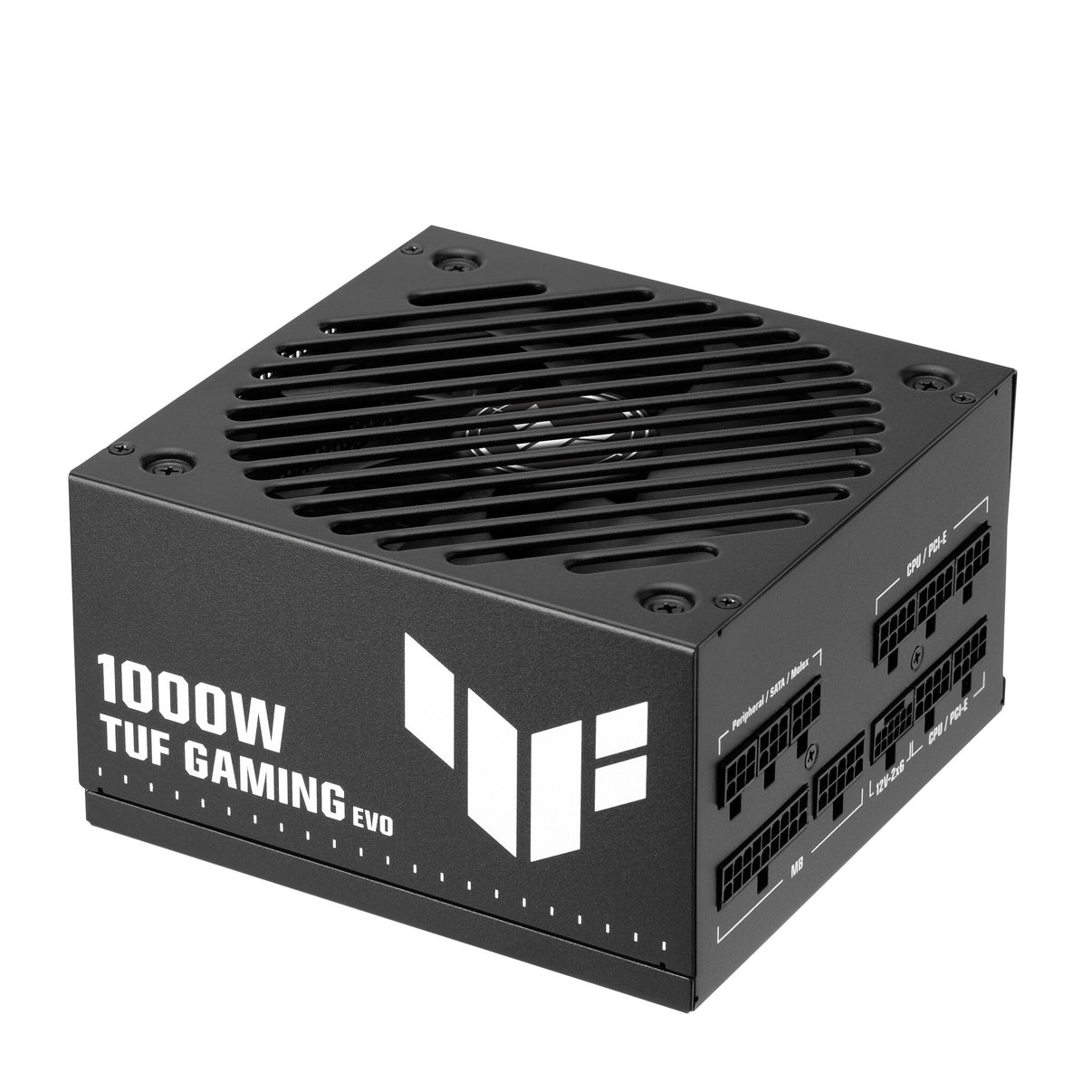

ASUS TUF Gaming 1000W Gold EVO power supply unit 20+4 pin ATX ATX Black

• 1000 W 100 - 240 V
• Motherboard power connector: 20+4 pin ATX
• PC ATX 80 PLUS Gold
• Active 13.5 cm
• Black

---

TUF Gaming 1000W Gold EVO Gaming Power Supply (1000 Watt, Dual Ball Bearing Fan, ATX 3.1 & PCIe 5.1 Compatible, 80 Plus Gold Certified, Etched Cables, Black)

---

Built For The Long Haul
The ASUS TUF Gaming 1000W Gold EVO packs military-grade strength, a flagship fan design, and PCB protection for efficient, durable power delivery. The result is a PSU that can reliably fuel your rig for years to come.

Premium Durability

Military-Grade Capacitors
Engineered for exceptional durability, the TUF Gaming Gold EVO series features TUF 5K black metallic capacitors, offering a 52% wider temperature tolerance and up to a 2.5X longer lifespan than standard capacitors.

Latest Standards

ATX 3.1 & PCIe 5.1 Compatible
The TUF Gaming Gold EVO series meets the stringent requirements of the ATX 3.1 standard and supports PCIe 5.1 graphics cards. It supports total power excursions up to twice the rated power and graphics card power excursions up to three times the rated power, helping to ensure rock-solid stability for your PC.

EFFICIENCY CERTIFICATION

80 PLUS Gold Efficiency
The TUF Gaming Gold EVO series achieves 80 PLUS Gold certifications by leveraging low-ESR Japanese capacitors that deliver stability and efficiency, leading to improved power consumption, heat generation, acoustics and reliability.

PREMIUM ETCHED CABLES
Made from a pliable premium material, these etched cables are easily flexible during installation, and they operate at temperatures 50°C lower than the safety limit when routed for cable management.

PROTECTION
To make sure the entire system can operate safely and stably at all times, this power supply comes with a number of protection mechanisms to give you the best peace of mind.

---

Power
Total power	1000 W
AC input voltage	100 - 240 V
Power Factor Correction (PFC) type	Active
Combined power (+3.3V)	125 W
Combined power (+12V)	1000 W
Combined power (+5V)	125 W
Combined power (-12V)	3.6 W
Combined power (+5Vsb)	15 W
Max output current (+3.3V)	25 A
Max output current (+12V)	83.33 A
Max output current (+5V)	25 A
Max output current (-12V)	0.3 A
Max output current (+5Vsb)	3 A
Power protection features	Over current, Over power, Over voltage, Short circuit, Under voltage, Overheating

Ports & interfaces
Motherboard power connector	20+4 pin ATX
Motherboard power cable length	61 cm
Number of SATA power connectors	6
Peripheral (Molex) power connectors (4-pin)	3
PCI Express power connectors (6+2 pin)	3
PCI Express power connectors (16-pin)	1
CPU power connector (4+4 pin)	Yes
Cabling type	Fully-Modular

Performance
Purpose	PC
Power supply unit (PSU) form factor	ATX
80 PLUS certification	80 PLUS Gold
ATX version	3.1
Bearing technology	Ball bearing
Mean time between failures (MTBF)	120000 h

Design
Product colour	Black
Cooling type	Active
Fan diameter	13.5 cm
Number of fans	1 fan(s)
On/off switch	Yes

General
Product family	TUF Gaming

Certificates
Compliance certificates	RoHS

Packaging content
Cables included	AC, CPU, PCIe, Peripheral (Molex), SATA

Weight & dimensions
Width	150 mm
Depth	150 mm
Height	86 mm
Weight	1.72 kg

Packaging data
Package width	282 mm
Package depth	182 mm
Package height	127 mm
Package weight	3.17 kg
Package type	Box

Logistics data
Warranty period	8 year(s)

---

• Quick Start Guide
