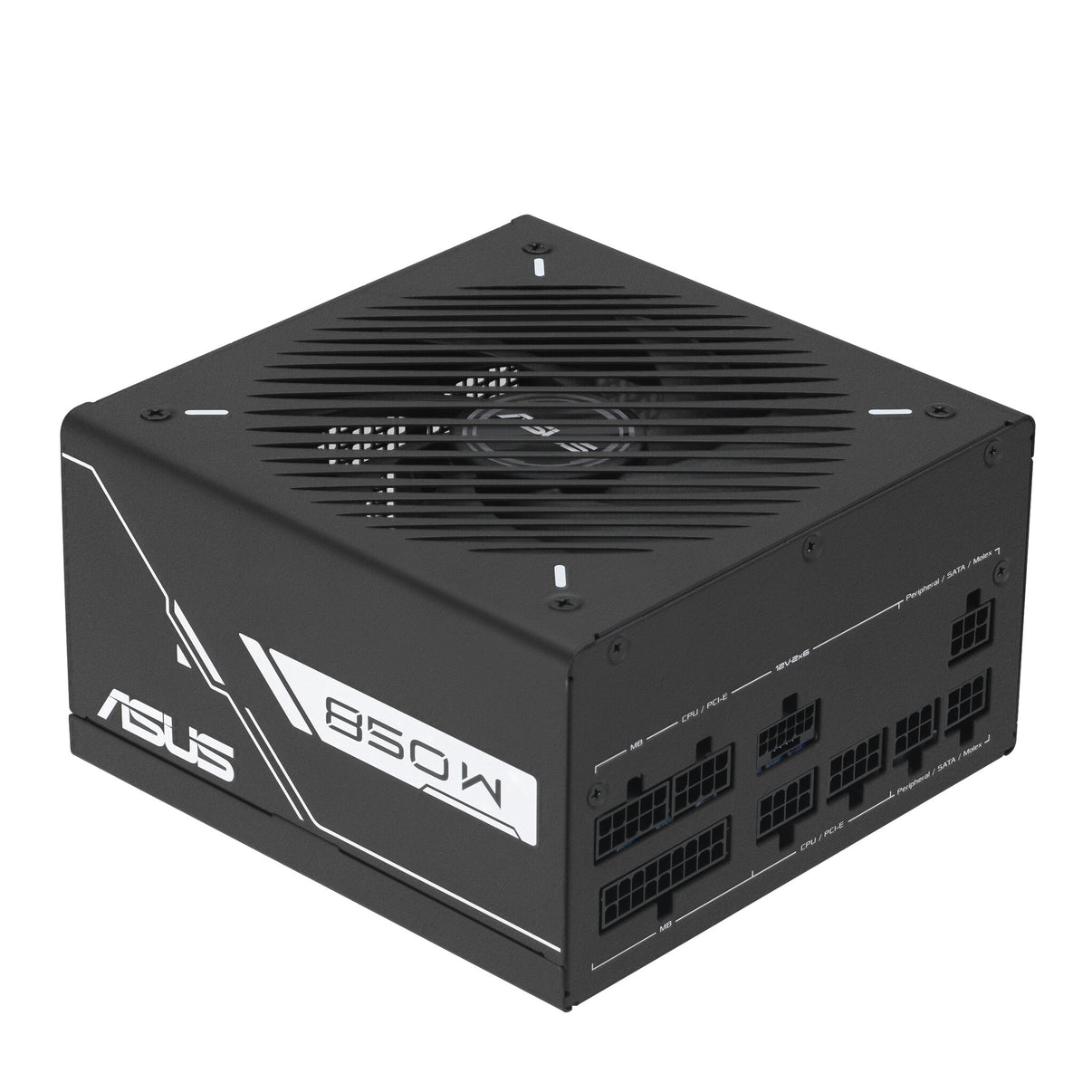

ASUS Prime -850G power supply unit 850 W 20+4 pin ATX ATX Black

• 80 Plus & Cybenetics Gold certified: the result of low-ESR capacitors and other premium components.
• ATX 3.1 Compatible: Prime Gold series is compliant with ATX 3.1 guidelines and bundled with a 16-pin PCIe® cable that can send up to 600 watts of power to PCIe 5.1 graphics cards.
• Dual-ball fan bearings that can last up to twice as long as sleeve bearing designs.
• Fully modular etched cables keep your rig neat and tidy.

---

Prime 850W Gold Black Edition PSU brings efficient and durable power delivery to all-round PCs, and gaming rigs

---

Prime 850W Gold Black Edition
STELLAR
PERFORMANCE
A Prime Gold Black Edition power supply unit in a blue, space vibe background.
With 80 PLUS and Cybenetics Gold certification, Dual-ball fan bearings, and an 8-year warranty, the ASUS Prime series PSU brings efficient and durable power delivery to high-performance workstations, all-round PCs, and gaming rigs.

---

Power
Total power	850 W
AC input voltage	100 - 240 V
Power Factor Correction (PFC) type	Active
Combined power (+3.3V)	110 W
Combined power (+12V)	846 W
Combined power (+5V)	110 W
Combined power (-12V)	3.6 W
Combined power (+5Vsb)	12.5 W
Max output current (+3.3V)	20 A
Max output current (+12V)	70.5 A
Max output current (+5V)	20 A
Max output current (-12V)	0.3 A
Max output current (+5Vsb)	2.5 A
Power protection features	Overheating, Over current, Over power, Under voltage, Over voltage, Short circuit

Ports & interfaces
Motherboard power connector	20+4 pin ATX
Motherboard power cable length	60 cm
Number of SATA power connectors	5
SATA power cable length	400,120 mm
Peripheral (Molex) power connectors (4-pin)	4
Peripheral (Molex) power cable length	400,150 mm
PCI Express power connectors (6+2 pin)	3
PCI Express power connectors (16-pin)	1
PCI Express power cable length	60 cm
CPU power connector (4+4 pin)	Yes
PCI Express connector	Yes
Cabling type	Fully-Modular

Performance
Purpose	PC
Power supply unit (PSU) form factor	ATX
80 PLUS certification	80 PLUS Gold
ATX version	3.1
Bearing technology	DBB
Mean time between failures (MTBF)	120000 h

Design
Product colour	Black
Cooling type	Active
Number of fans	1 fan(s)
Fan location	Top
Illumination	No
On/off switch	Yes

General
Product family	Prime

Packaging content
Cables included	CPU, PCIe, Peripheral (Molex), SATA

Weight & dimensions
Width	150 mm
Depth	150 mm
Height	86 mm
Weight	1.48 kg

Packaging data
Package width	320 mm
Package depth	213 mm
Package height	113 mm
Package weight	2.88 kg
Package type	Box

---
