ASUS

ASUS ROG -THOR-1200P3-WHITE-GAMING-E power supply unit 1200 W 24-pin ATX ATX

Regular price £389.95 GBP
Sold out
Tax included.
SKU: 90YE00V9-B0NA00

Out of stock

Pairs well with

ASUS ROG -THOR-1200P3-WHITE-GAMING-E power supply unit 1200 W 24-pin ATX ATX
£389.95 GBP
£389.95 GBP

Payment and security

  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Maestro
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa
  • 1200 W 100 - 240 V
  • Motherboard power connector: 24-pin ATX
  • PC ATX 80 PLUS Platinum
  • Active
  • White

1200W, 100-240Vac, ATX12V, ATX 3.1, ARGB, 2.37 kg

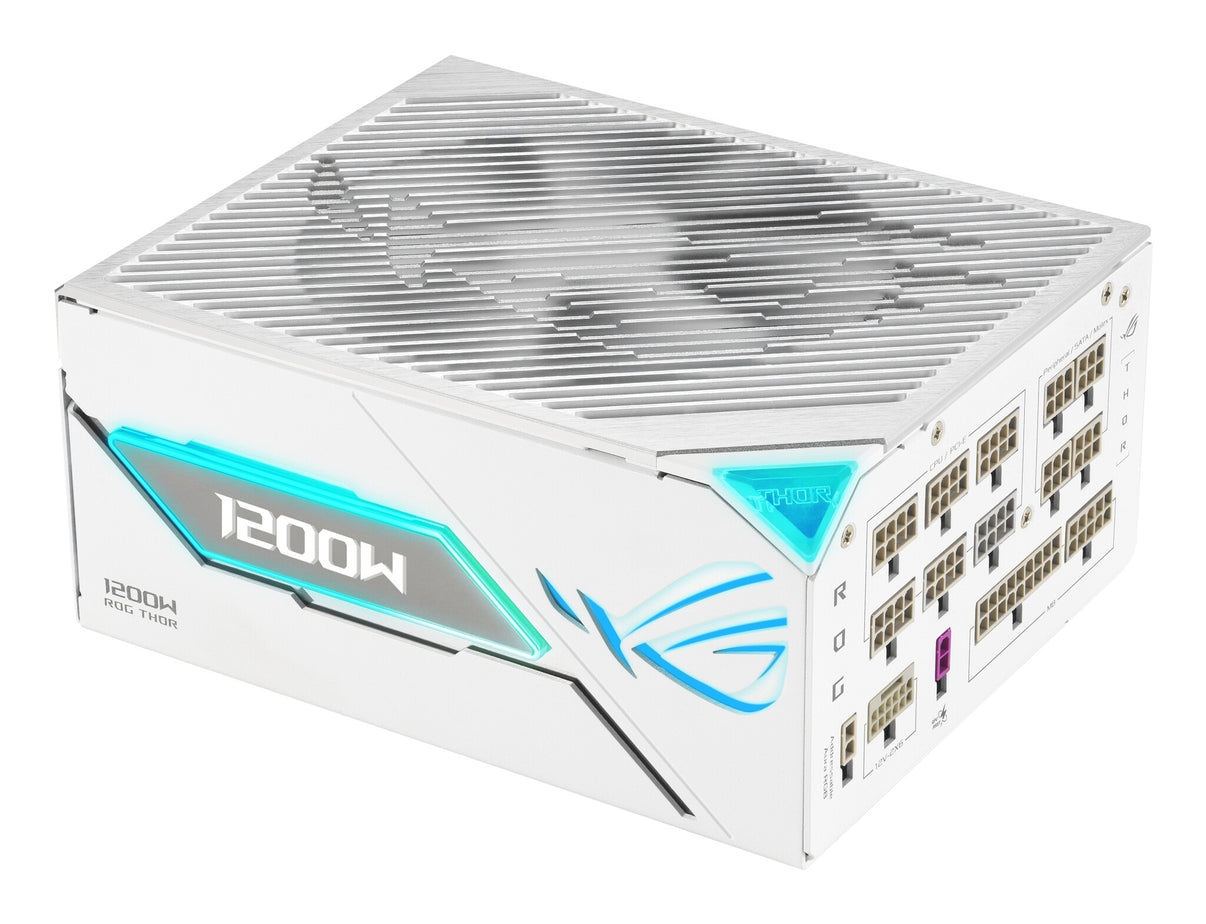

ROG Thor 1200W Platinum III White
Ultimate Power. Unmatched Stability

The ROG Thor 1200W Platinum III White delivers the power and stability demanded by gamers. A next-gen GaN MOSFET boosts efficiency, while GPU-First voltage sensing with a patented intelligent stabilizer ensures stable, top-tier performance. Turbo Mode maximizes cooling for overclocking and demanding workloads.

The ROG Thor 1200W Platinum III White also includes the ROG Equalizer, a patented 12V-2x6 PCIe power cable engineered to reduce heat stress and keep cable and connector temperatures well to protect the graphics card. With full ATX 3.1 compliance and a native 12V-2x6 connector, the ROG Thor III Platinum Series ensures your high-end rig has the power to conquer any challenge.

The ROG Thor 1200W Platinum III White retains its signature OLED display, now with magnetic attachment for easy swapping to either side, supporting both fan-up and fan-down installations.


Power
Total power 1200 W
AC input voltage 100 - 240 V
Power Factor Correction (PFC) type Active
Combined power (+3.3V) 125 W
Combined power (+12V) 1200 W
Combined power (+5V) 125 W
Combined power (-12V) 3.6 W
Combined power (+5Vsb) 15 W
Max output current (+3.3V) 30 A
Max output current (+12V) 100 A
Max output current (+5V) 25 A
Max output current (-12V) 0.3 A
Max output current (+5Vsb) 3 A
Power protection features Over power, Over voltage, Under voltage, Short circuit, Over current
Ports & interfaces
Motherboard power connector 24-pin ATX
Motherboard power cable length 61 cm
Number of SATA power connectors 7
SATA power cable length 120,400 mm
Peripheral (Molex) power connectors (4-pin) 6
Peripheral (Molex) power cable length 150,400 mm
PCI Express power connectors (6+2 pin) 4
PCI Express power connectors (16-pin) 1
PCI Express power cable length 75 cm
CPU power connector (4+4 pin) Yes
CPU power cable length 100 cm
Cabling type Fully-Modular
Performance
Purpose PC
Power supply unit (PSU) form factor ATX
80 PLUS certification 80 PLUS Platinum
Cybenetics certification Platinum
ATX version 3.1
Mean time between failures (MTBF) 120000 h
Design
Product colour White
Cooling type Active
Number of fans 1 fan(s)
Illumination Yes
On/off switch Yes
General
Product family ROG
Weight & dimensions
Width 190 mm
Depth 150 mm
Height 86 mm
Weight 2.37 kg
Packaging data
Package width 379 mm
Package depth 241 mm
Package height 127 mm
Package type Box
