CORSAIR

Corsair SF1000 power supply unit 1000 W 24-pin ATX ATX Black

£184.95 GBP
Sold out
Tax included.
SKU: CP-9020257-UK

Out of stock

Pairs well with

Corsair SF1000 power supply unit 1000 W 24-pin ATX ATX Black
£184.95 GBP
£184.95 GBP

Payment and security

  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Maestro
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa
  • 80 PLUS Platinum rated efficiency
  • ATX 3.1 compliant, supporting PCIe 5.1
  • Fully modular, Type-5 Micro-Fit PSU connectors
  • 92mm PWM cooling fan with Zero RPM mode

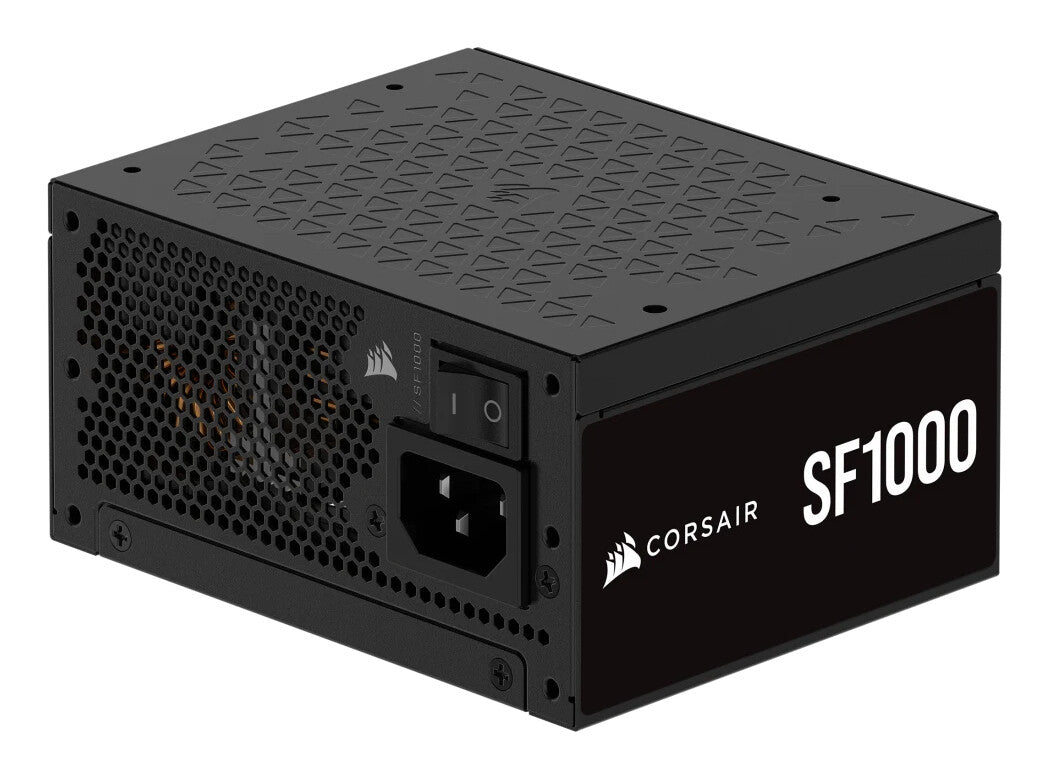

SF Series SF1000 Fully Modular 80 PLUS Platinum SFX Power Supply (UK)

Outfit your next SFF PC with a CORSAIR SF Series 80 PLUS Platinum SFX Power Supply for compact, ATX 3.1 compliant, fully modular Platinum power.

Power
Power protection features Overheating, Over current, Over power, Over voltage, Short circuit
Max output current (+5Vsb) 3 A
Max output current (+5V) 20 A
Max output current (+12V) 83.3 A
Max output current (+3.3V) 20 A
Combined power (+5Vsb) 15 W
Combined power (+5V) 130 W
Combined power (+12V) 1000 W
Combined power (+3.3V) 130 W
Input current 6 - 12 A
AC input frequency 47 - 63 Hz
AC input voltage 100 - 240 V
Total power 1000 W
Ports & interfaces
Cabling type Fully-Modular
ATX power connector (12+4 pin) Yes
PCI Express power connectors (6+2 pin) 4
EPS power connector (4+4 pin) Yes
Number of SATA power connectors 3
Number of PATA power connectors 1
Motherboard power connector 24-pin ATX
Performance
Mean time between failures (MTBF) 100000 h
Bearing technology FDB
Silent mode Yes
ATX version 3.1
80 PLUS certification 80 PLUS Platinum
Power supply unit (PSU) form factor ATX
Purpose PC
Design
On/off switch Yes
Fan location Top
Number of fans 1 fan(s)
Fan diameter 9.2 cm
Cooling type Active
Product colour Black
Packaging content
Cables included AC
Weight & dimensions
Weight 2.3 kg
Height 63.5 mm
Depth 100 mm
Width 125 mm
