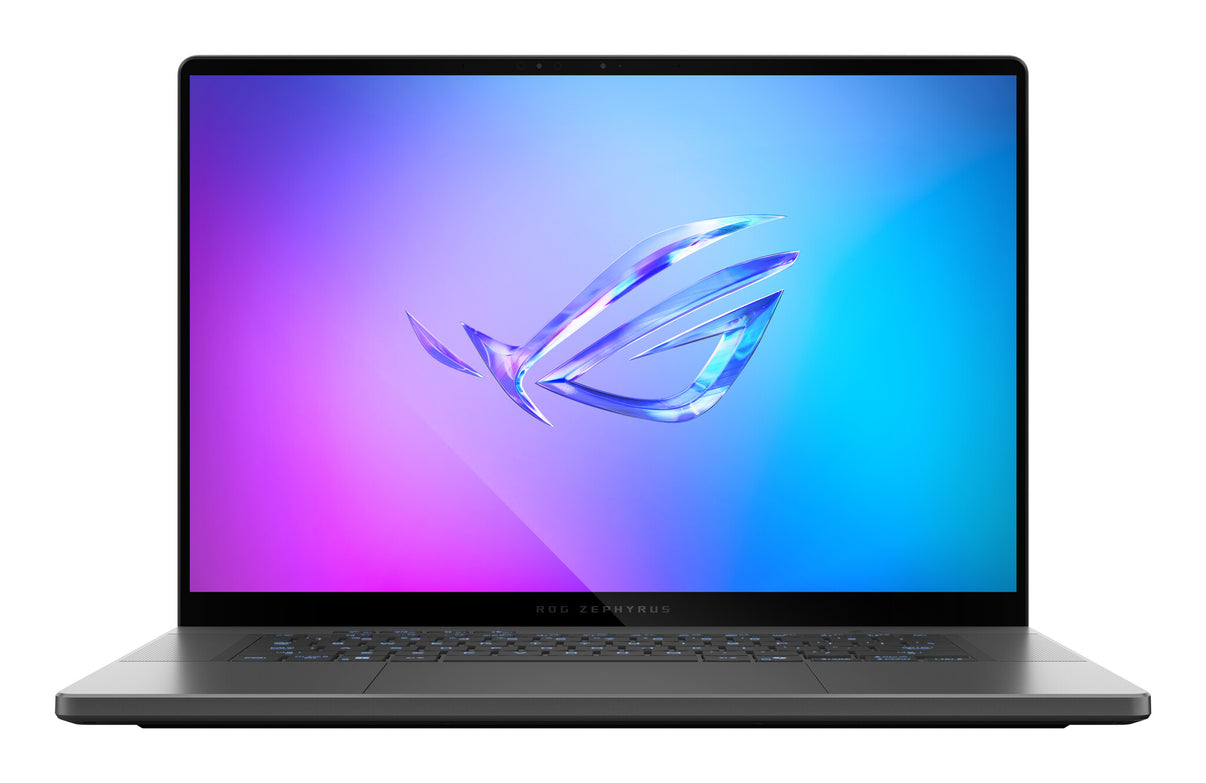

ASUS ROG Zephyrus G16 GU605CW-QR087W Intel Core Ultra 9 285H Laptop 40.6 cm (16") WQXGA 32 GB LPDDR5x-SDRAM 2 TB SSD NVIDIA GeForce RTX 5080 Wi-Fi 7 (802.11be) Windows 11 Home Grey

• Enjoy effortless Windows 11 Home gaming and creating with an Intel® Core™ Ultra 9 processor 285H
• Game and create with an NVIDIA® GeForce RTX 5080 Laptop GPU
• 2.5K OLED 240Hz/0.2ms Nebula Display
• ROG Intelligent Cooling tech, including a vapor chamber*, Tri-Fan Technology*, liquid metal, improved heatpipes and Arc Flow Fans™ 2.0 (vary by sku)
• Ultra slim 1.49cm, 1.85kg 16-inch premium aluminum chassis with unique slash lighting design
• Ample I/O support, USB Type-C with DP 2.1 and PD 3.0 support

---

Intel Core Ultra 9 285H (24MB Cache), 32GB LPDDR5x-SDRAM, 2000GB SSD, 40.6 cm (16") WQXGA 2560 x 1600 OLED, Intel Arc 140T, NVIDIA GeForce RTX 5080 (16GB GDDR7), WLAN, Webcam, Windows 11 Home 64-bit

---

ROG ZEPHYRUS G16 (GU605)

Performance
The Dawn of A New Age
The 2025 Zephyrus G16 and Windows 11 make gaming, creation, and everything in between a breeze. Featuring an Intel® Core™ Ultra 9 processor 285H and an NVIDIA® GeForce RTX™ 5080 Laptop GPU, this 16-inch machine can easily handle the latest games and cutting-edge creative software alike. The Zephyrus G16 can effortlessly transcribe voice notes into text documents, save valuable time during a video render, and play the latest AAA games at blazingly fast refresh rates. The future is here.

---

Design
Product type	Laptop
Product colour	Grey
Colour name	Eclipse Gray
Form factor	Clamshell
Housing material	Aluminium
Market positioning	Gaming

Display
Display diagonal	40.6 cm (16")
Display resolution	2560 x 1600 pixels
Touchscreen	No
HD type	WQXGA
Panel type	OLED
Native aspect ratio	16:10
Display surface	Gloss
Maximum display brightness (HDR)	500 cd/m²
Colour gamut	100%
RGB colour space	DCI-P3
Maximum refresh rate	240 Hz
Contrast ratio (typical)	1000000:1
High Dynamic Range (HDR) supported	Yes
High Dynamic Range (HDR) technology	Dolby Vision

Processor
Processor manufacturer	Intel
Processor family	Intel Core Ultra 9
Processor generation	Intel Core Ultra (Series 2)
Processor model	285H
Processor cores	16
Processor threads	16
Processor boost frequency	5.4 GHz
Performance cores	6
Efficient cores	8
Low Power Efficient-cores	2
Performance-core Max Turbo Frequency	5.4 GHz
Efficient-core Max Turbo Frequency	4.5 GHz
Low Power Efficient-core Max Turbo Frequency	2.5 GHz
Performance-core base frequency	2.9 GHz
Efficient-core base frequency	2.7 GHz
Low Power Efficient-core Base Frequency	1000 MHz
Processor cache	24 MB
Maximum turbo power	115 W
Processor base power	45 W

Neural processor unit (NPU)
Neural processor unit (NPU)	Intel AI Boost
Sparsity support	Yes
Windows Studio effects support	Yes
AI software frameworks supported by NPU	DirectML, OpenVINO, Windows ML, ONNX RT, WebNN
Total processor performance up to	99 TOPs
NPU performance up to	13 TOPs
GPU performance up to	77 TOPs

Memory
Internal memory	32 GB
Internal memory type	LPDDR5x-SDRAM
Memory form factor	On-board
Maximum internal memory	64 GB
Memory channels	Dual-channel

Storage
Total storage capacity	2 TB
Storage media	SSD
Total SSDs capacity	2 TB
Number of SSDs installed	1
SSD capacity	2 TB
NVMe	Yes
SSD interface	PCI Express 4.0
SSD form factor	M.2
Optical drive type	No
Card reader integrated	Yes
Compatible memory cards	SD

Graphics
On-board graphics card	Yes
Discrete graphics card	Yes
Discrete GPU manufacturer	NVIDIA
Discrete graphics card model	NVIDIA GeForce RTX 5080
Discrete graphics card memory	16 GB
Discrete graphics memory type	GDDR7
On-board GPU manufacturer	Intel
On-board graphics card family	Intel Arc Graphics
On-board graphics card model	Intel Arc 140T
NVIDIA G-SYNC	Yes

Audio
Audio system	Dolby Atmos
Number of built-in speakers	4
Number of microphones	3
Built-in microphone	Yes

Camera
Front camera	Yes
Front camera HD type	Full HD
Infrared (IR) camera	Yes

Network
Mobile network connection	No
Top Wi-Fi standard	Wi-Fi 7 (802.11be)
Wi-Fi standards	Wi-Fi 7 (802.11be)
Antenna type	2x2
Bluetooth	Yes
Bluetooth version	5.4

Ports & interfaces
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
HDMI ports quantity	1
HDMI version	2.1
Thunderbolt 4 ports quantity	1
Intel® Thunderbolt 4	Yes
Combo headphone/mic port	Yes
USB Type-C DisplayPort Alternate Mode	Yes

Performance
Repairability index	9.3

Keyboard
Pointing device	Touchpad
Keyboard backlit	Yes
Numeric keypad	No
Keyboard backlit zone	1-zone RGB
Keyboard backlit colour	RGB

Software
Operating system installed	Windows 11 Home
Operating system architecture	64-bit
Trial software	1-month trial for new Microsoft 365 customers. Credit card required. McAfee® 30 days free trial
Bundled software	Xbox Game Pass for PC_3 months (*Terms and exclusions apply. Offer only available in eligible markets for Xbox Game Pass for PC. Eligible markets are determined at activation. Game catalog varies by region, device, and time.)

Battery
Battery technology	Lithium-Ion (Li-Ion)
Number of battery cells	4
Battery capacity	90 Wh
Fast charging	Yes
Fast charging time (50%)	30 min

Power
AC adapter power	240 W
AC adapter frequency	50 - 60 Hz
AC adapter input voltage	100 - 240 V
AC adapter output current	12 A
AC adapter output voltage	20 V
USB Type-C charging port	Yes
USB Power Delivery (USB PD)	Yes

Security
Windows Hello	Yes
Trusted Platform Module (TPM)	Yes
Password protection	Yes
Password protection type	BIOS, User

Weight & dimensions
Weight	1.95 kg
Width	354 mm
Depth	246 mm
Height (front)	1.49 cm
Height (rear)	1.74 cm

General
Product series	Zephyrus G16
Product family	ROG

Packaging content
AC adapter included	Yes

---
